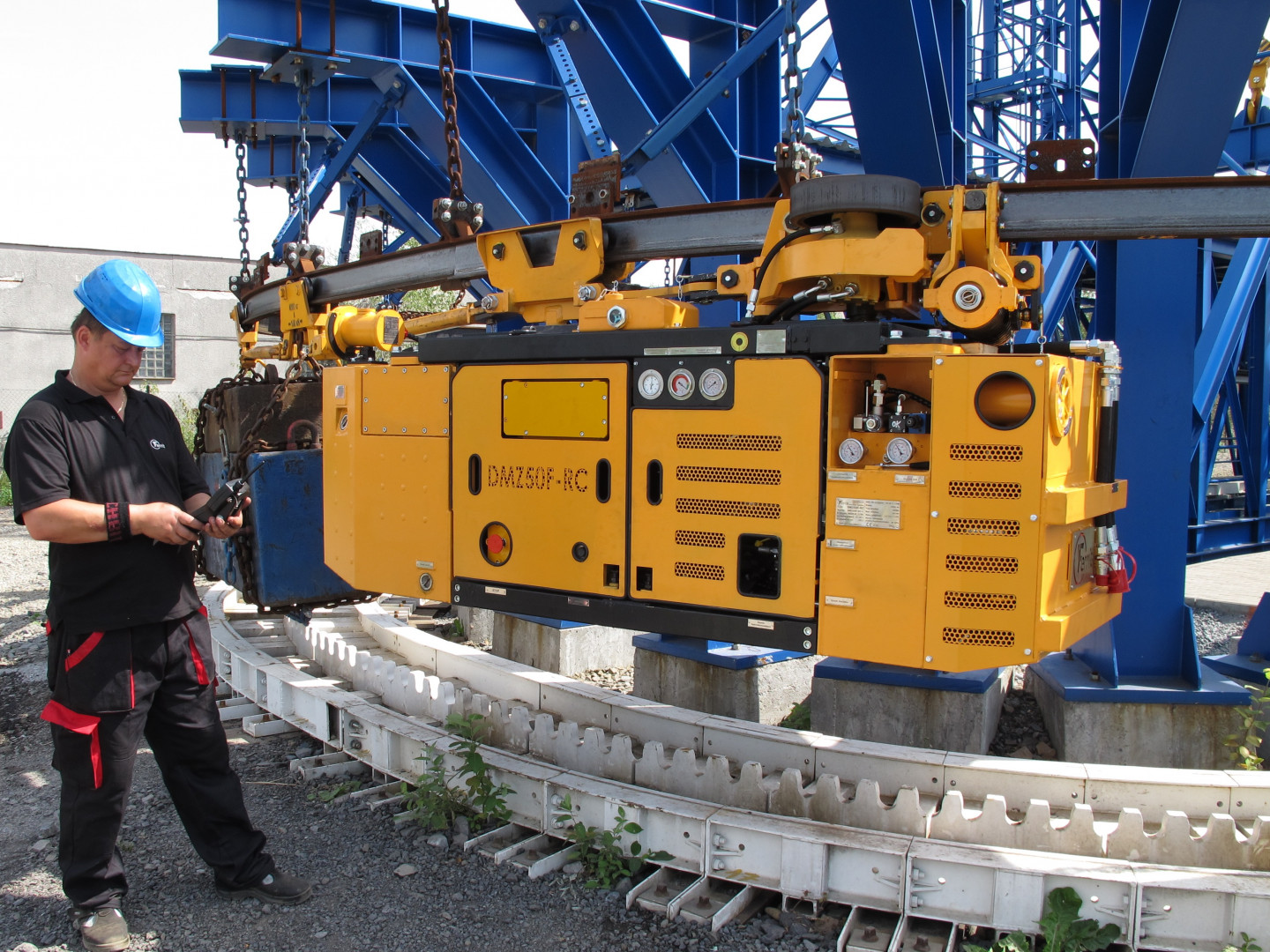

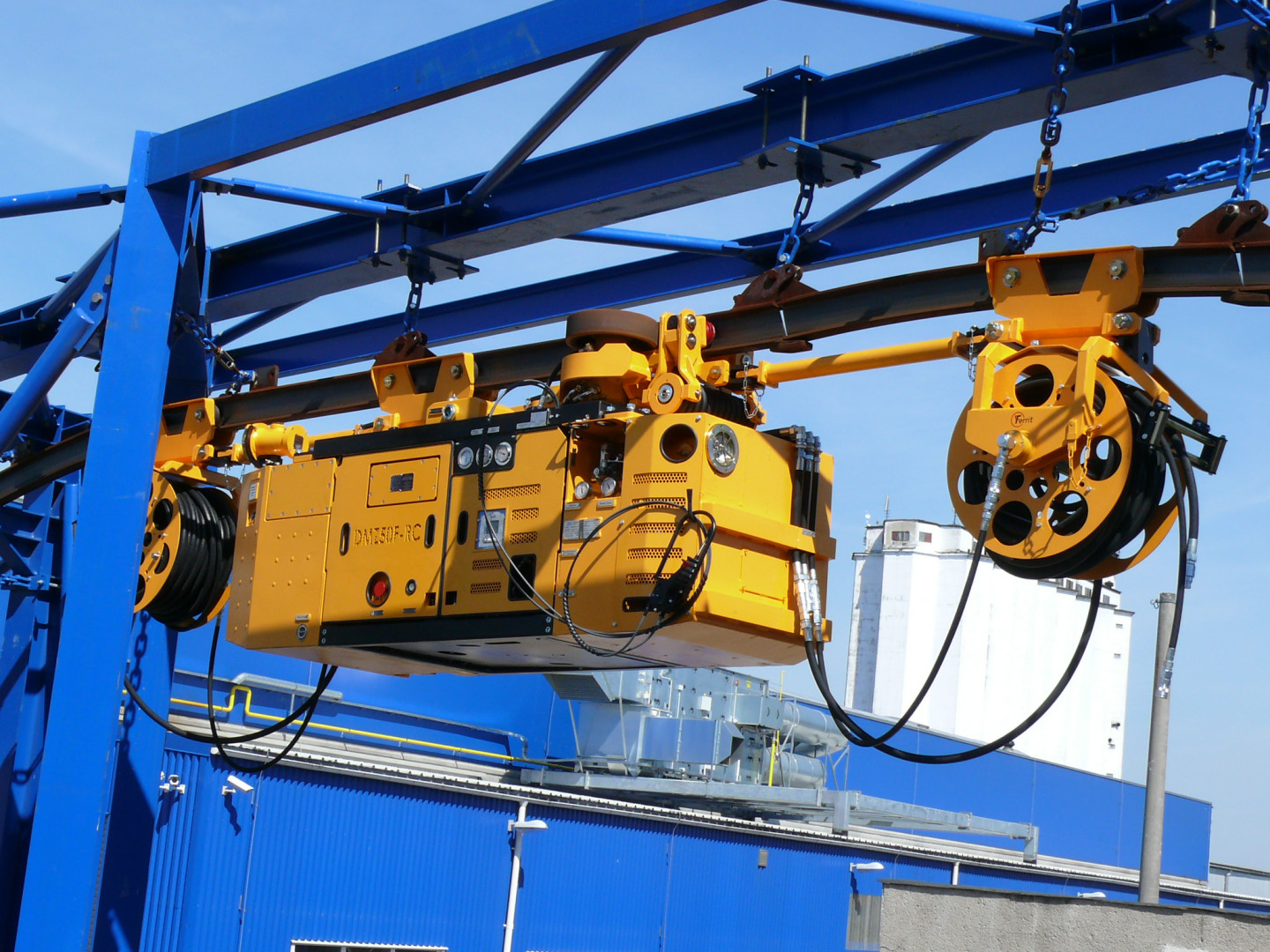

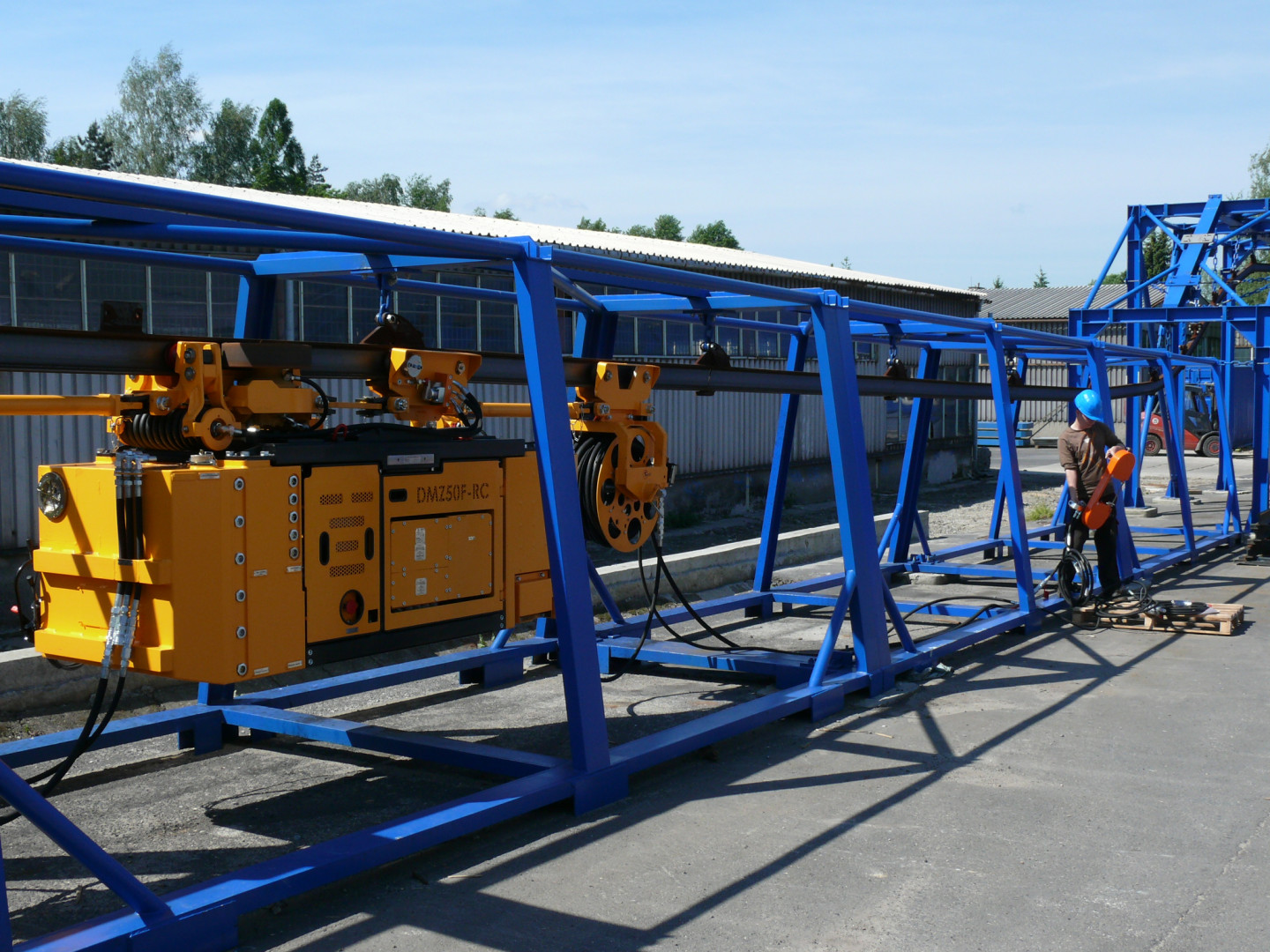

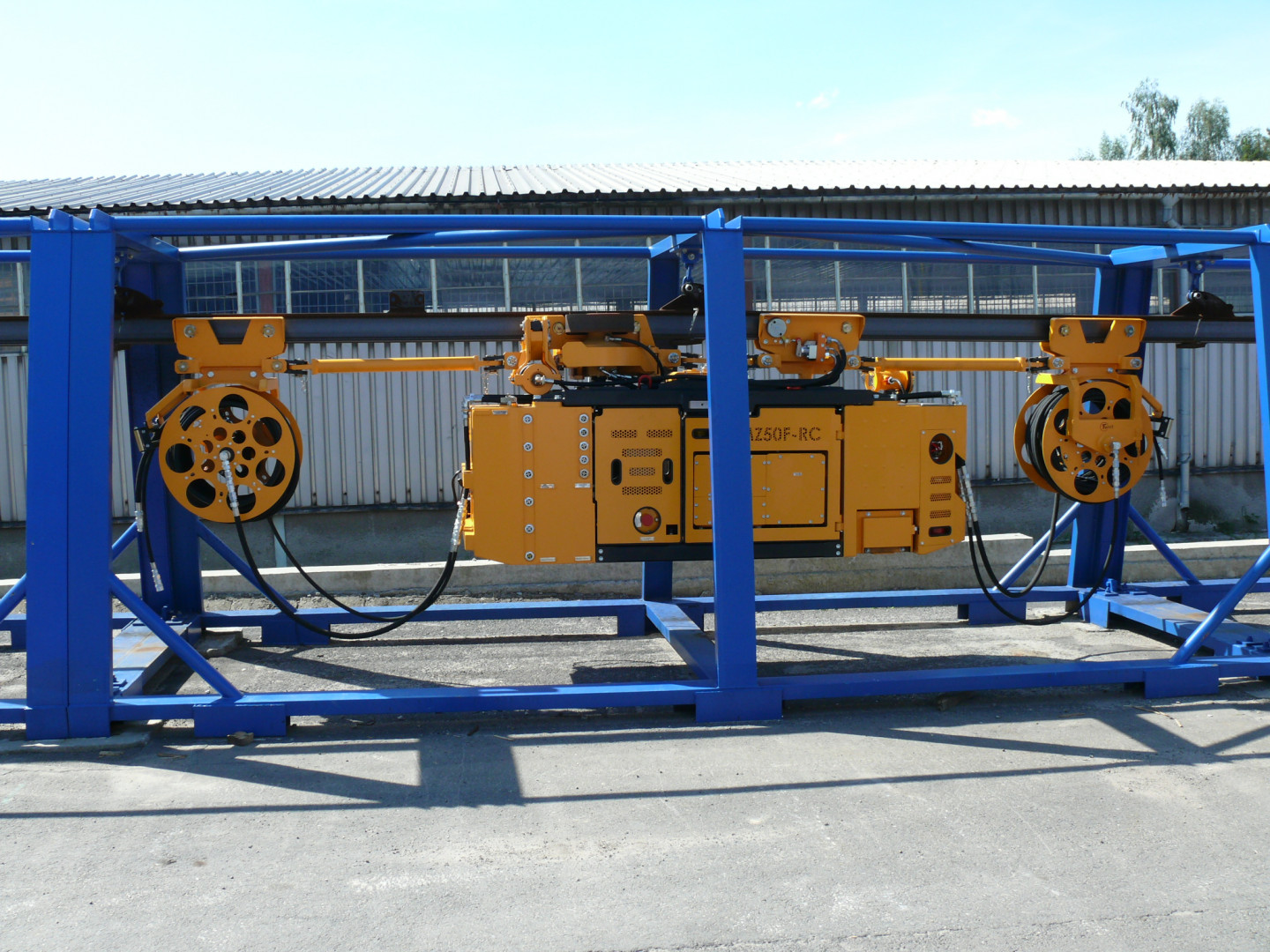

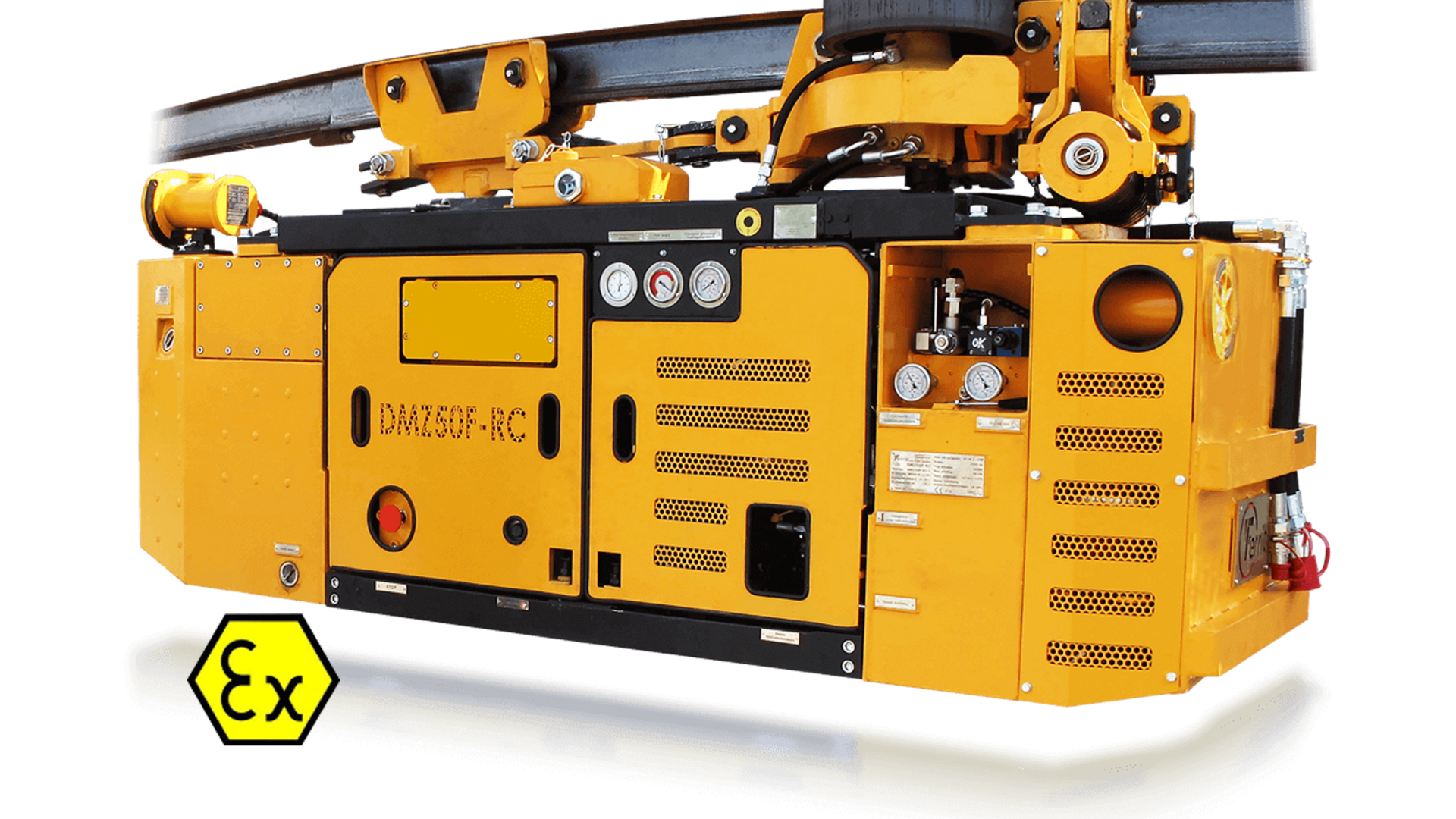

Diesel-hydraulic mining manipulator type DMZ50F-RC is a traction equipment designed for auxiliary handling of train sets on the monorail track in inclines of up to 30°. Its hydraulic unit is used for powering manipulator´s drive or lifting equipment as NZH2/4 and/or other elements of small auxiliary mechanization (bolt drills, impact wrenches, pick hammers, pumps, etc.).
The manipulator could be controlled by a remote control.
|Max. engine power:||36 kW|
|Number of driving units:||1/2|
|Max. speed:||3,2/3,0 km/h|
|Max. traction force:||20/40 kN|
