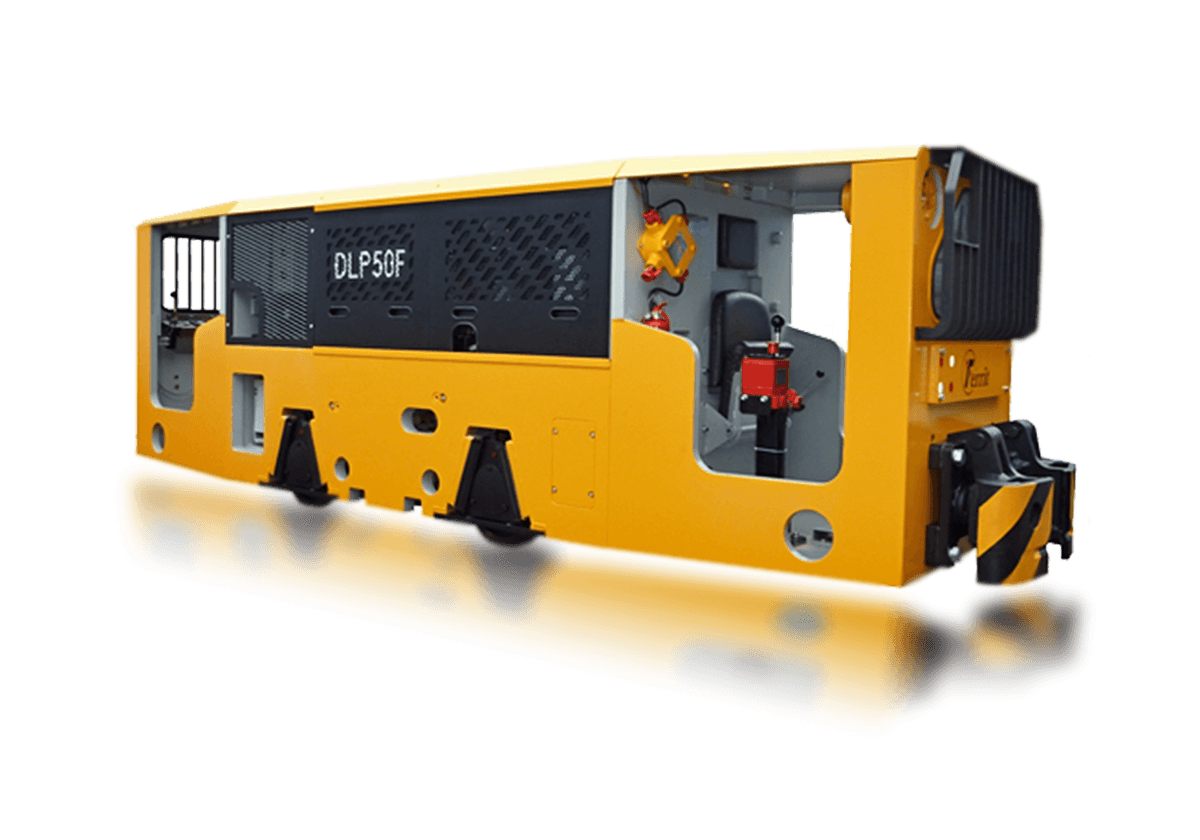

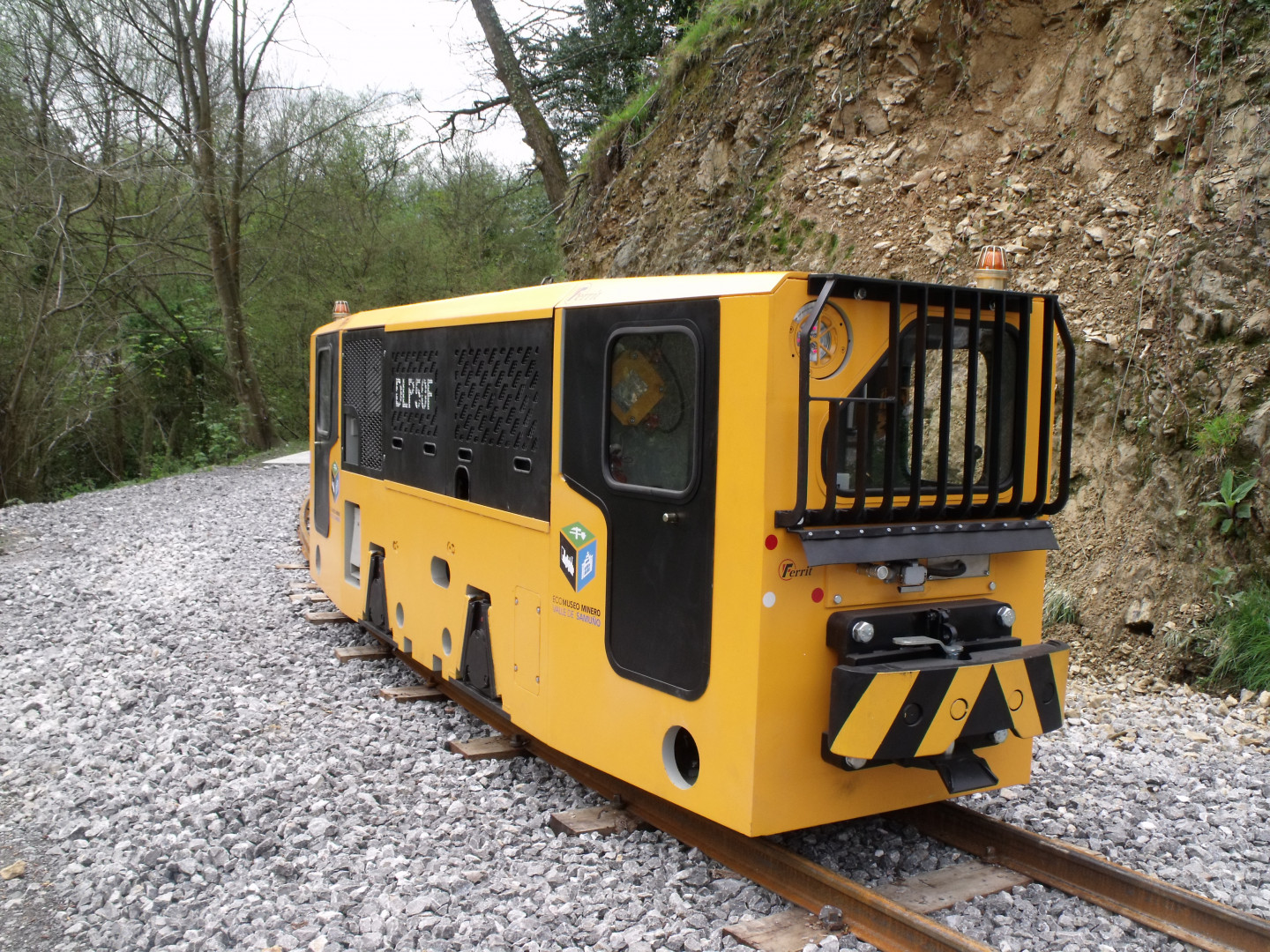

DLP50F

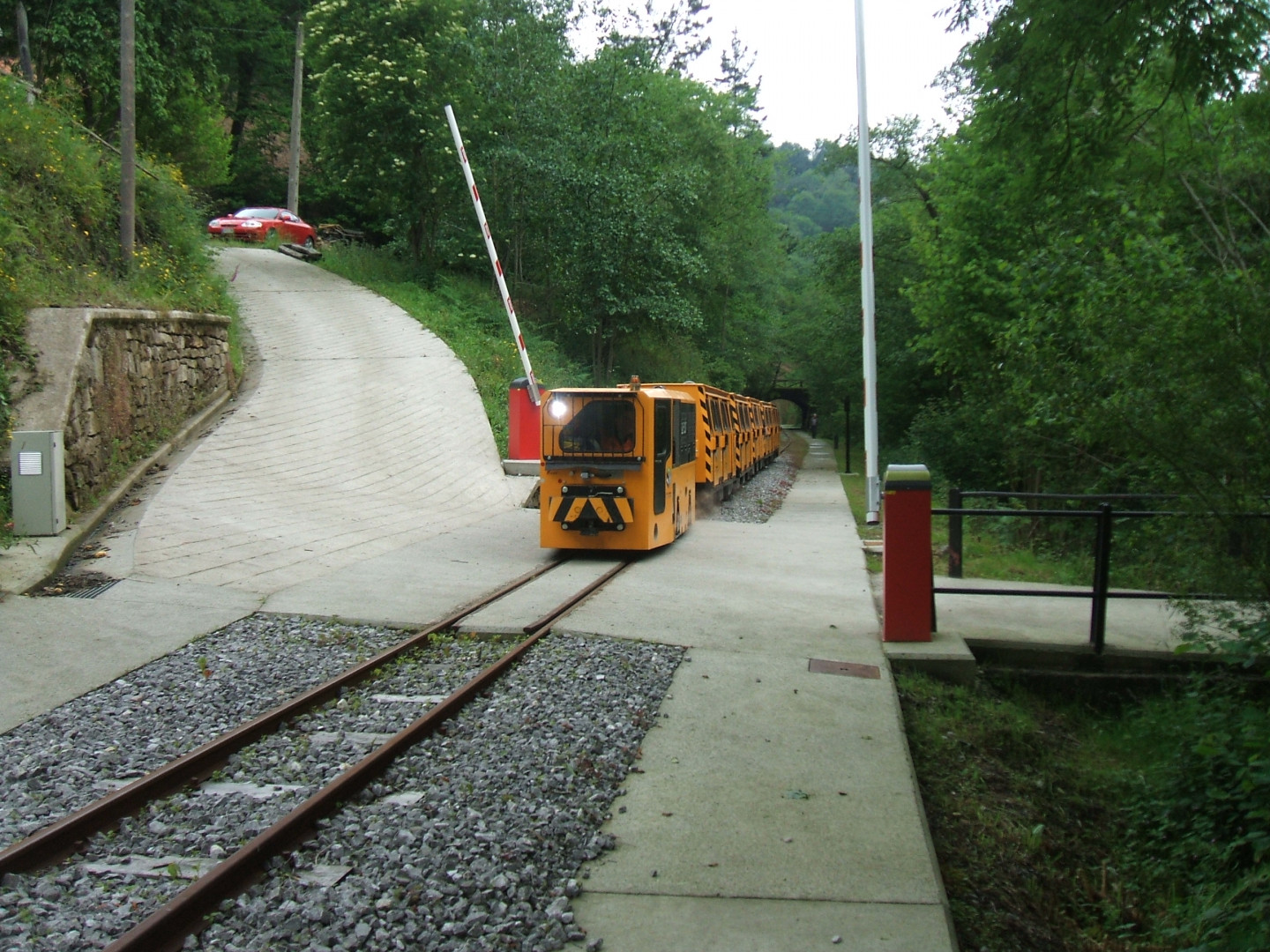

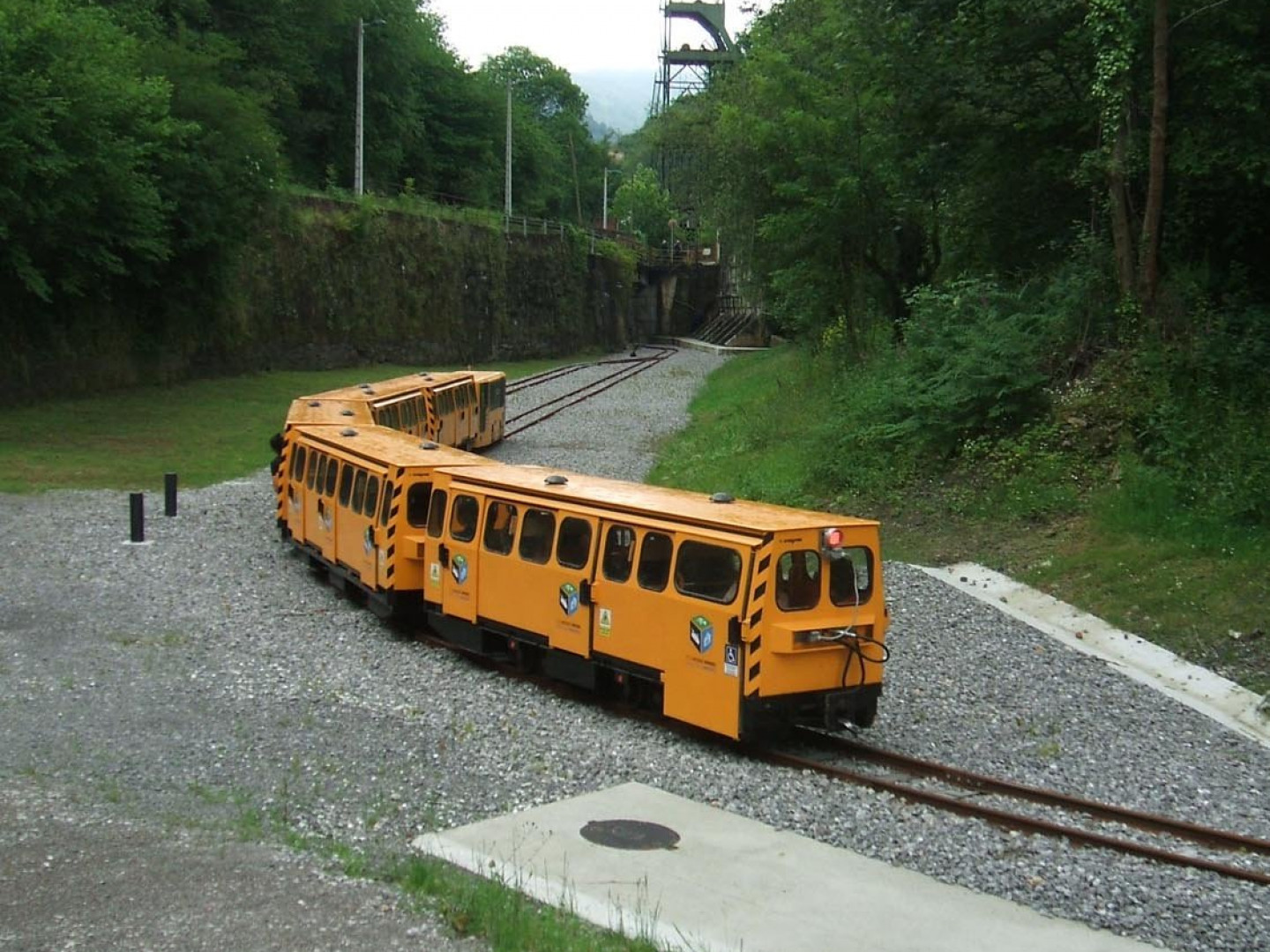

Mining ground rail locomotive type DLP50F is designed for transport of material or persons in horizontal mine or surface roadways on rail tracks gauges 550, 600, 620, 750 or 900 mm with max. track inclination of up to 35 ‰.

The locomotive is separable into three main assembly units in order to facilitate its transport to site. The locomotive is controlled from 2 driver´s cabins, which are equipped with control, monitoring and safety elements and appliances used for safe control thereof. The cabin design provides a good operator’s view of the track and reliable protection against injury and adverse external conditions.

Specification
Power: 36 kW
Max. traction force: 20 kN
Speed: 0 - 20 km/h
Gauge: 550, 600, 620, 750, 900 mm
Total weight: 8,2 t
Max. track inclination: 35 ‰
