DTK130F-R

The universal mining vehicle

Multipurpose Transport in Demanding Mines

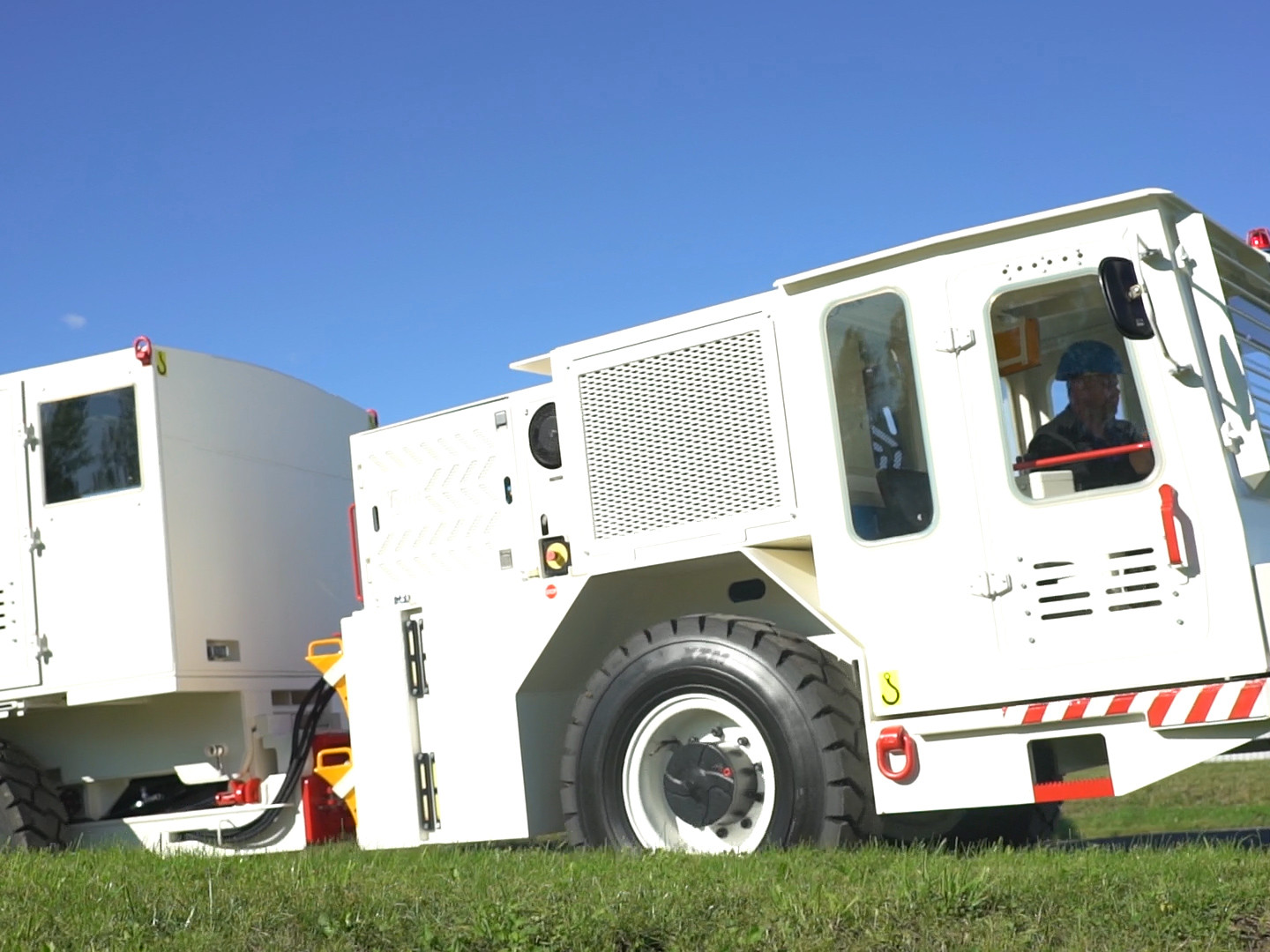

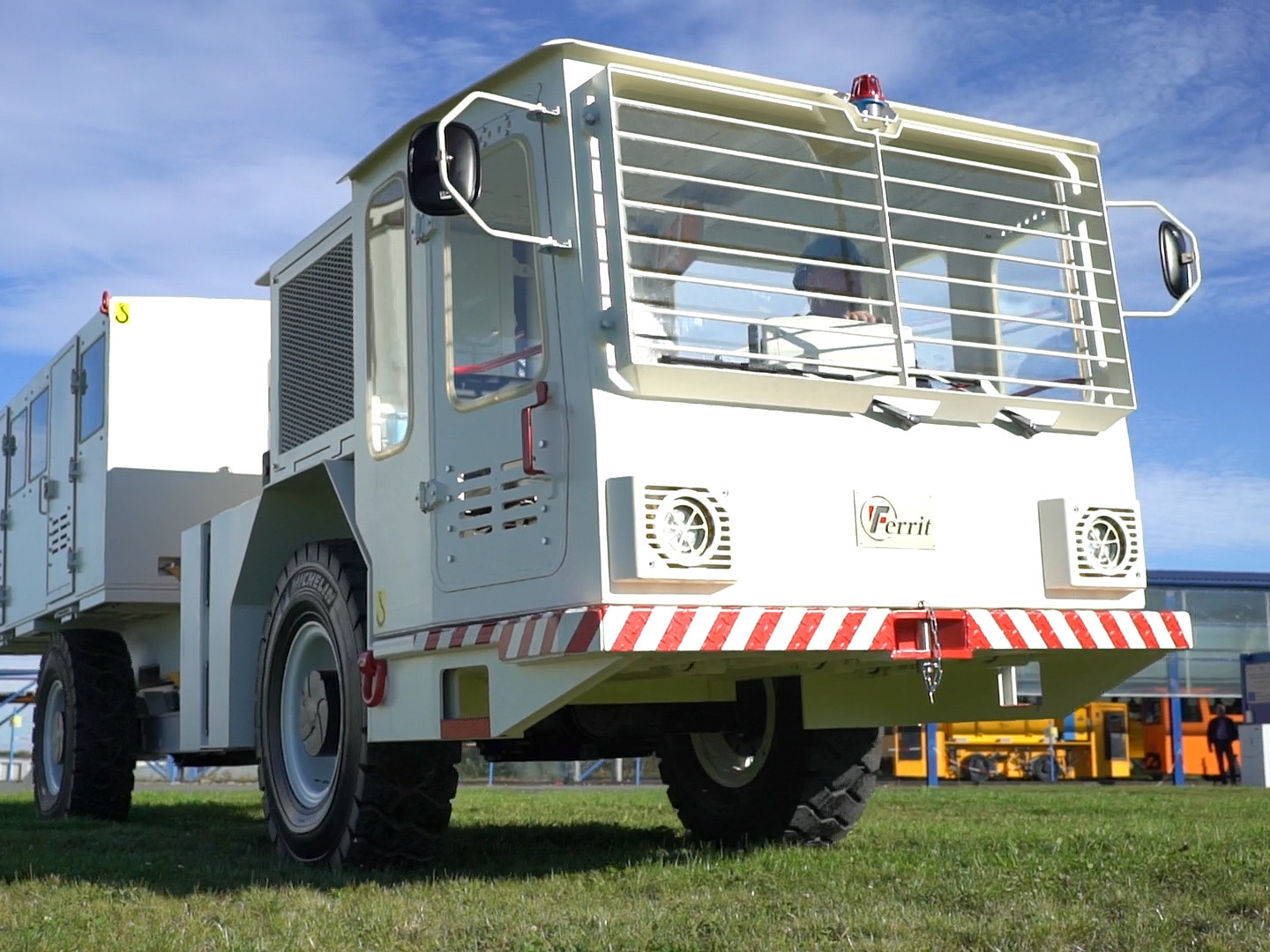

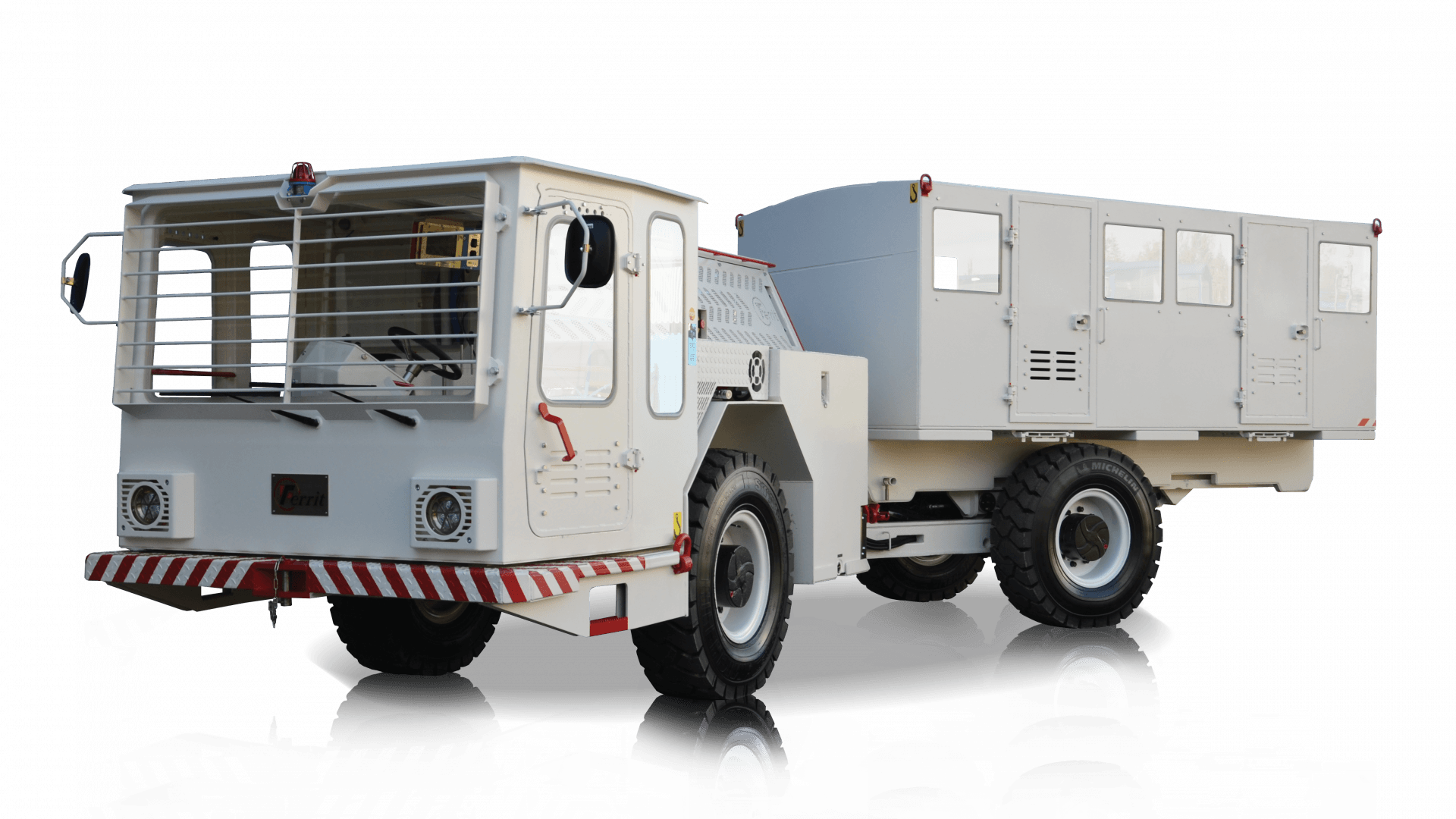

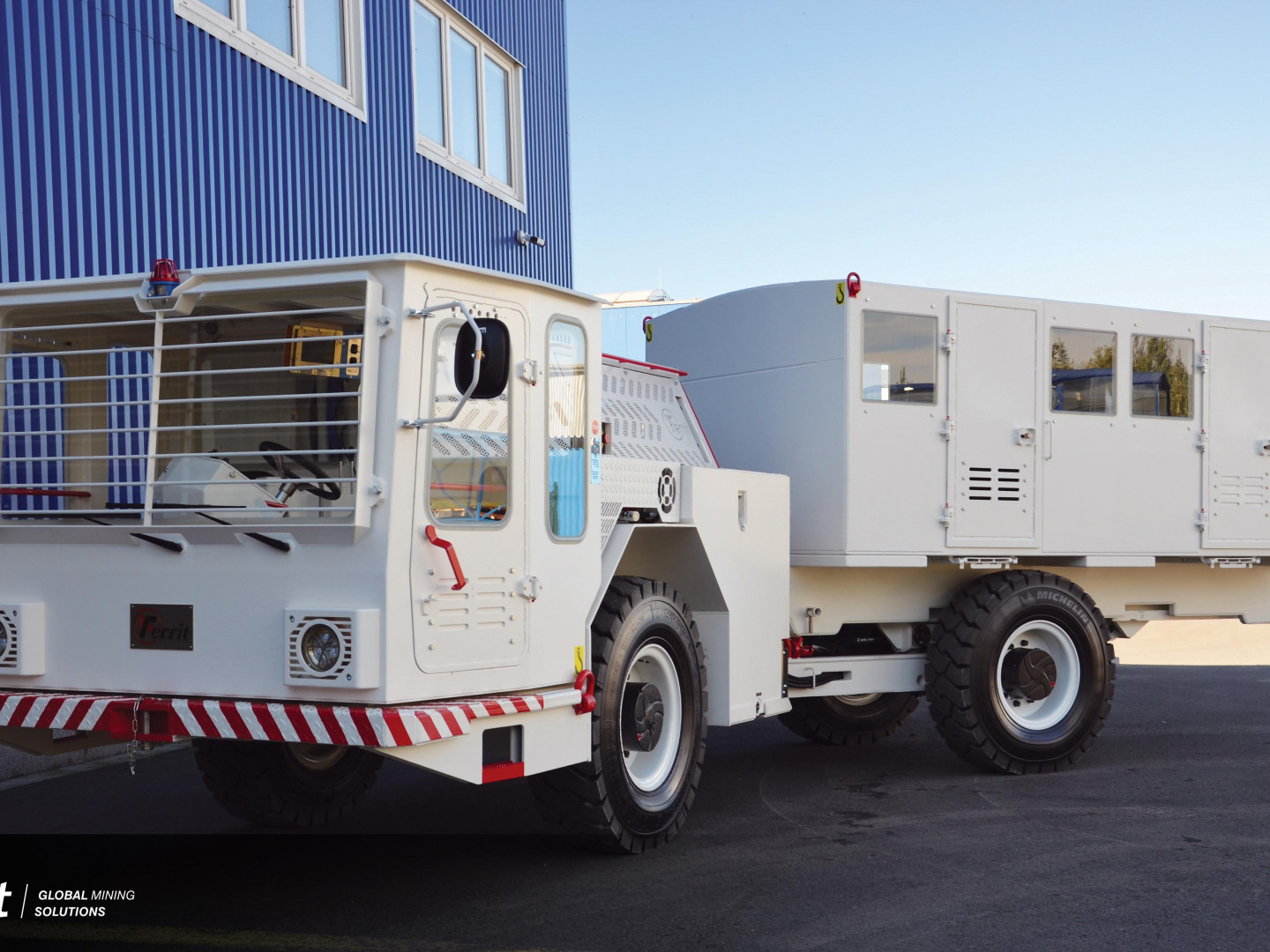

The universal DTK130F-R mining vehicle is a multipurpose machine designed for the safe transport of material and persons in demanding mining environments.

Two versions are available:

  1. Fixed body

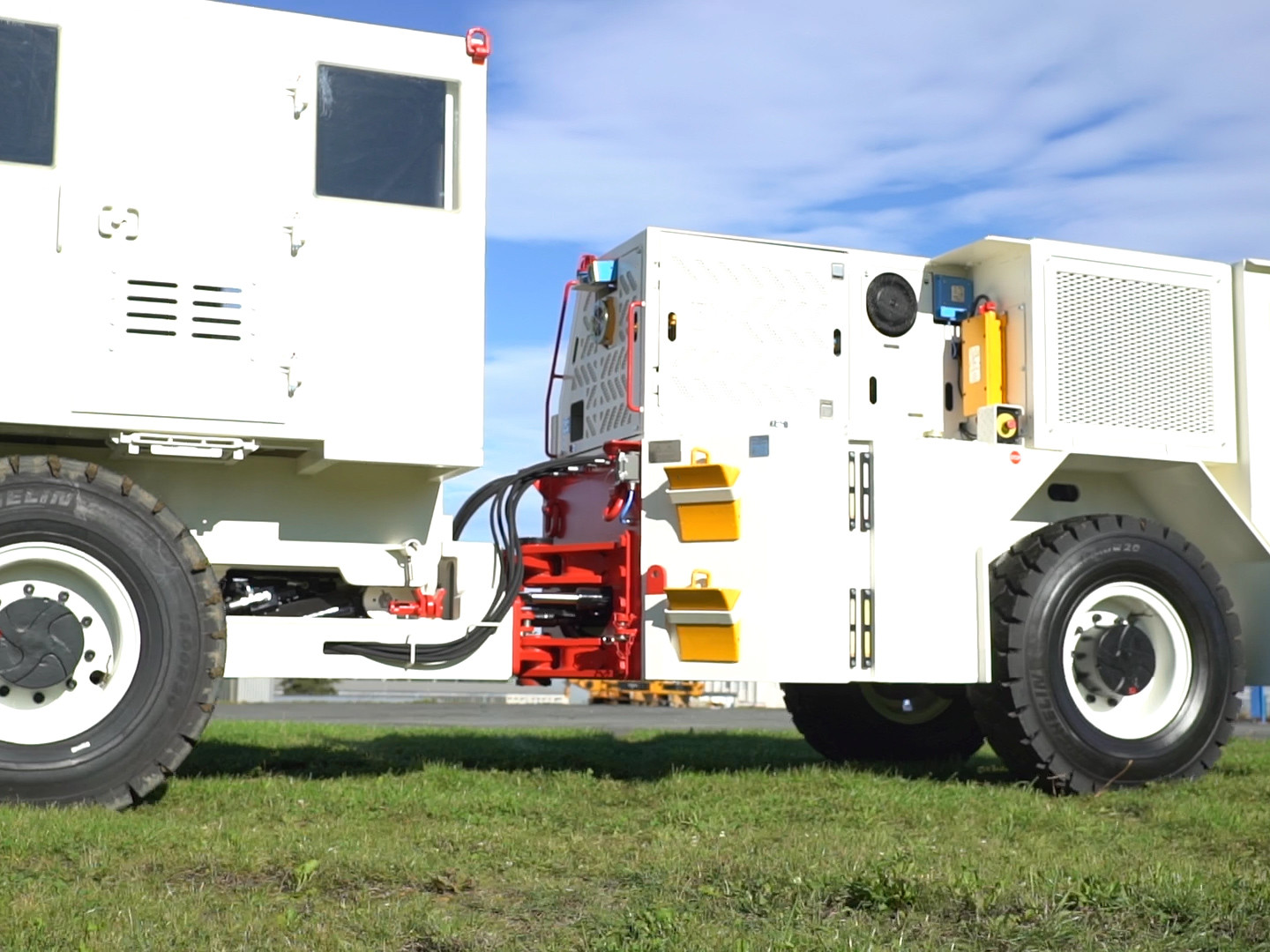

  2. „Roll on / Roll off“ system for easy exchange of various types of cassettes with its hydraulic mechanism.
    • Material transport cassette

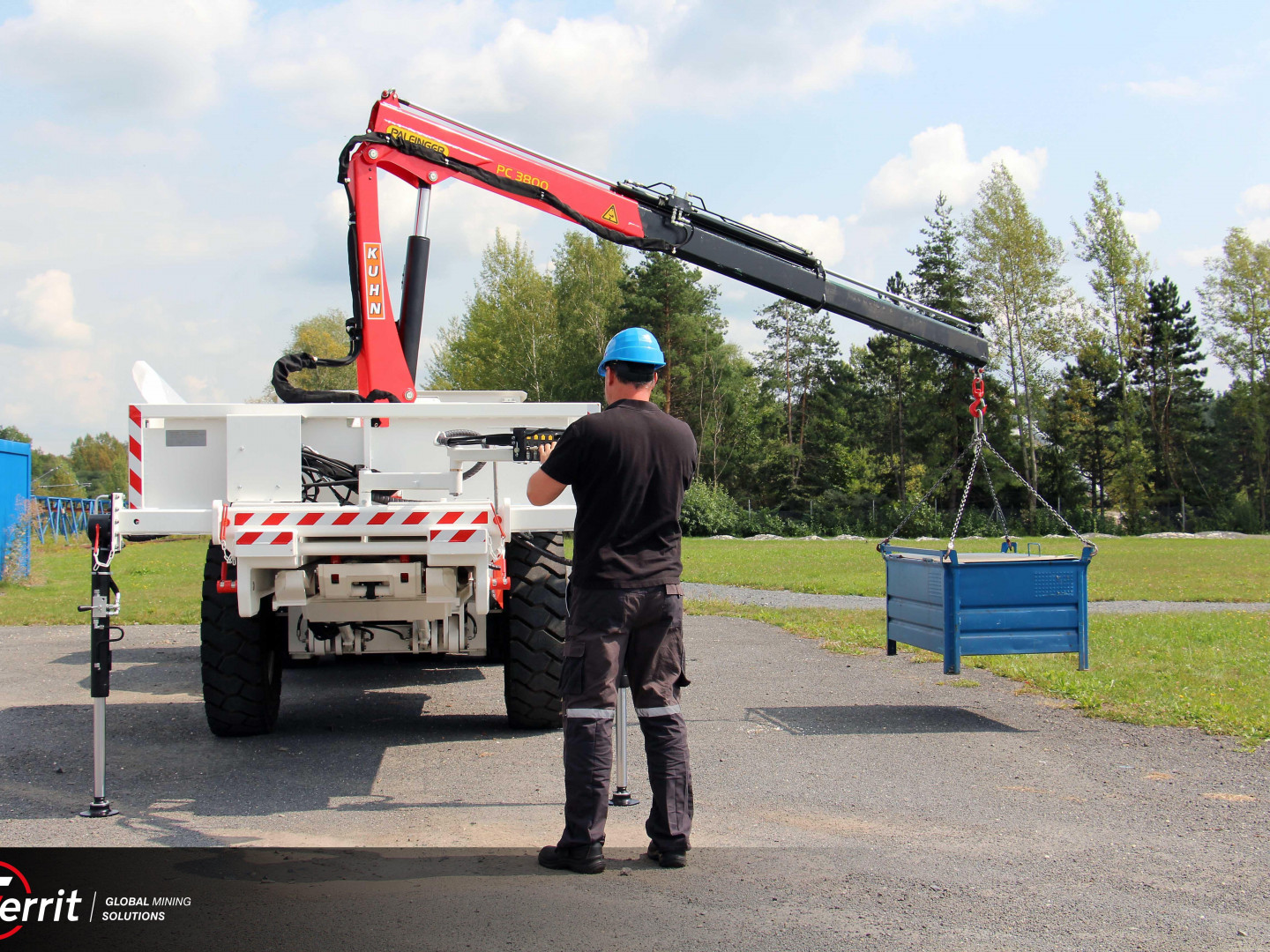

    • Mechanical arm cassette
    • Scissor lift cassette

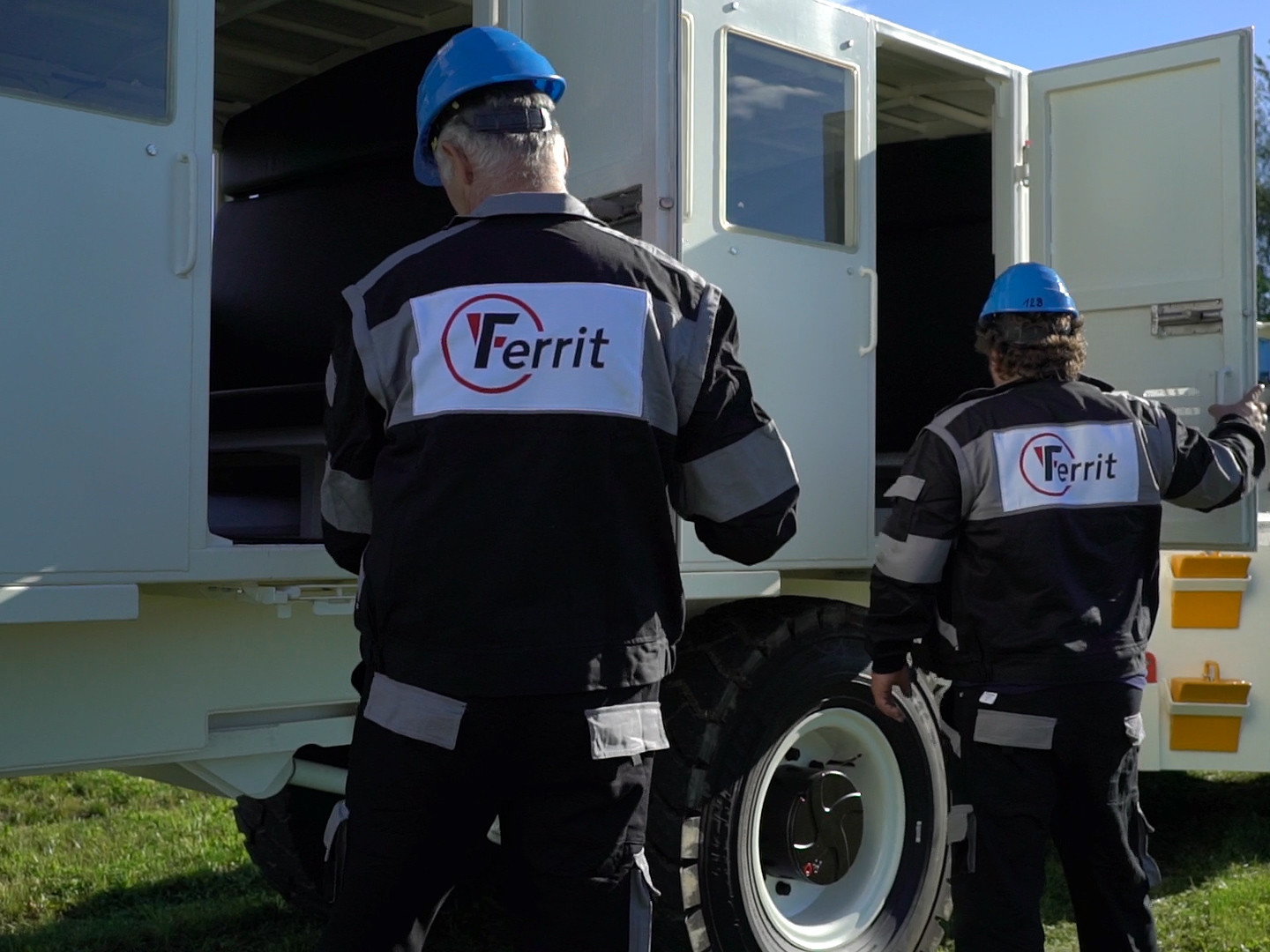

    • People transport cassette
    • Fuel transport cassette

Features:

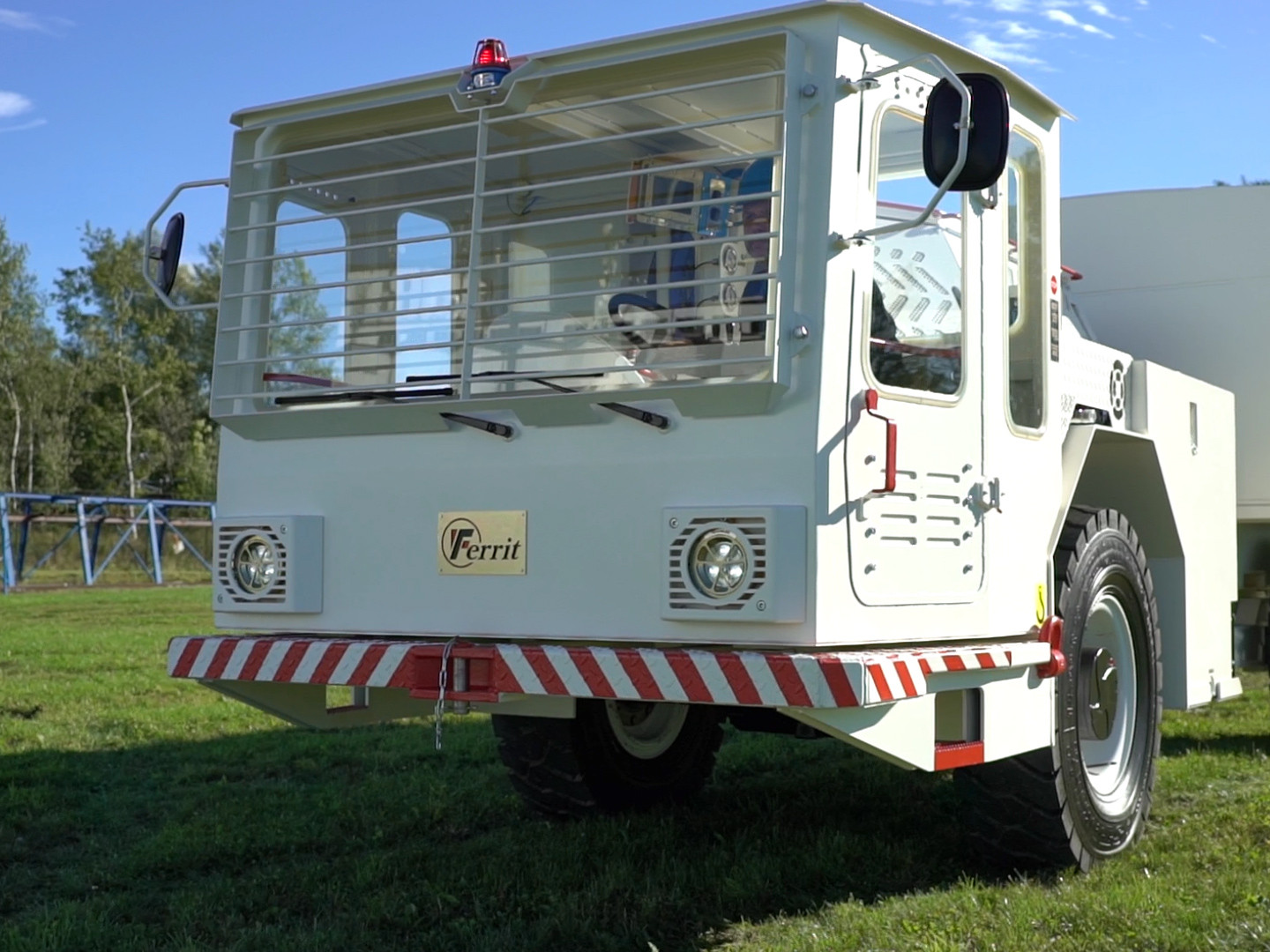

  • Cab designed and certified as an ROPS / FOPS protection structure
  • POSISTOP safety brakes
  • Negative brake
  • Electronic machine control system with visualization unit and "KeyBox" compartment
  • Wet exhaust cooling
  • Spring loaded seats ensure a comfortable ride on all surfaces
  • Mechanical or hydraulic control of the injection pump
  • Mechanical transmission control
DTK130F-R

Technical parameters

engine power:
106 kW
max. speed:
25 km/h
dimension (L-W-H):
8,2 x 2,1 x 2,2 m
payload capacity:
10 000 kg

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
