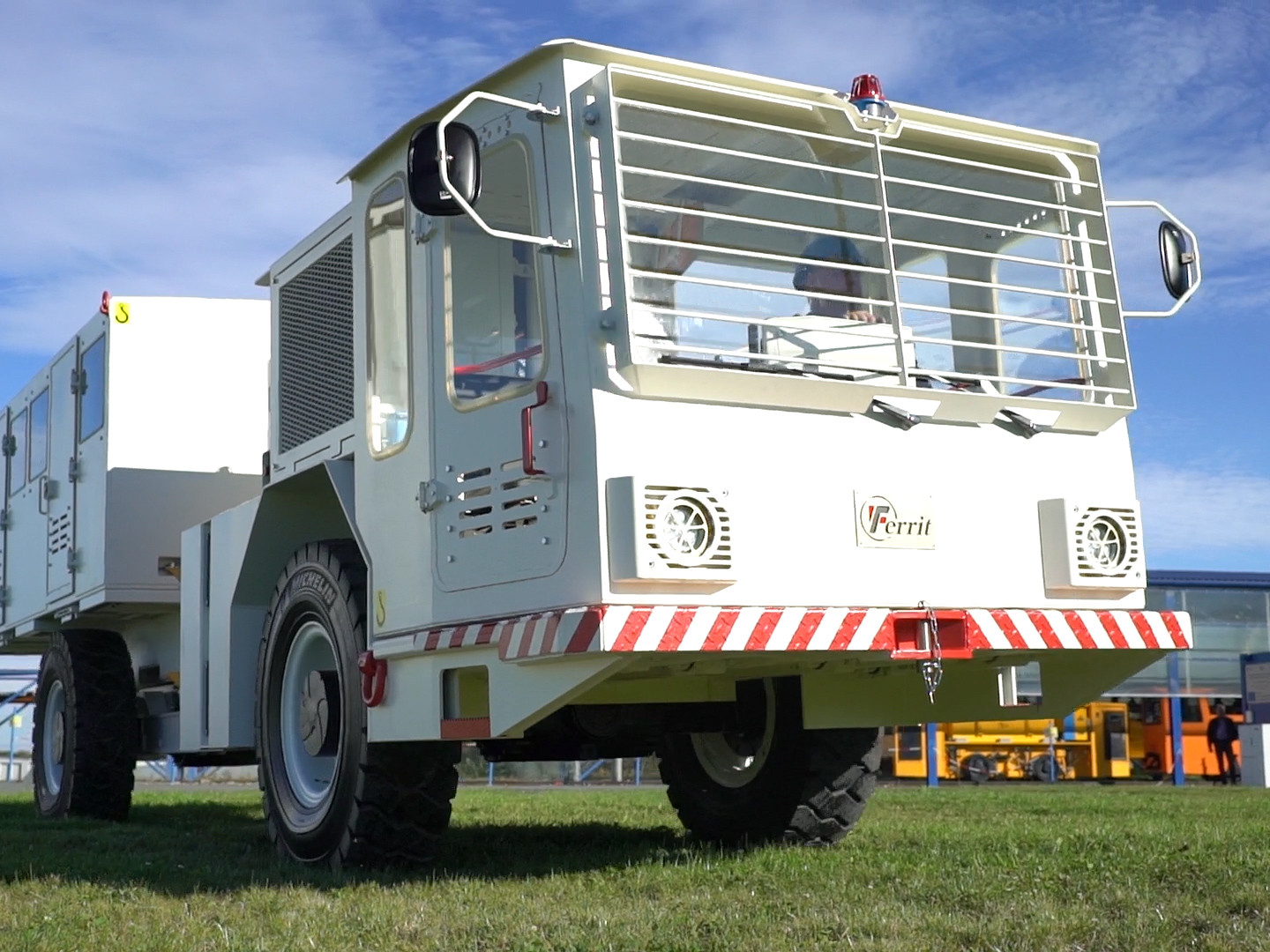

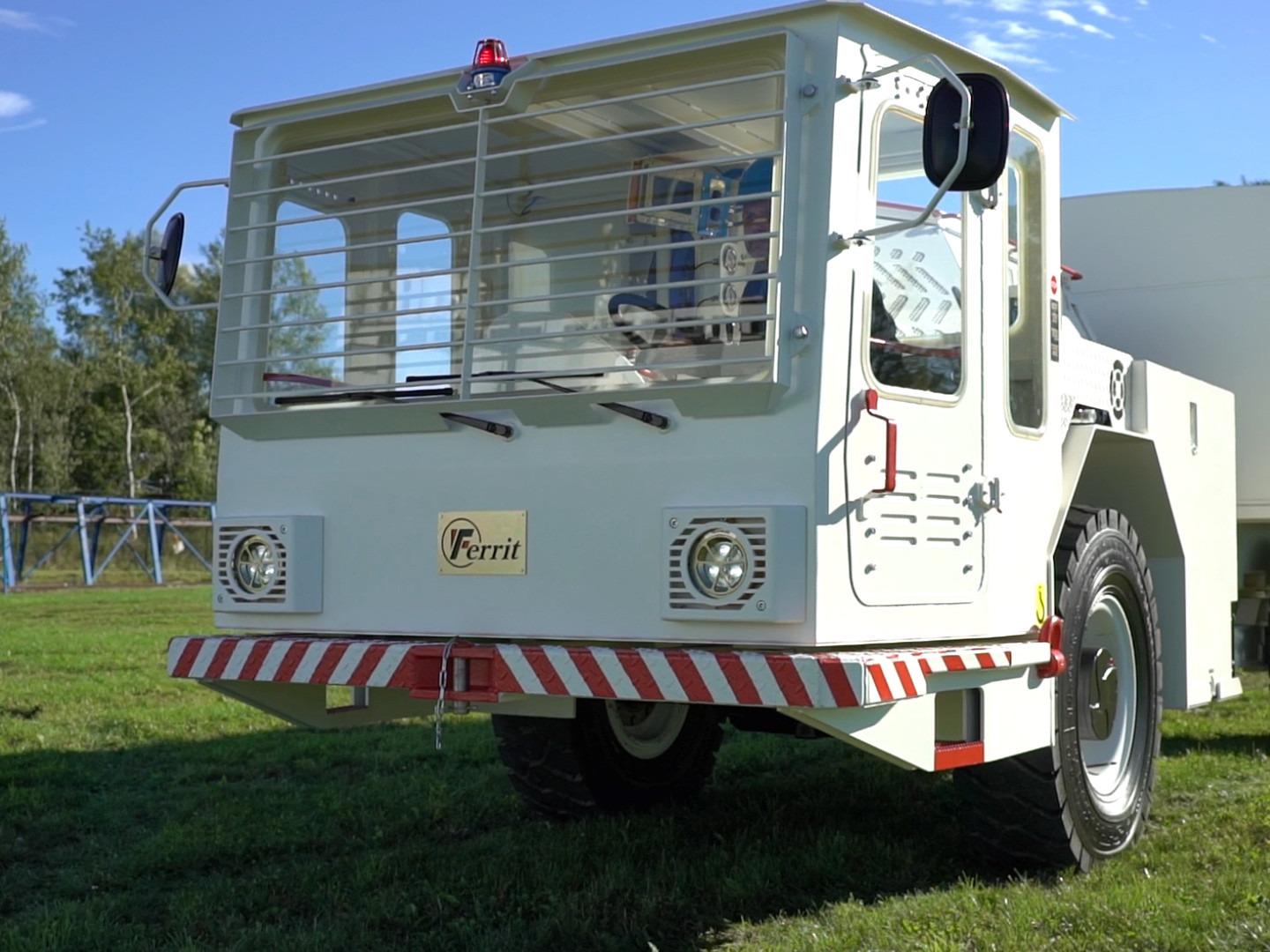

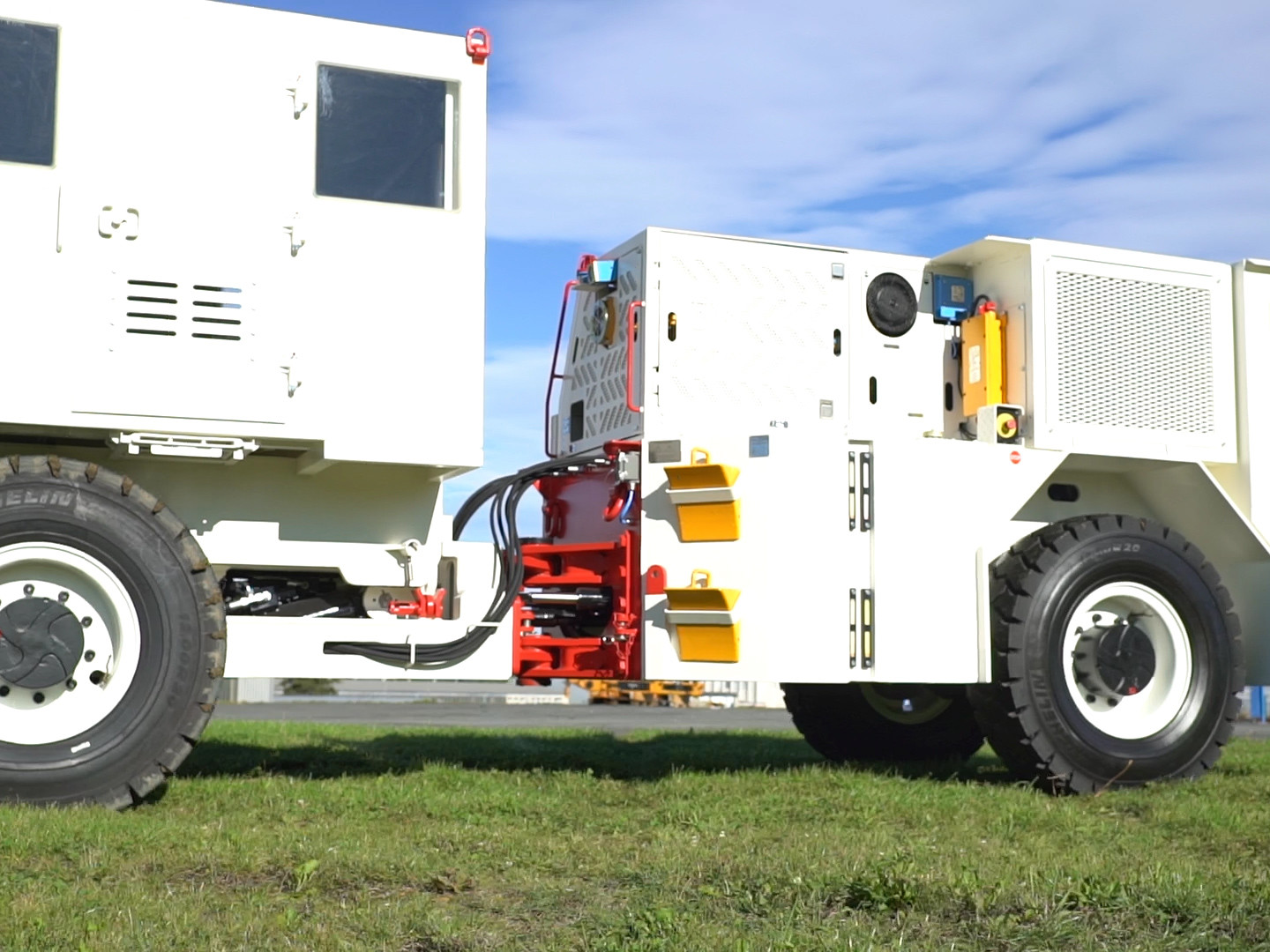

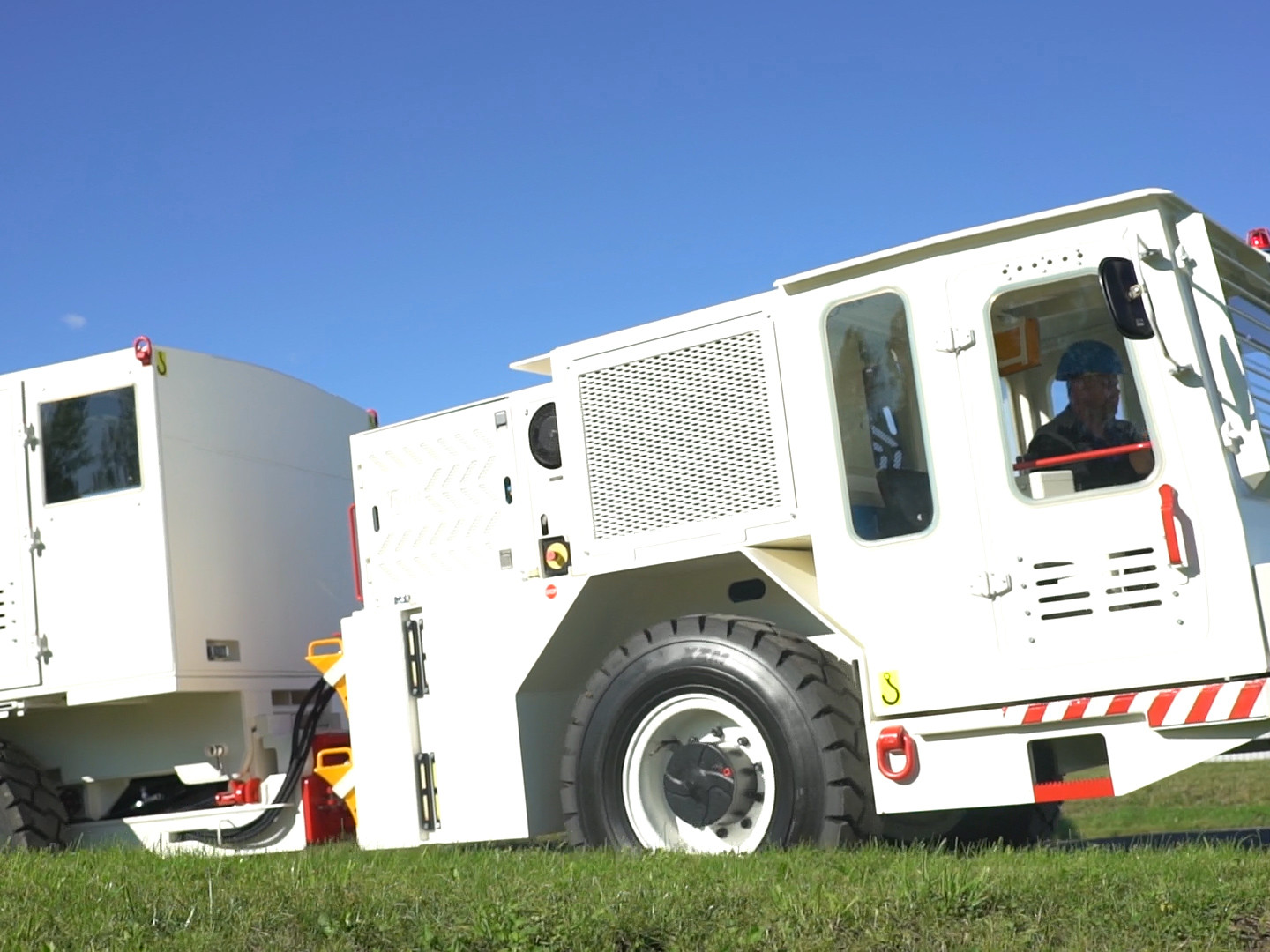

DTK130F-E

Universal vehicle

BUILT FOR EXPLOSIVE AND CORROSIVE MINING ENVIROMENTS

The universal DTK130F-E mining vehicle has been specifically designed for safely transporting people and equipment in demanding mines that have the risk of coal or dust explosions. It also offers increased protection against rust and salt corrosion with a special anti-corrosive coating on components, together with the use of stainless steel for selected components.

Two versions are available:

  1. Fixed body

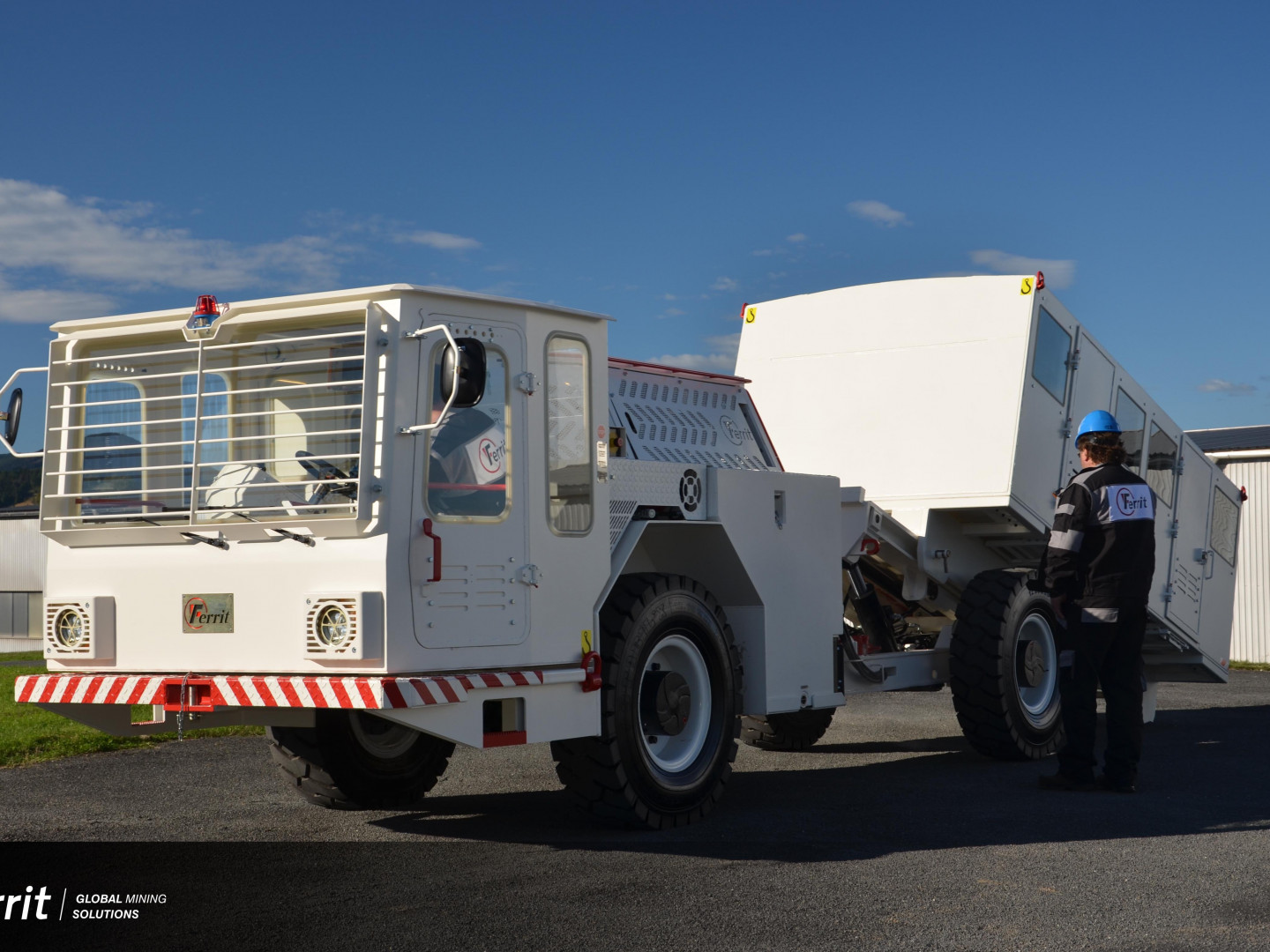

  2. „Roll on / Roll off“ system for easy exchange of various types of cassettes with its hydraulic mechanism.
    • Material transport cassette

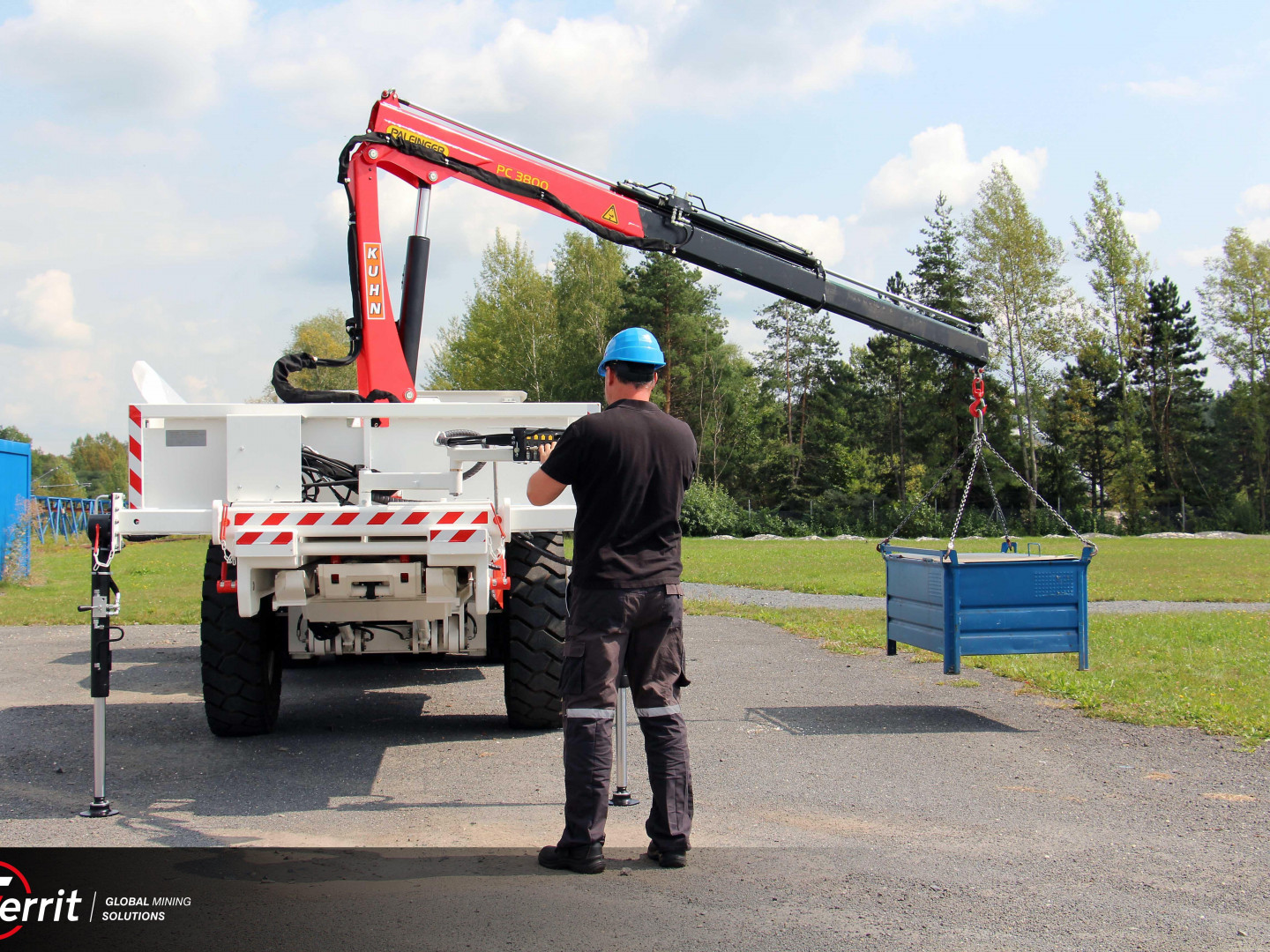

    • Mechanical arm cassette
    • Scissor lift cassette

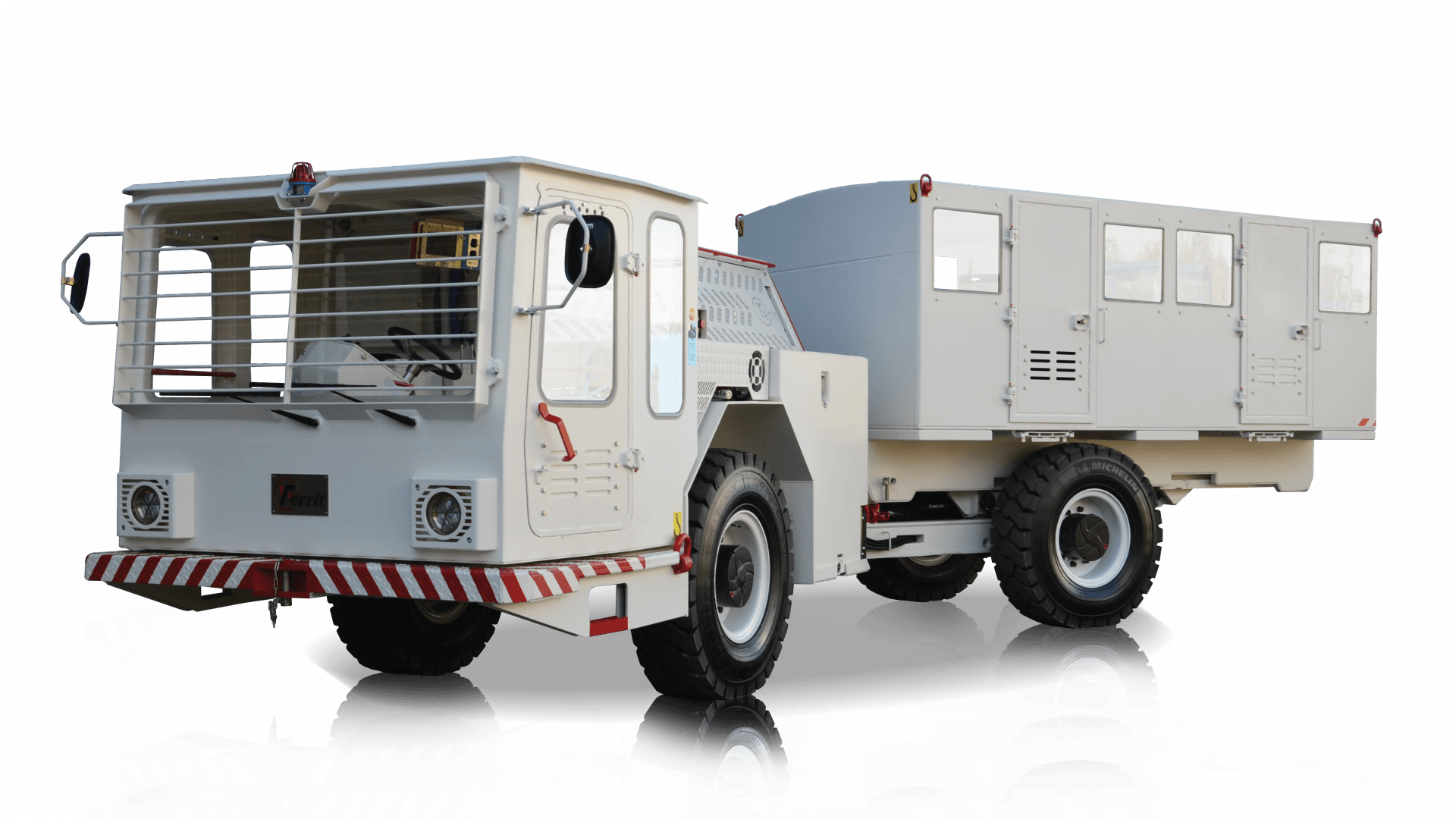

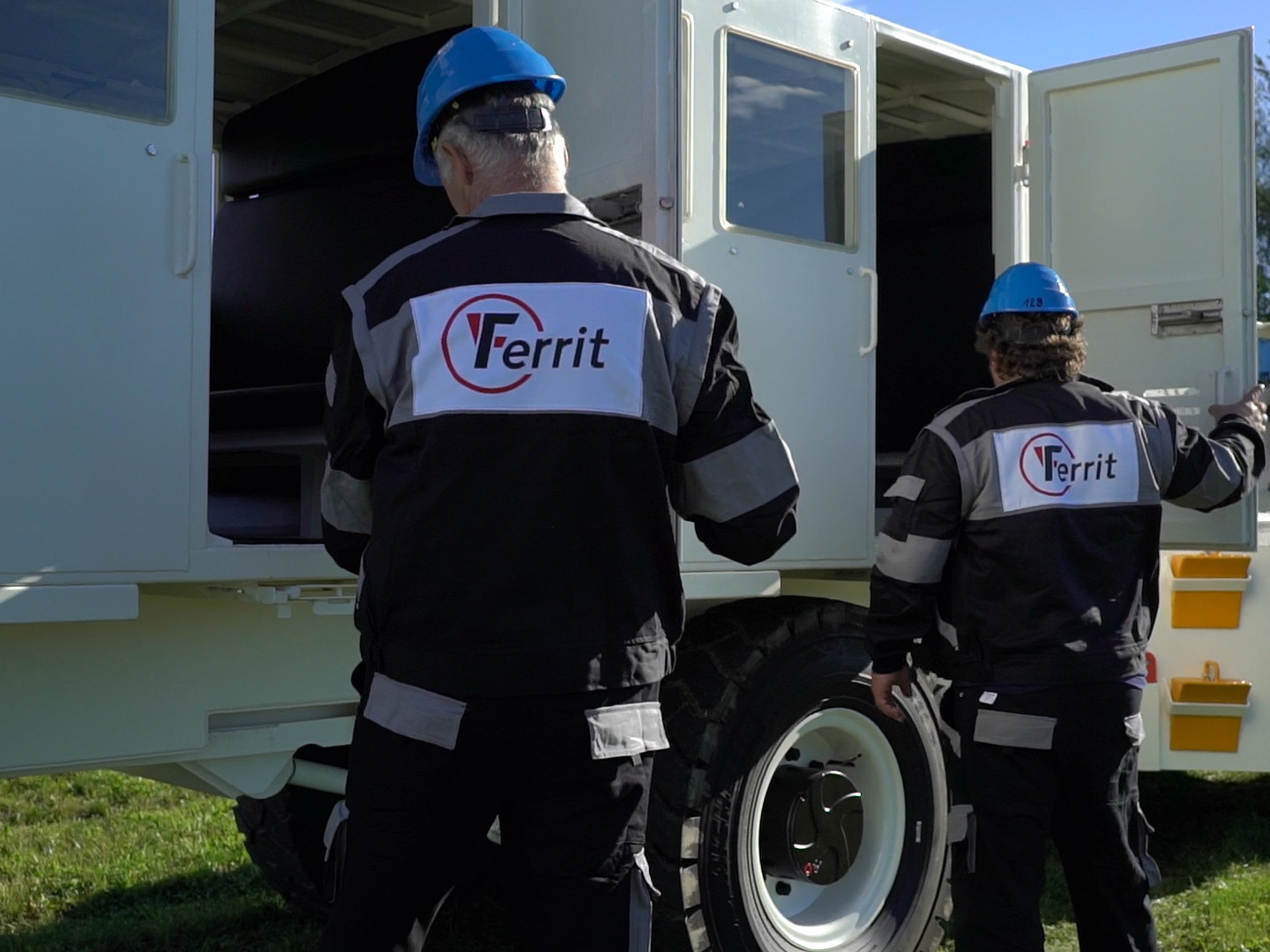

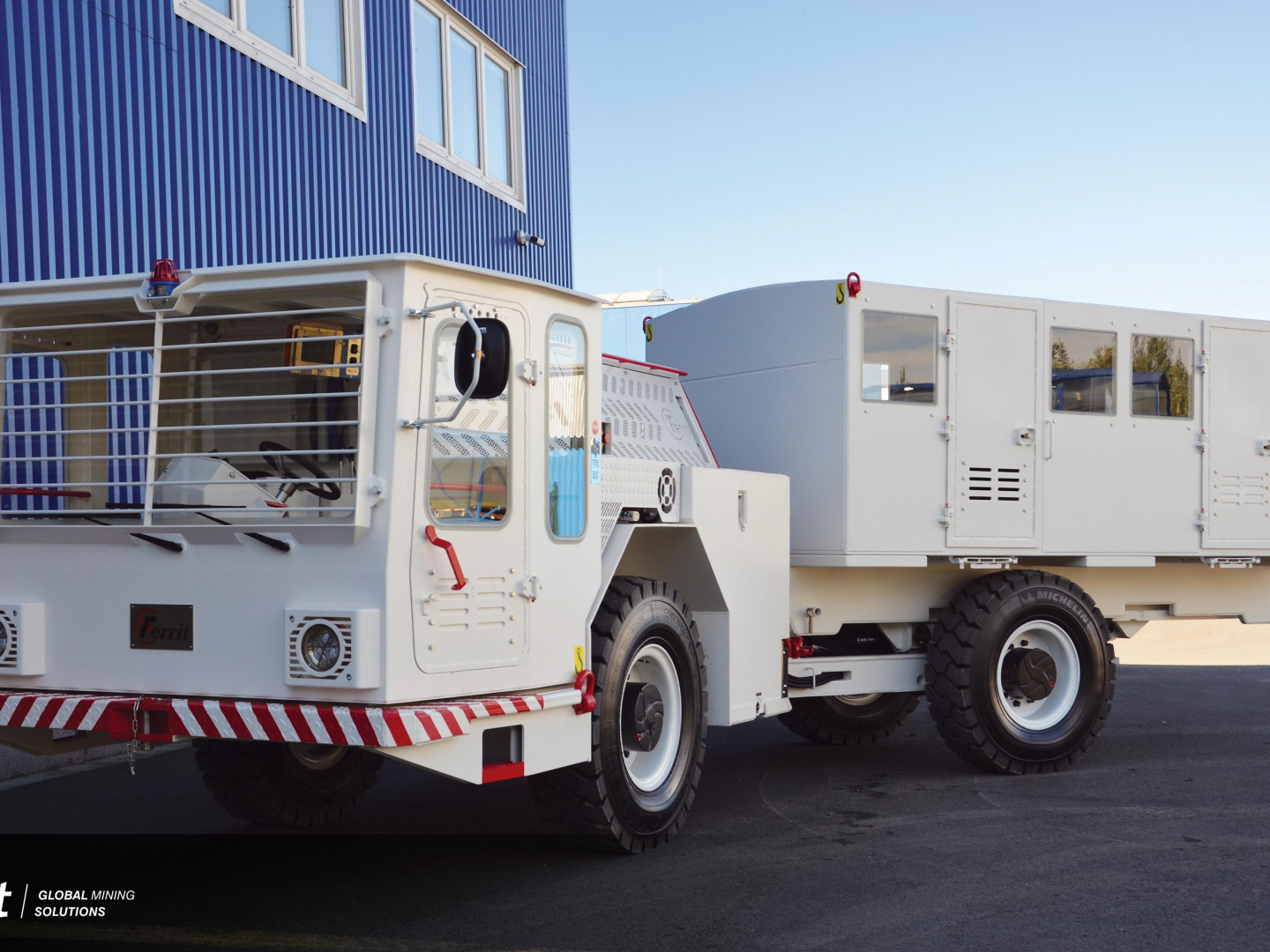

    • People transport cassette
    • Fuel transport cassette

Anti-explosive safety features:

  • Cooled turbocharger and air intake
  • Cooling box with triple cooler
  • Exhaust gas cooling system (wet exhaust cooling, anti-explosive inserts)
  • Intercooler
  • Intake shut off valve
  • Safety sensors that stop motor when fault conditions are encountered
  • Onboard methanometer for real time detection of methane levels

Additional Features:

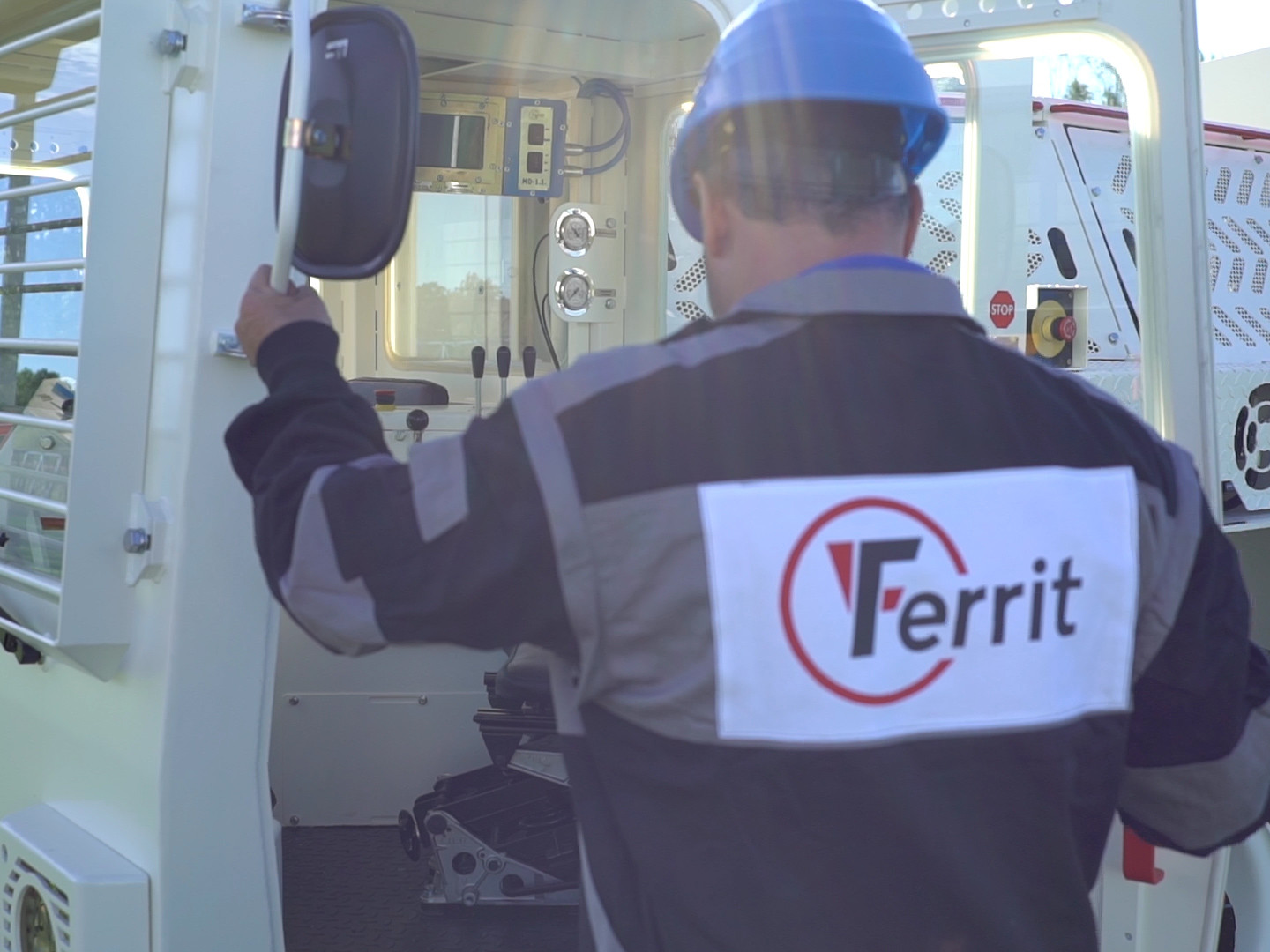

  • Cab designed and certified as an ROPS / FOPS protection structure
  • IP65 enclosure
  • POSISTOP safety brakes
  • Negative brake
  • ATEX certified
  • Electronic machine control system with visualization unit and "KeyBox" compartment
  • Spring loaded seats ensure a comfortable ride on all surfaces
DTK130F-E

Technical parameters

engine power:
95 kW
max. speed:
25 km/h
dimension (L-W-H):
8,2 x 2,1 x 2,2 m
payload capacity:
10 000 kg

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
