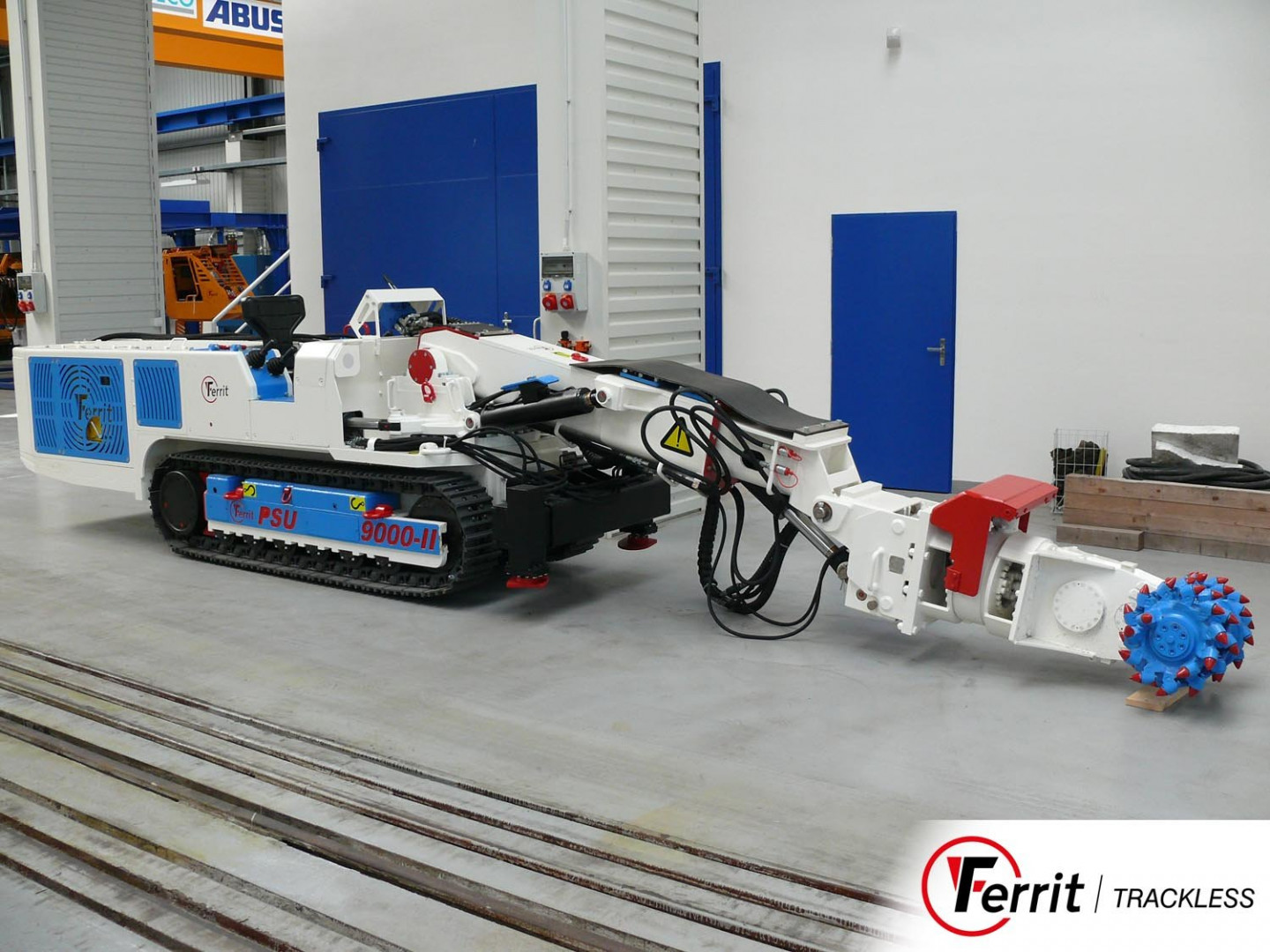

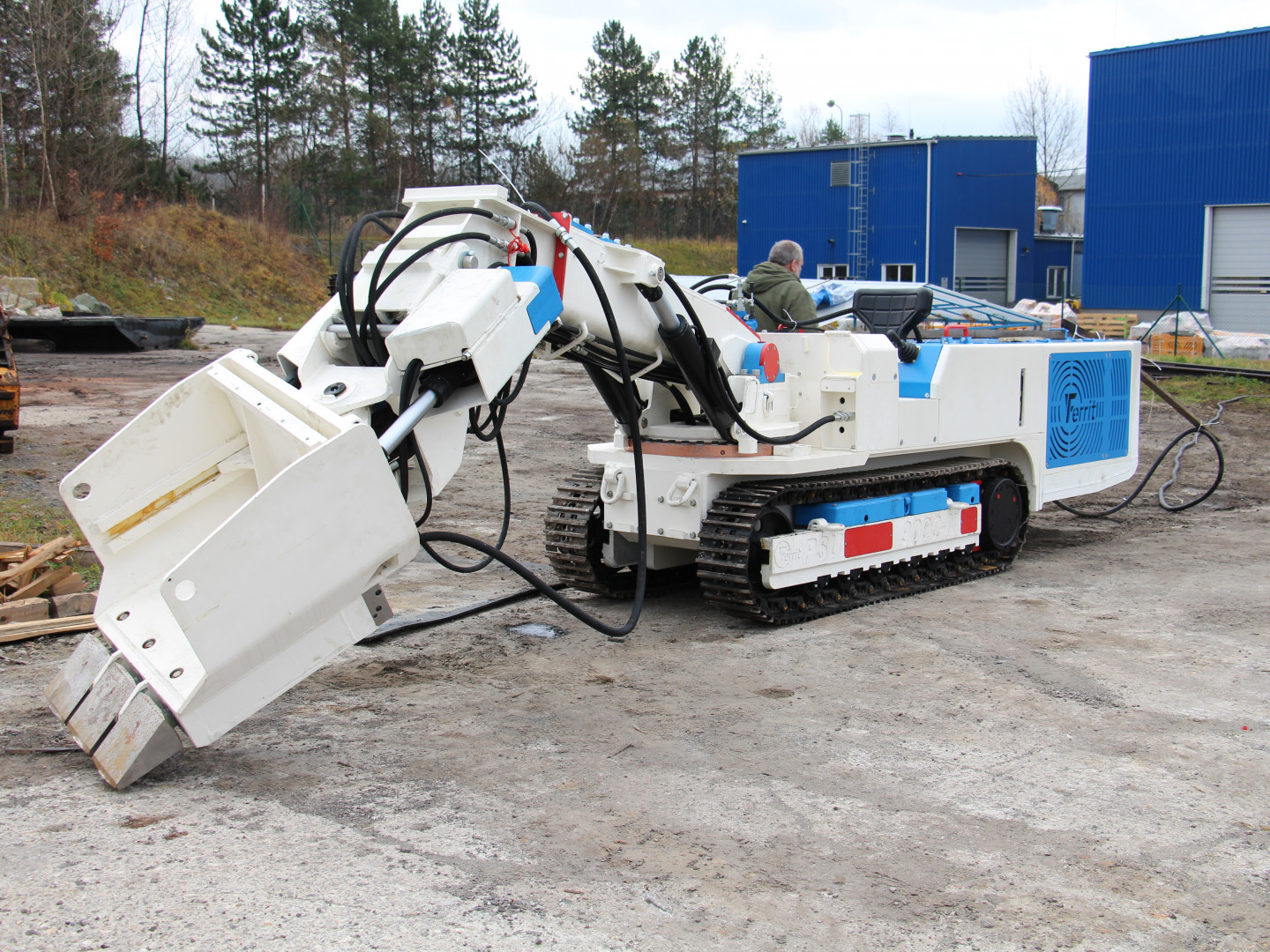

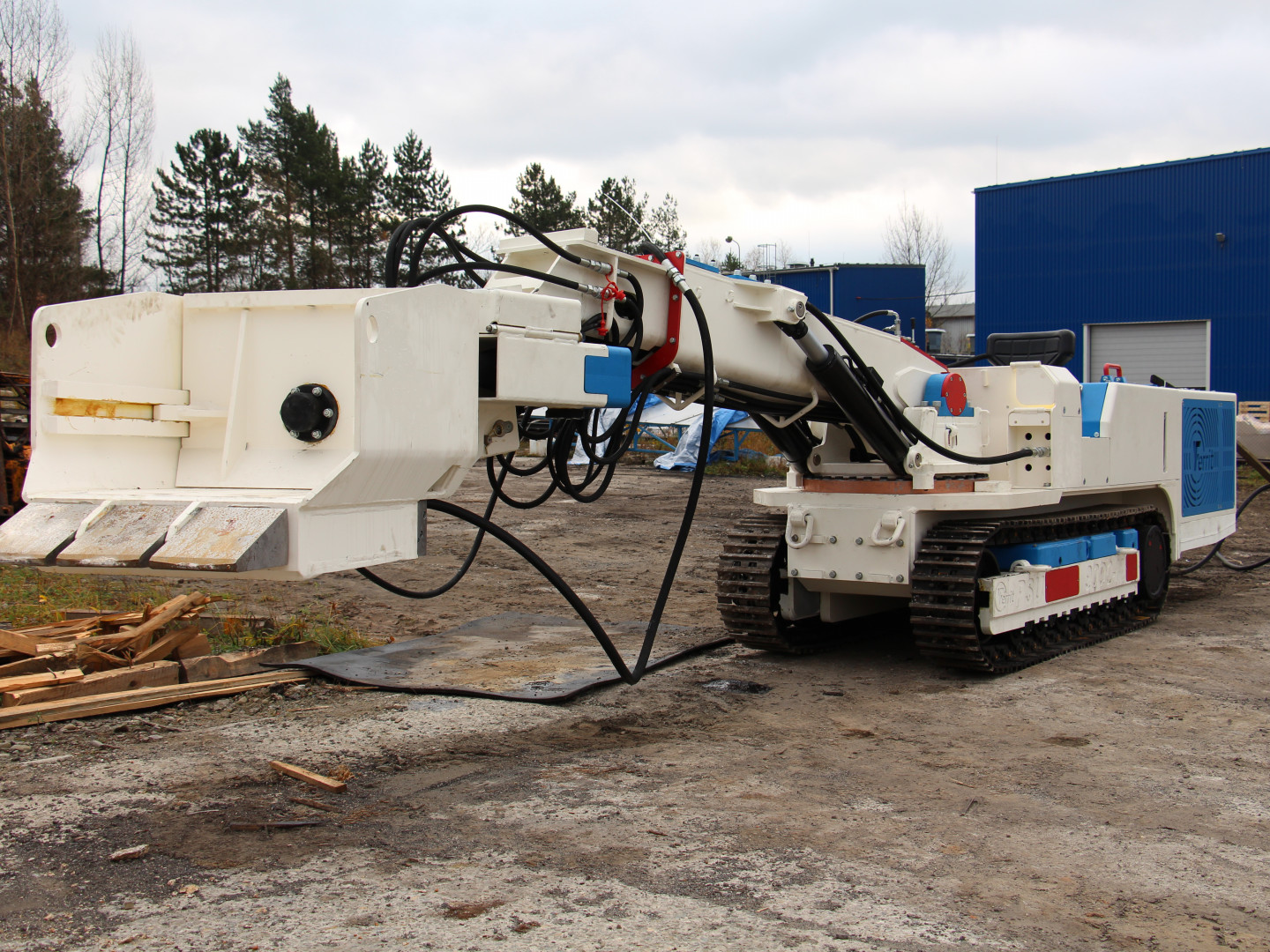

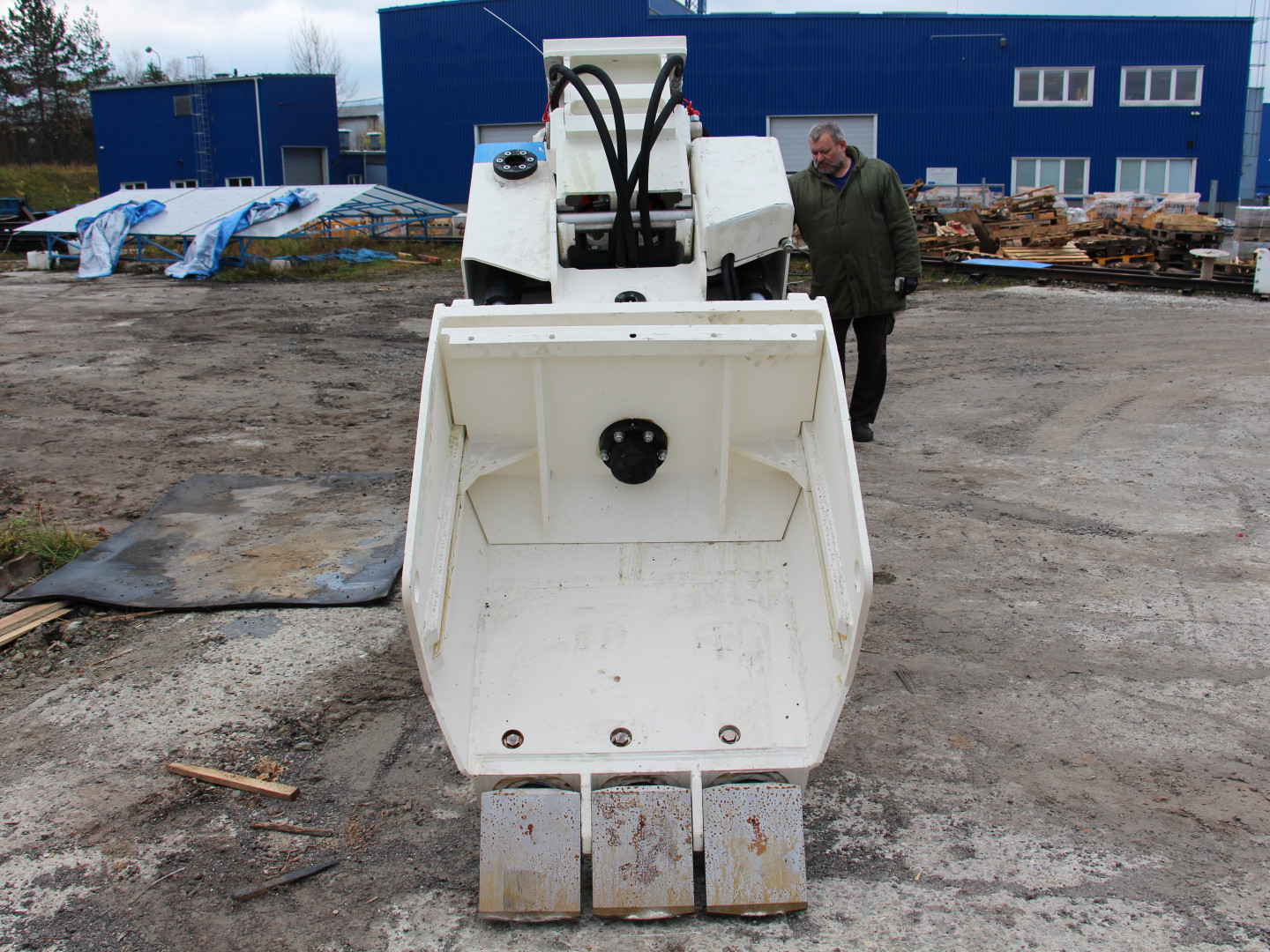

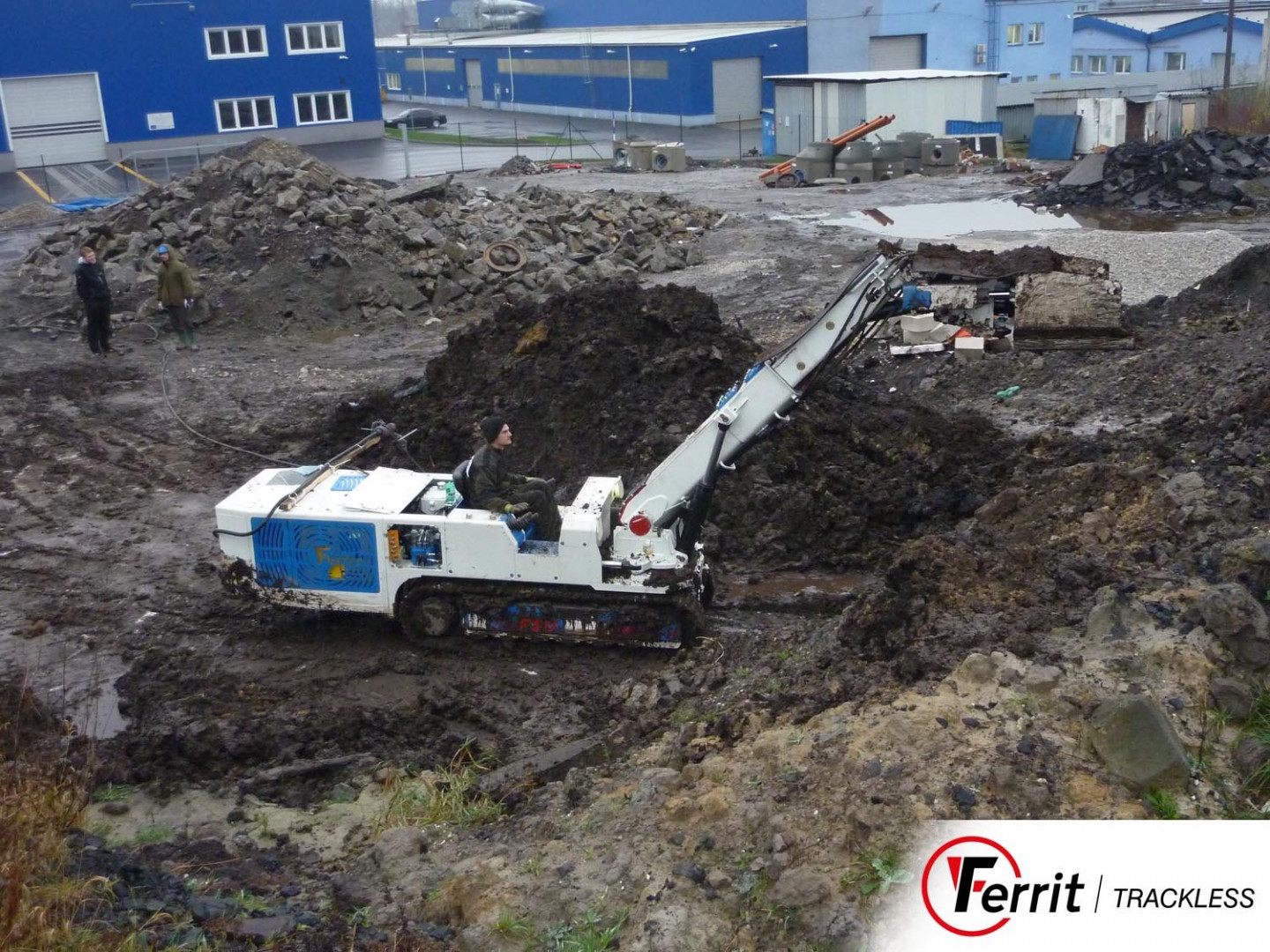

PSU9000-II

Multipurpose Dinting Loader

The PSU9000-II  Multipurpose Dinting Loader is a universal mining machine that excels in dinting and cleaning of swollen mine floors, loading rocks into transport equipment, breaking rocks and drilling blast holes and anchor holes.

  • Modifications for 500V/1000V or 660V/1140V (other voltages on request)
  • Telescopic boom
  • Flameproof

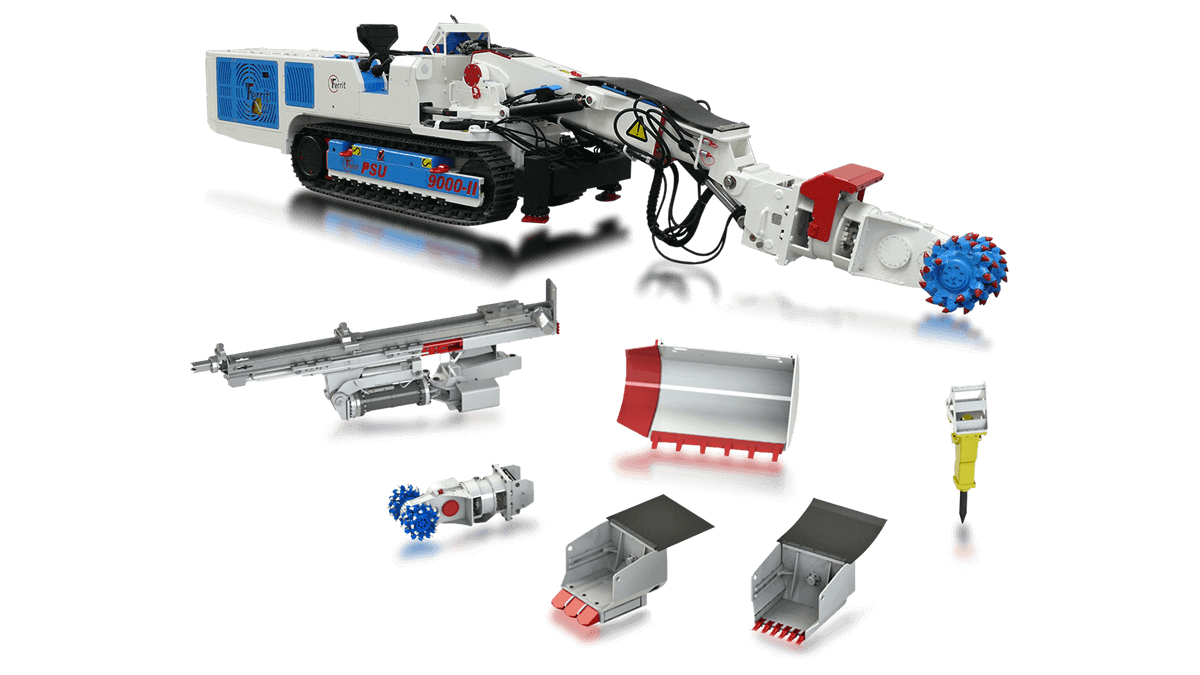

  • Possibility to equip with loading bucket, dinting bucket, active hydraulic dinting bucket, cutter head, hammer and drilling arm
  • Quick coupling device for quick and effective change of auxiliary attachments
  • LCD display for viewing operational and warning messages
  • Operational conditions storage on SD card
PSU9000-II

Technical parameters

total weight with accessories:
9 230 - 9 870 kg
height:
1 203 - 1 358 mm
shear force:
70 kN
mining floor gradient while dinting:
-20°/+20°

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
