SA-MAN-01

Electro-hydraulic Manipulator

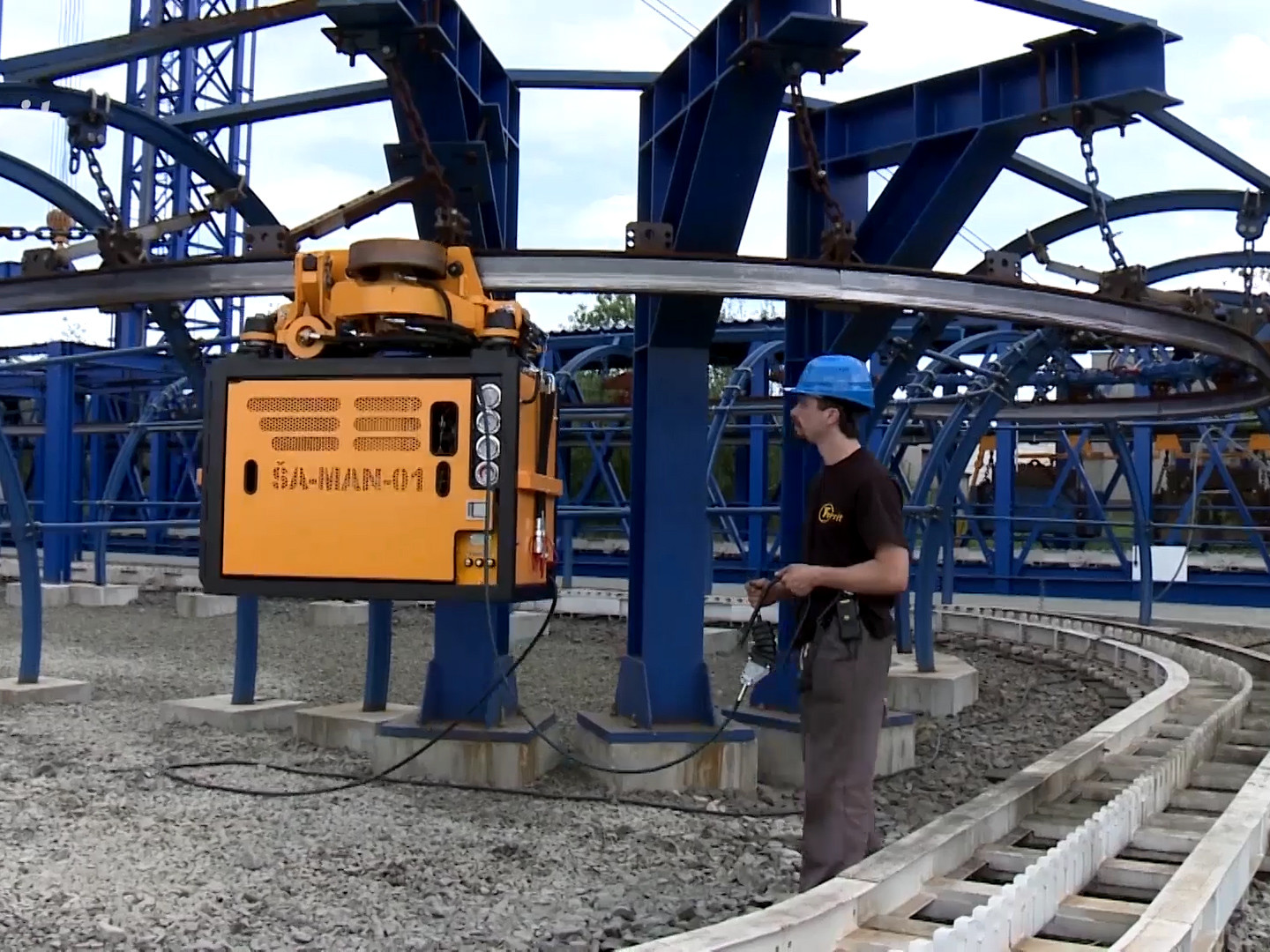

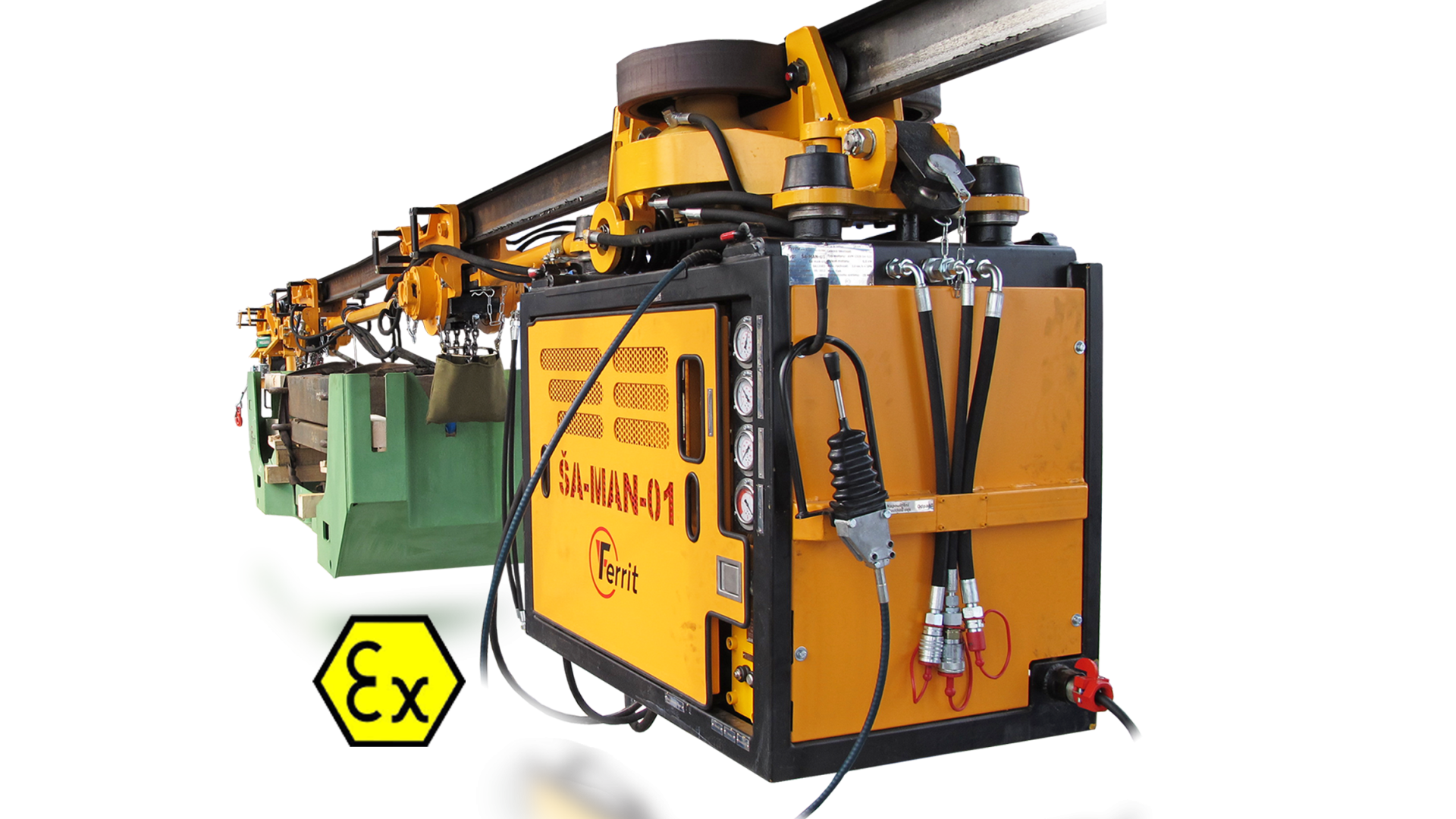

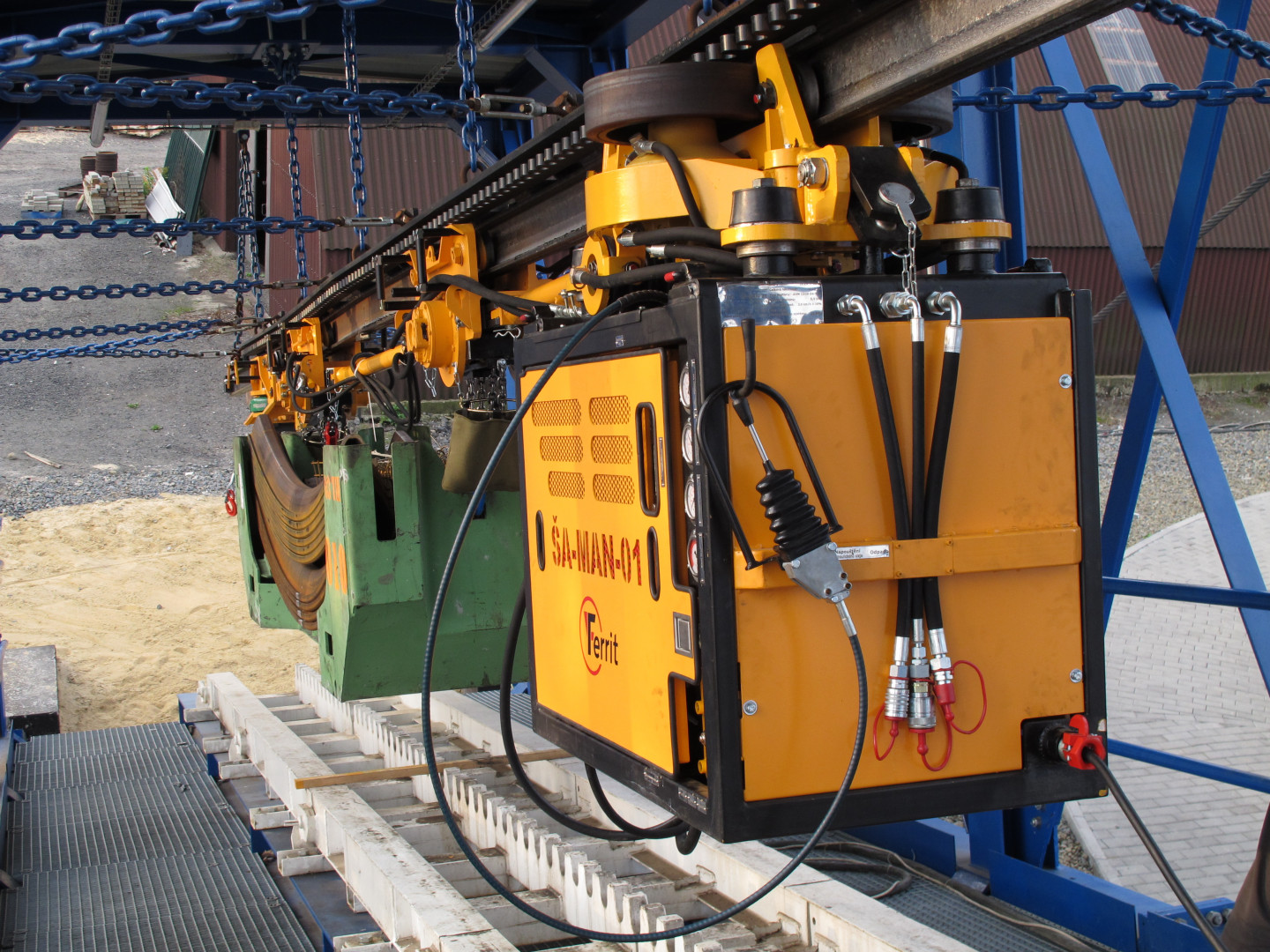

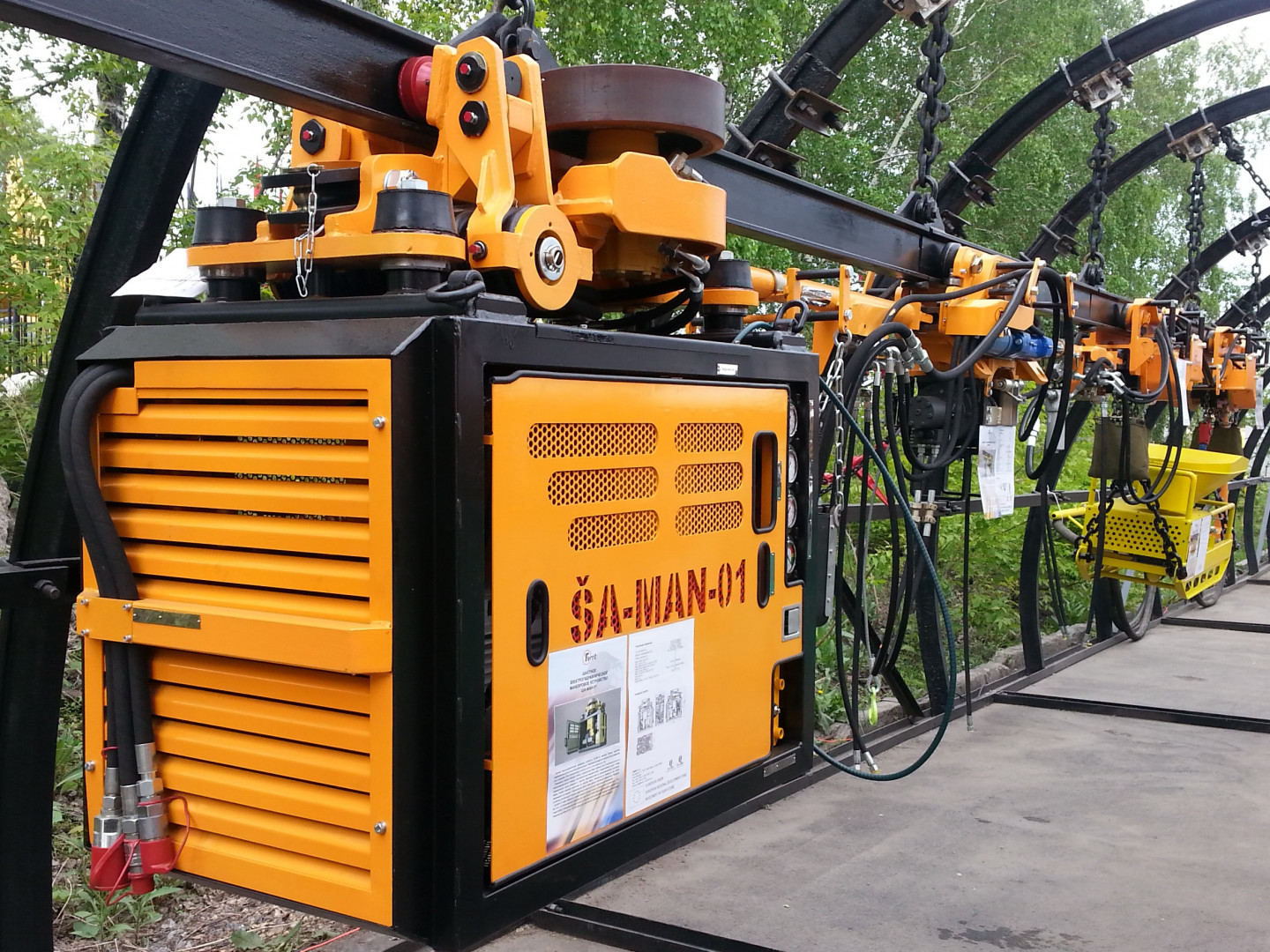

The SA-MAN-01 Electro-Hydraulic Manipulator is traction equipment designed for auxiliary handling of train sets on monorail tracks with inclines of up to 30°.

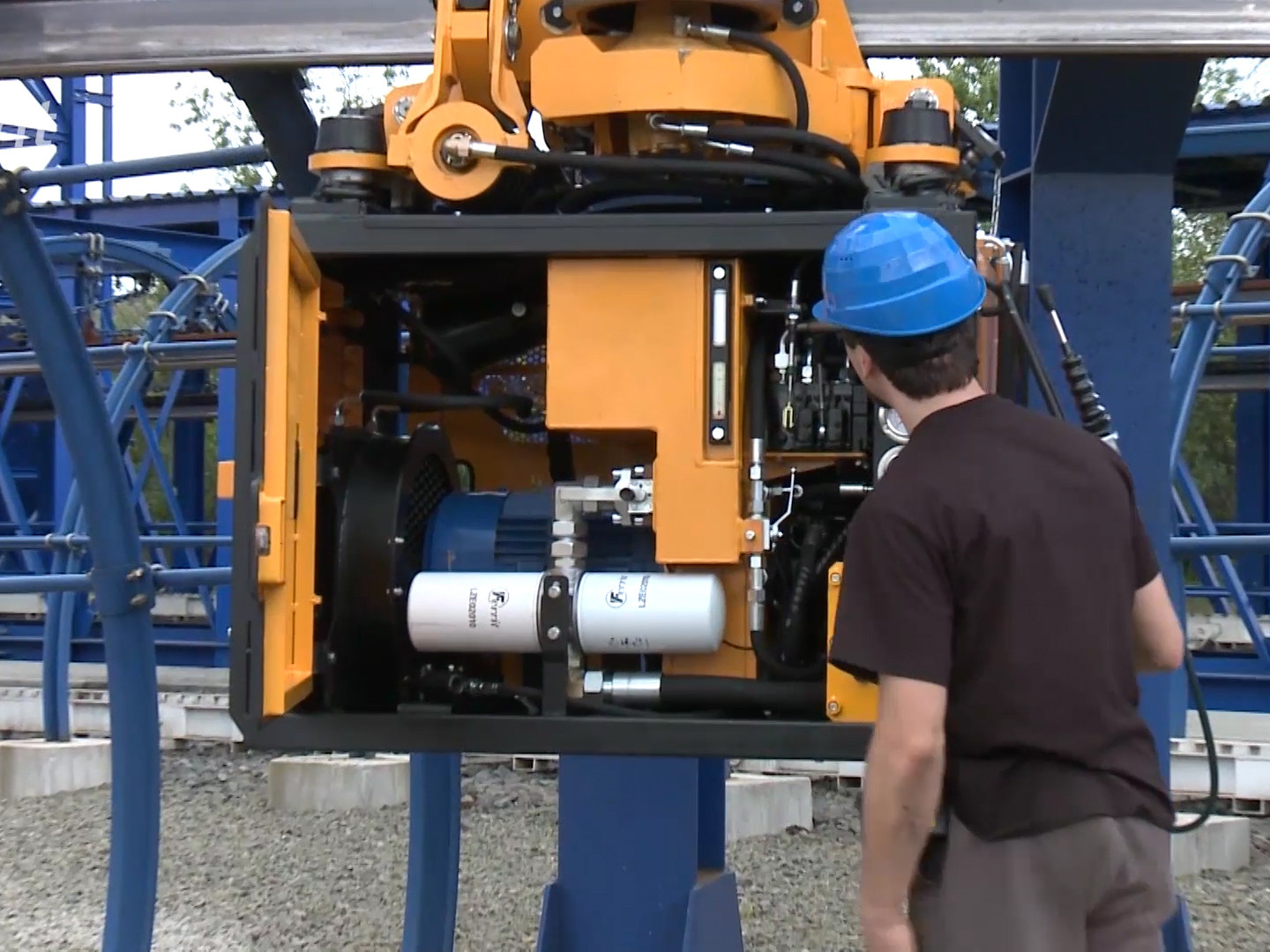

The manipulator is particularly suitable for mining drivage works and for underground material reloading depots. The manipulator is driven by a flameproof electric motor and hydraulic unit, which is used for powering the manipulator´s drive or lifting equipment, such as the NZH2/4 and/or other small auxiliary mechanization equipment (bolt drills, impact wrenches, pick hammers, pumps, etc.).

The manipulator can be operated with a remote control.

SA-MAN-01

Technical parameters

engine power:
5,5 / 7,5 kW
number of drive units:
1
max. speed:
3 km/h
max. traction force:
20 kN

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
