DLZ50F

Suspended Mining Locomotive

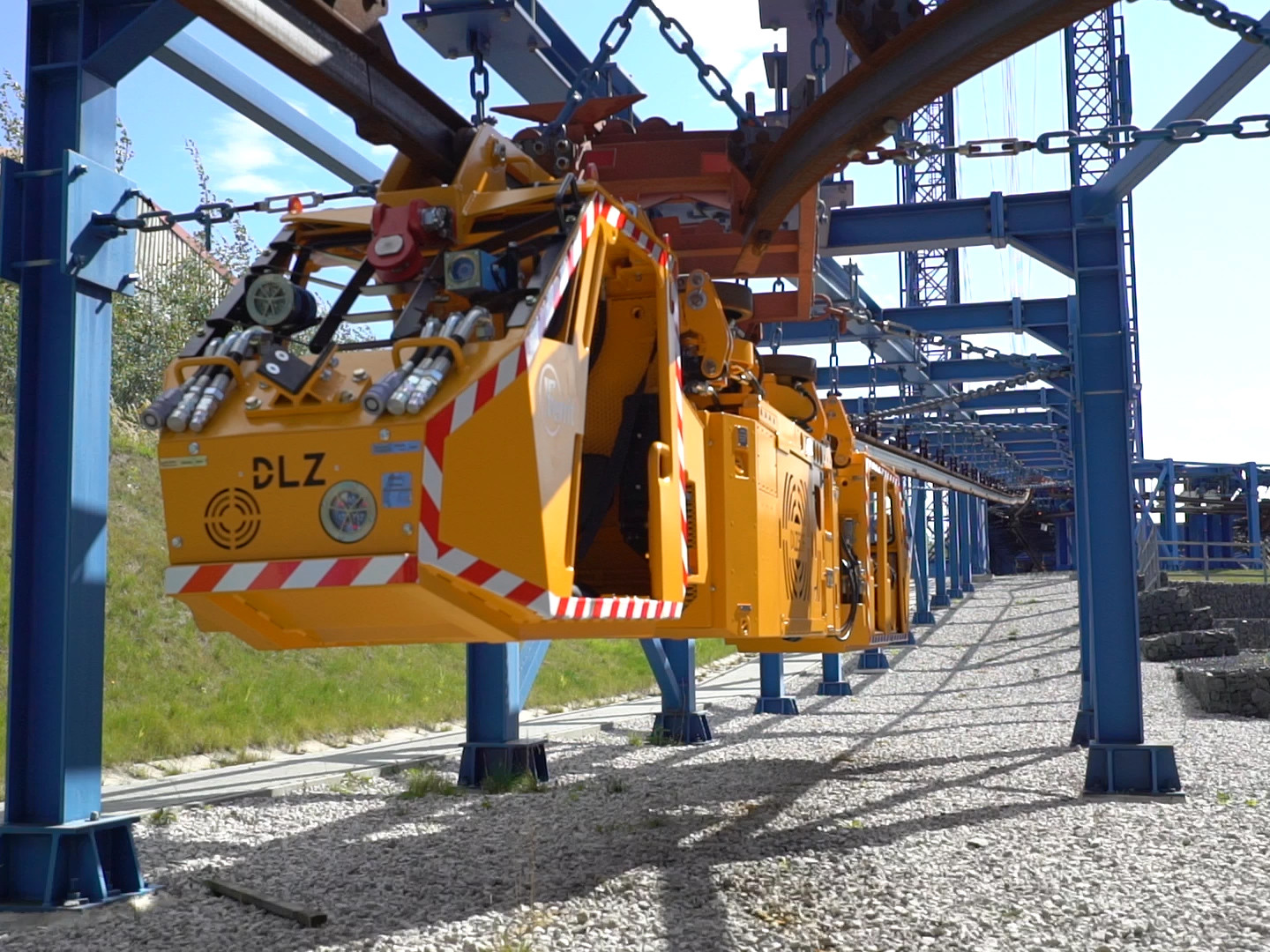

The DLZ50F is an extremely compact, autonomous locomotive for horizontal and inclined (up to ± 30°) transport on suspended monorail tracks with a special „I“ load bearing profile. For use in underground mines and on the surface.

Construction:

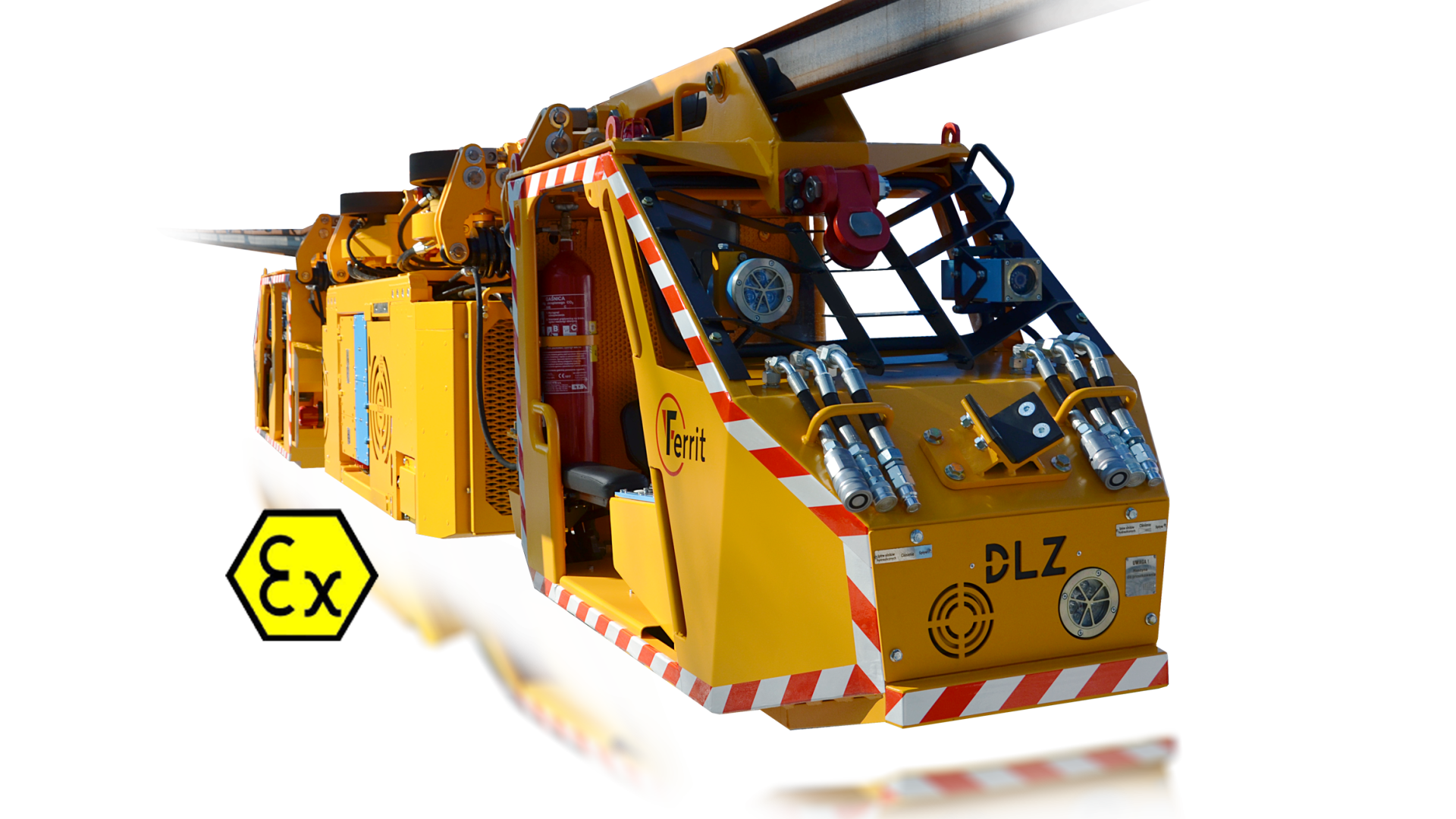

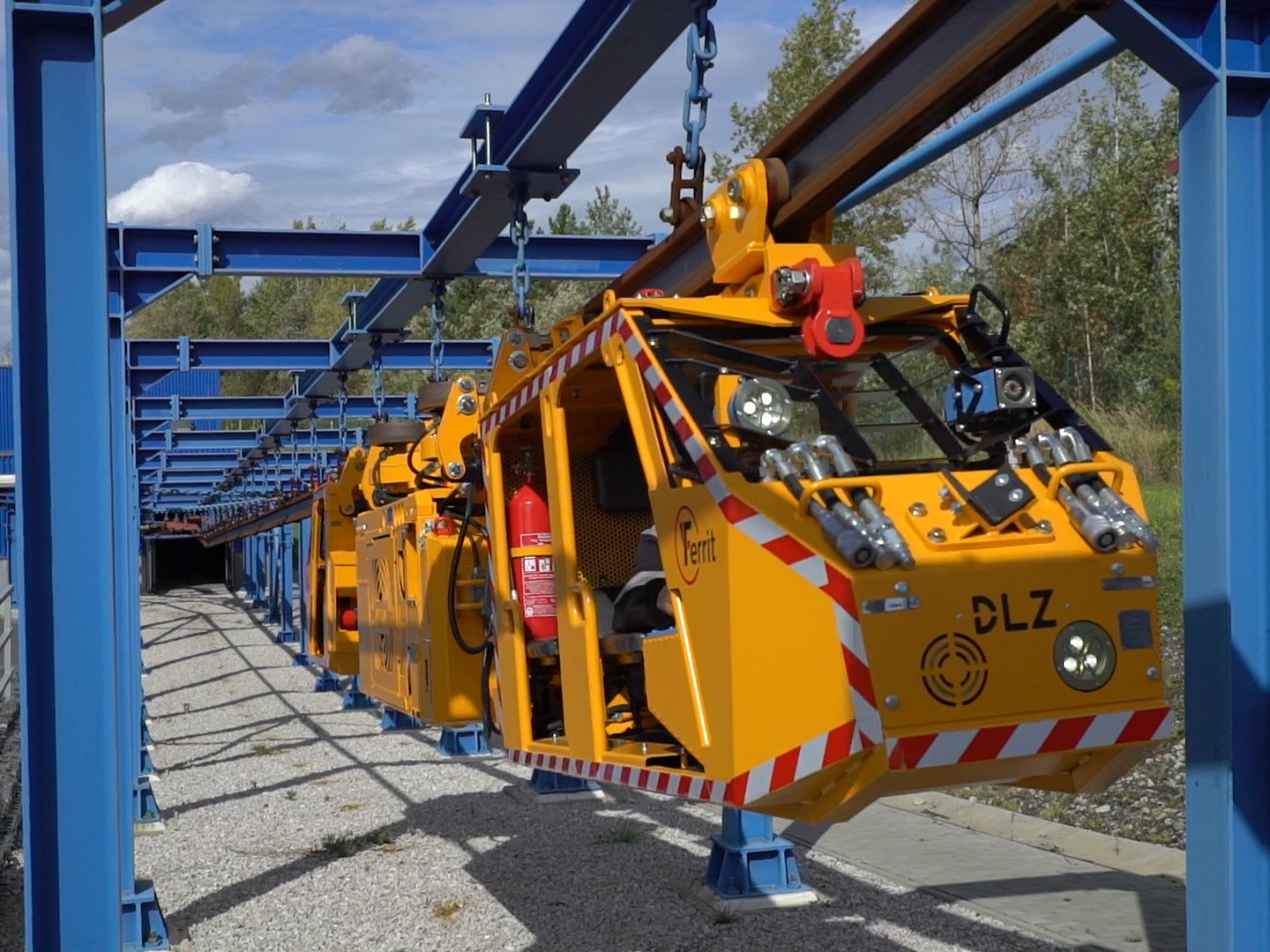

  • Two separate driver's cabins with the option of double cabins (driver + escort)

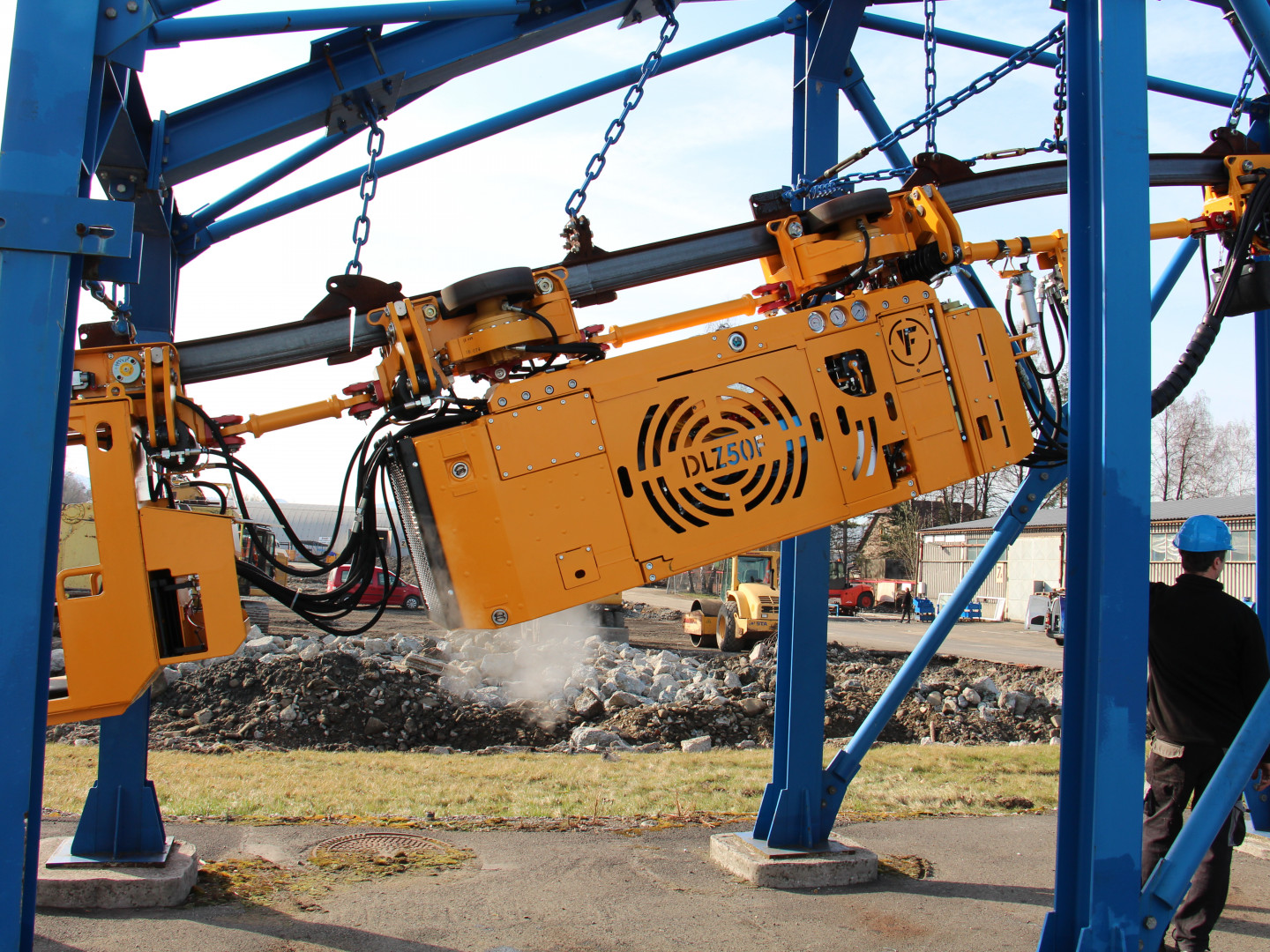

  • Engine section
  • Drive units
  • Special rods interconnect Individual sections

Features:

  • Suitable for fast transport of small volumes of material or personnel
  • Cabins can be quickly disconnected
  • Onboard monitoring and diagnostics of locomotive parameters, i.e. temperatures, level and pressure of operating fluids, locomotive speed, etc.
  • Autonomous communication system
  • Optional camera system available for a comprehensive overview of all areas around the machine
DLZ50F

Technical parameters

engine power:
36 kW
number of drive units:
2
max. speed:
7,2 km/h
max. traction force:
50 kN

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
