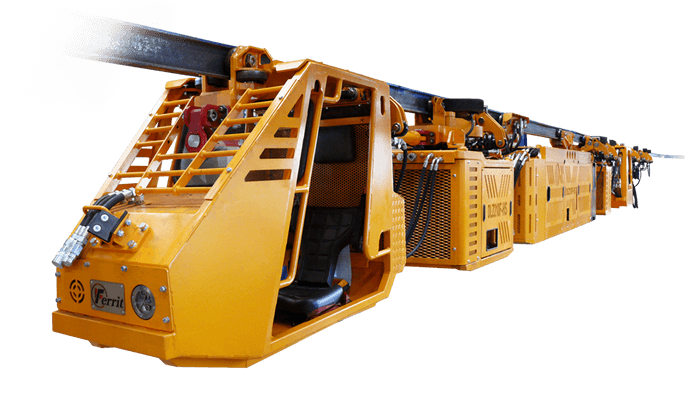

DLZ210F-HS

Suspended Mining Locomotive

The mining suspended monorail locomotive is determined for high-speed train sets transport in underground mines and on the surface in speeds of up to 24 km/h. The locomotive drives on suspended monorail track with profile I140V+N DIN20593 in horizontal plane and inclines of up to ± 5°. The locomotive could work on different monorail track profiles provided the maximum speed will not exceed 12 km/h and inclines of up to  ± 30°.

The locomotive is formed by following parts: two individual drivers´ cabins, an engine section and driving units. Above parts are mutually interconnected by special connecting rods.

Special sets of high-speed transport cabins type SKR01F are determined for transport of persons. High-speed persons transport is subject to number of safety requirements, particularly state of monorail track, max. inclination and radiuses.

DLZ210F-HS

Technical parameters

engine power:
142 kW
number of drive units:
4 - 6
max. speed:
24 km/h
max. traction force:
96 - 144 kN

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
