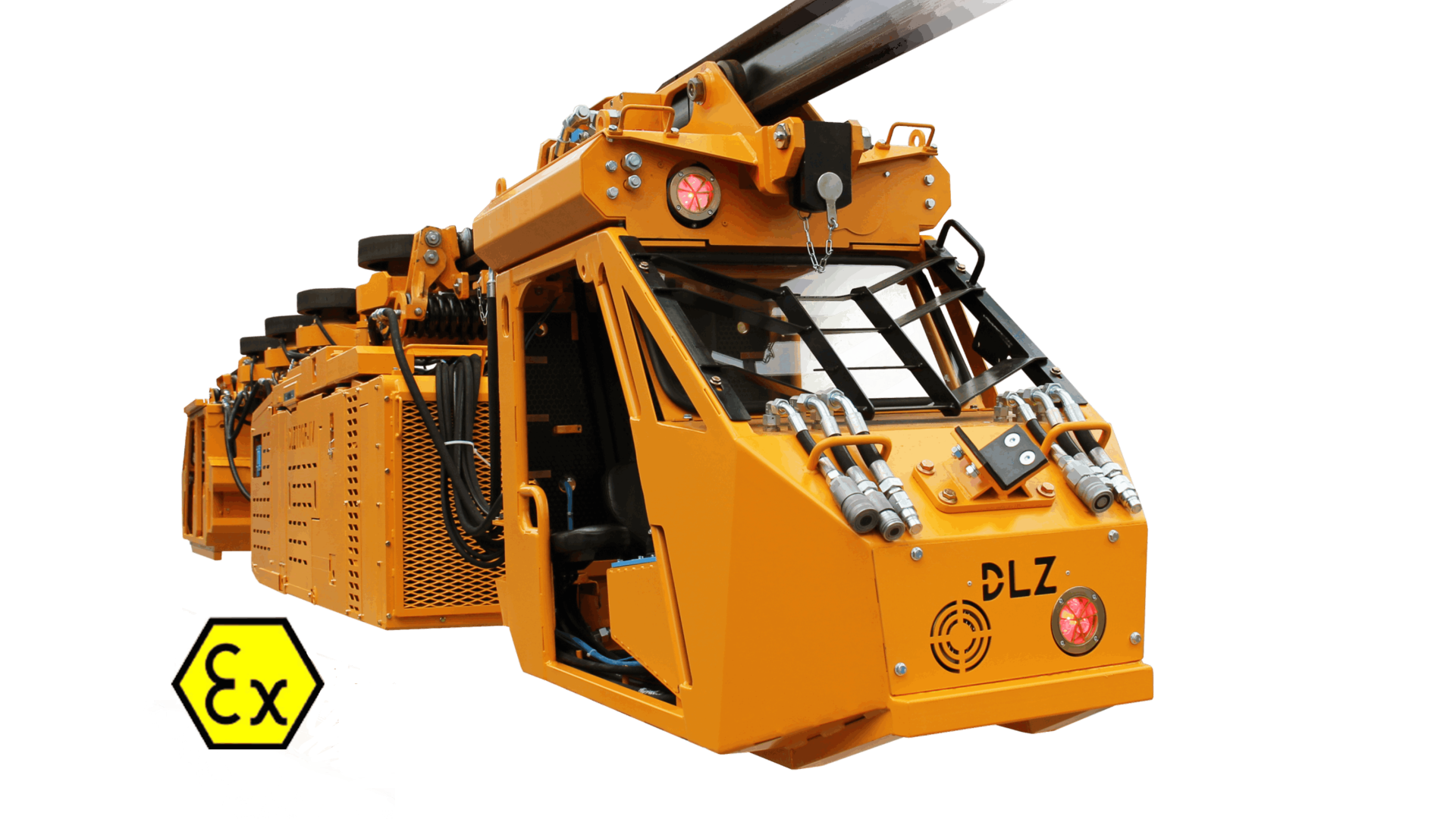

DLZ110F-IV

Suspended Mining Locomotive

The DLZ110F-IV is the latest suspended monorail locomotive in the DLZ series and the next generation of one of our most popular locomotives - the DLZ110F-II.

Modern DLZ110F-IV compared to the previous DLZ110F-II generation:

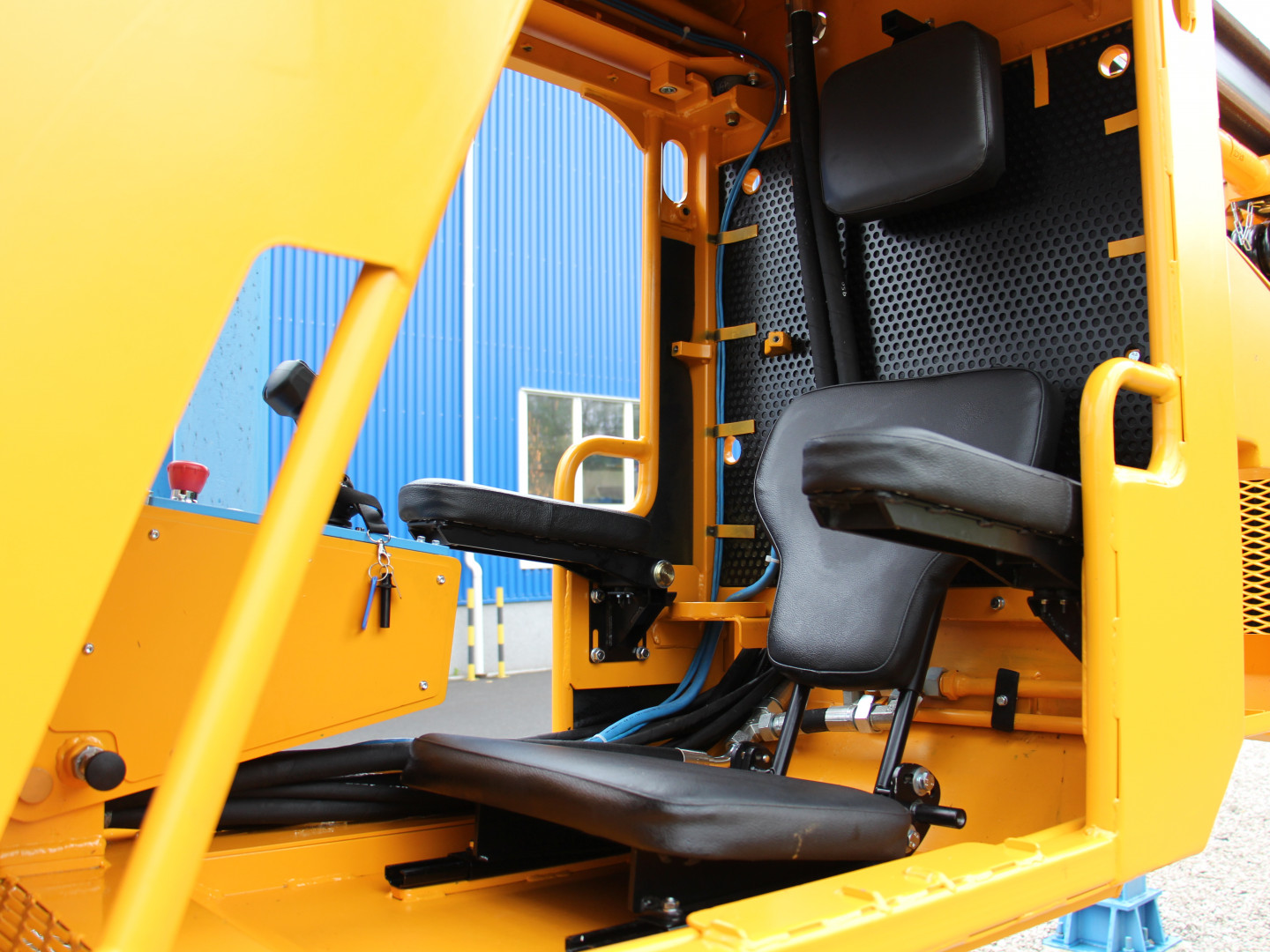

  • All new driver's cabin equipped with a new carrier truck with its own brake
  • 20 liter increase in fuel tank capacity
  • 15 liter increase in hydraulic tank capacity
  • 54% higher cooling efficiency of coolant
  • 12% higher cooling efficiency of hydraulic fluid
  • Advanced automatic control and signaling system (coming from the DLZ130F locomotive)

Additional features:

  • Modular construction
  • Up to five additional drive units available

By combining the best features of the original DLZ110F locomotive and the modern DLZ130F locomotive, we offer you a reliable and modern transport solution for your most demanding mining conditions.

DLZ110F-IV

Technical parameters

engine power:
81 kW
number of drive units:
4 - 7
max. speed:
7,2 km/h
max. traction force:
160 kN

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
