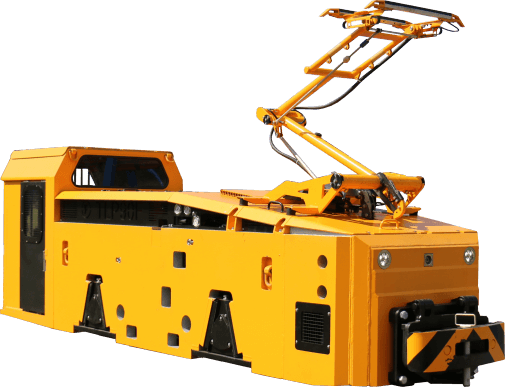

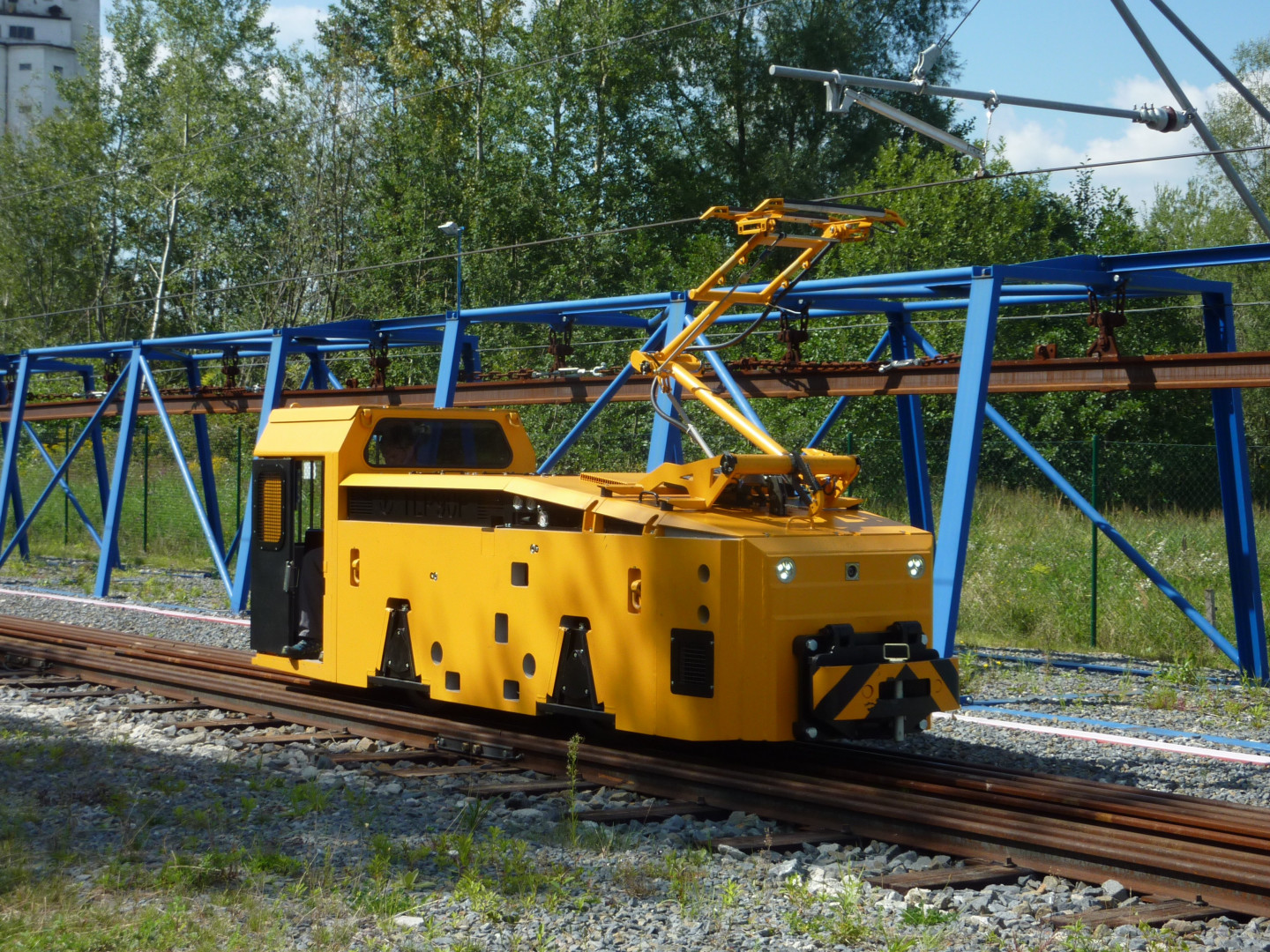

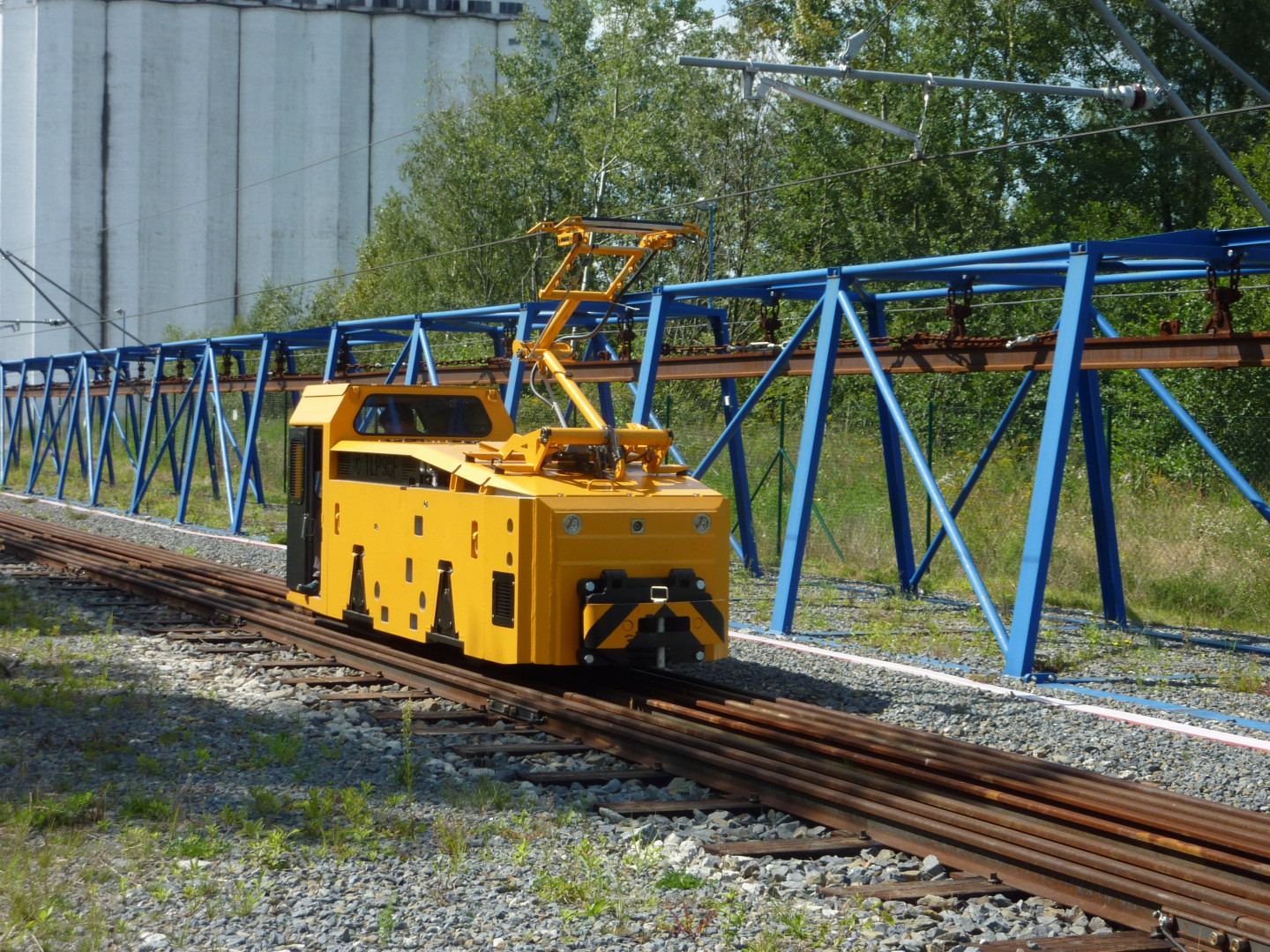

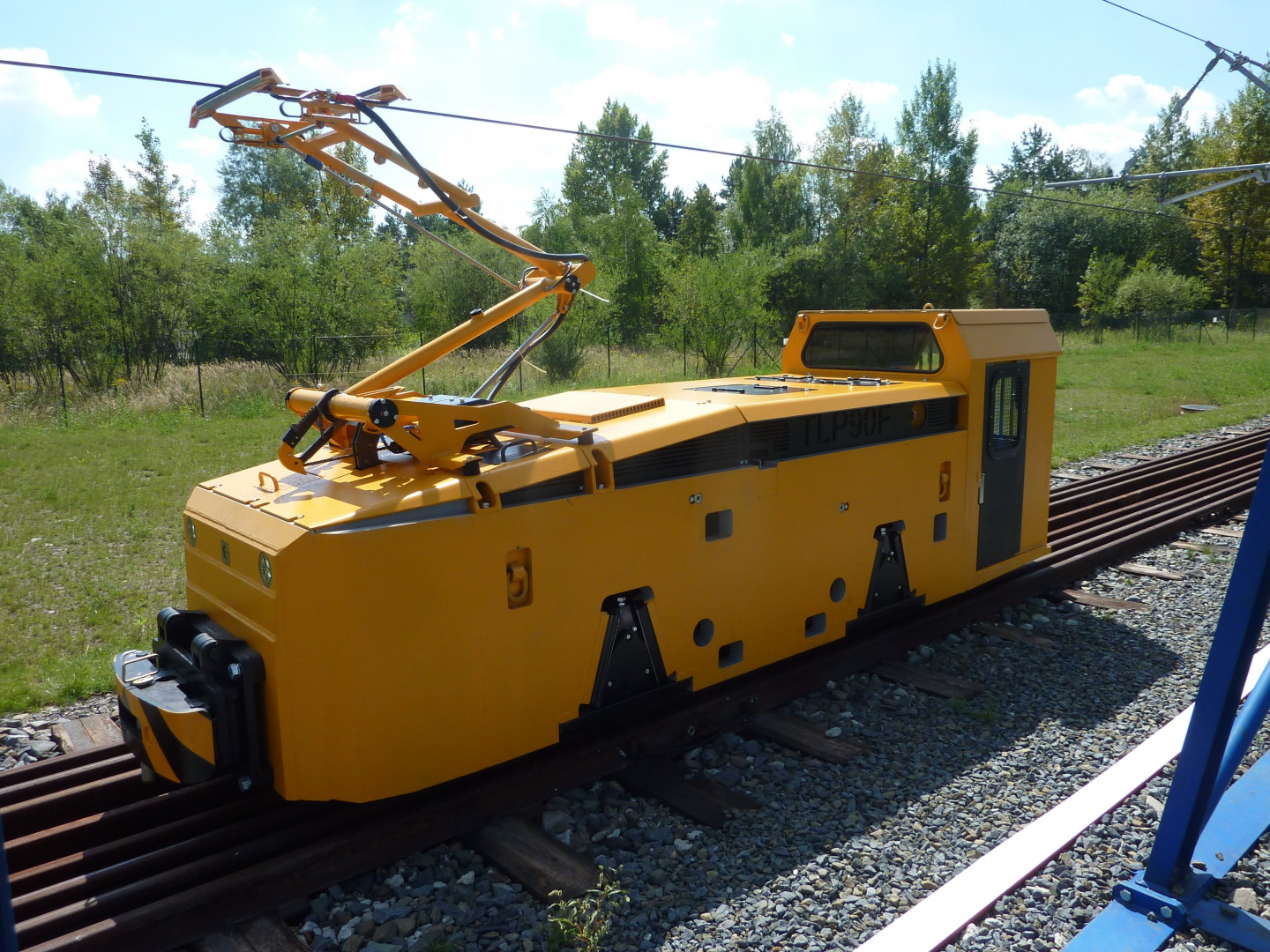

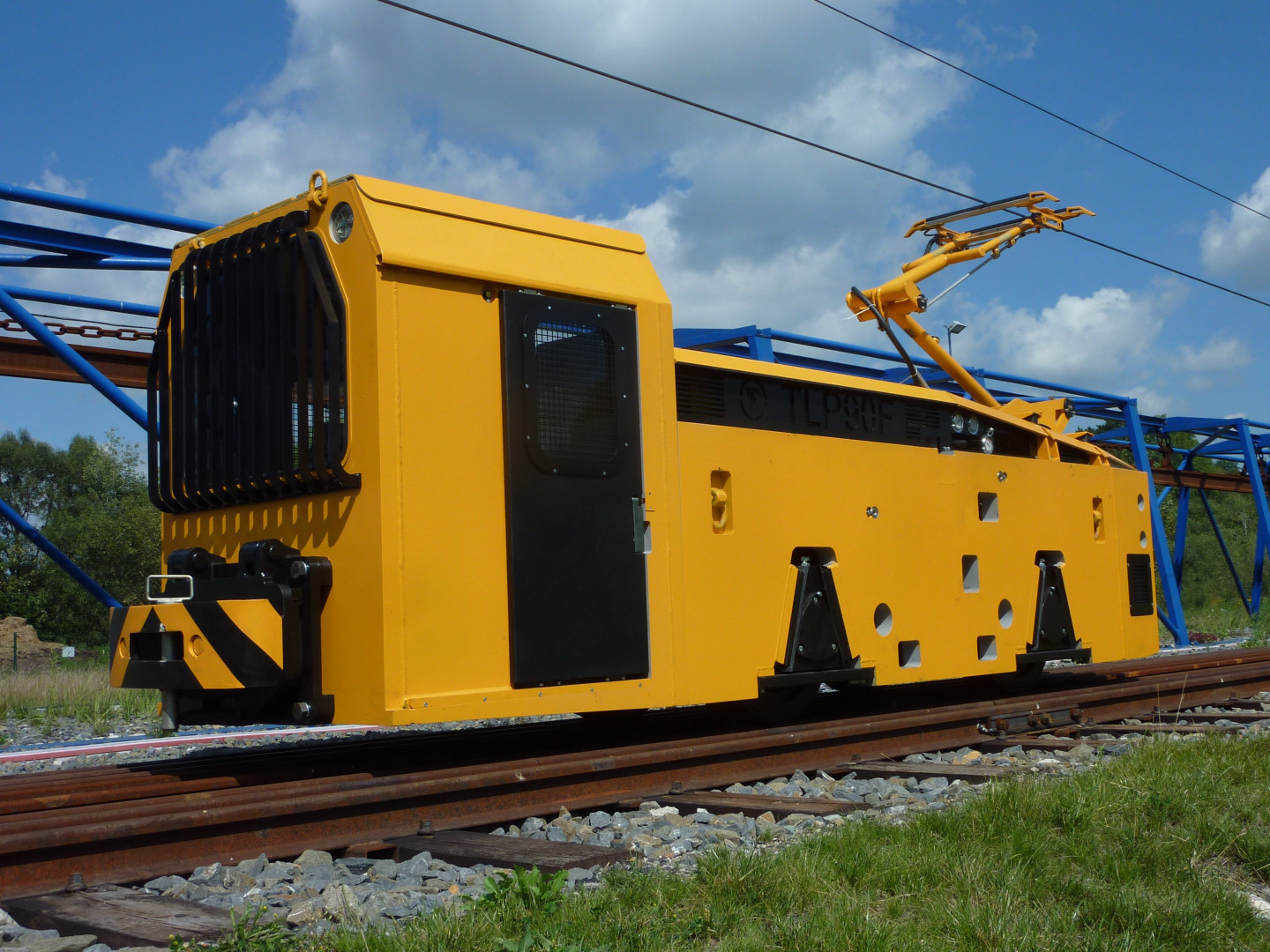

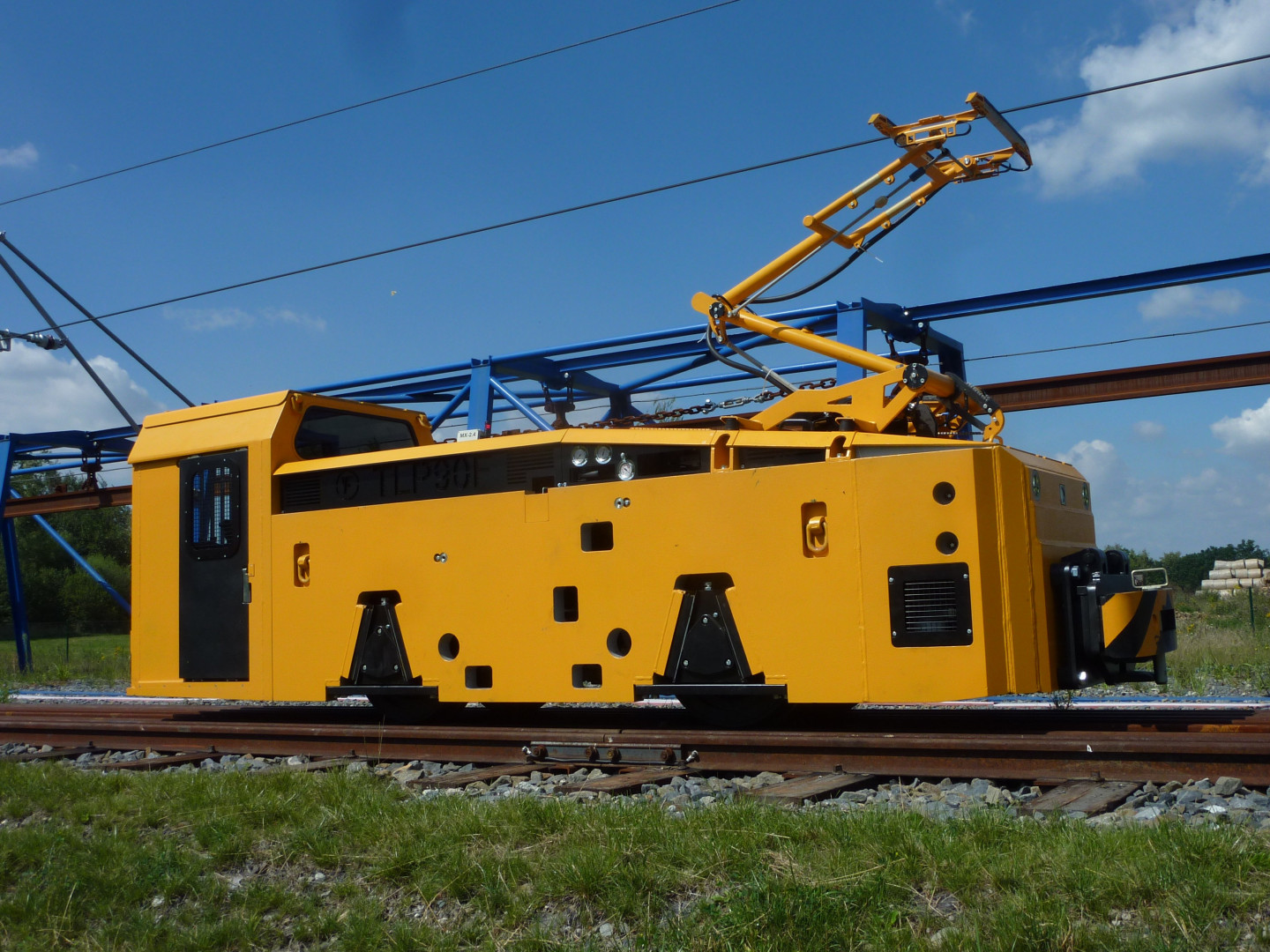

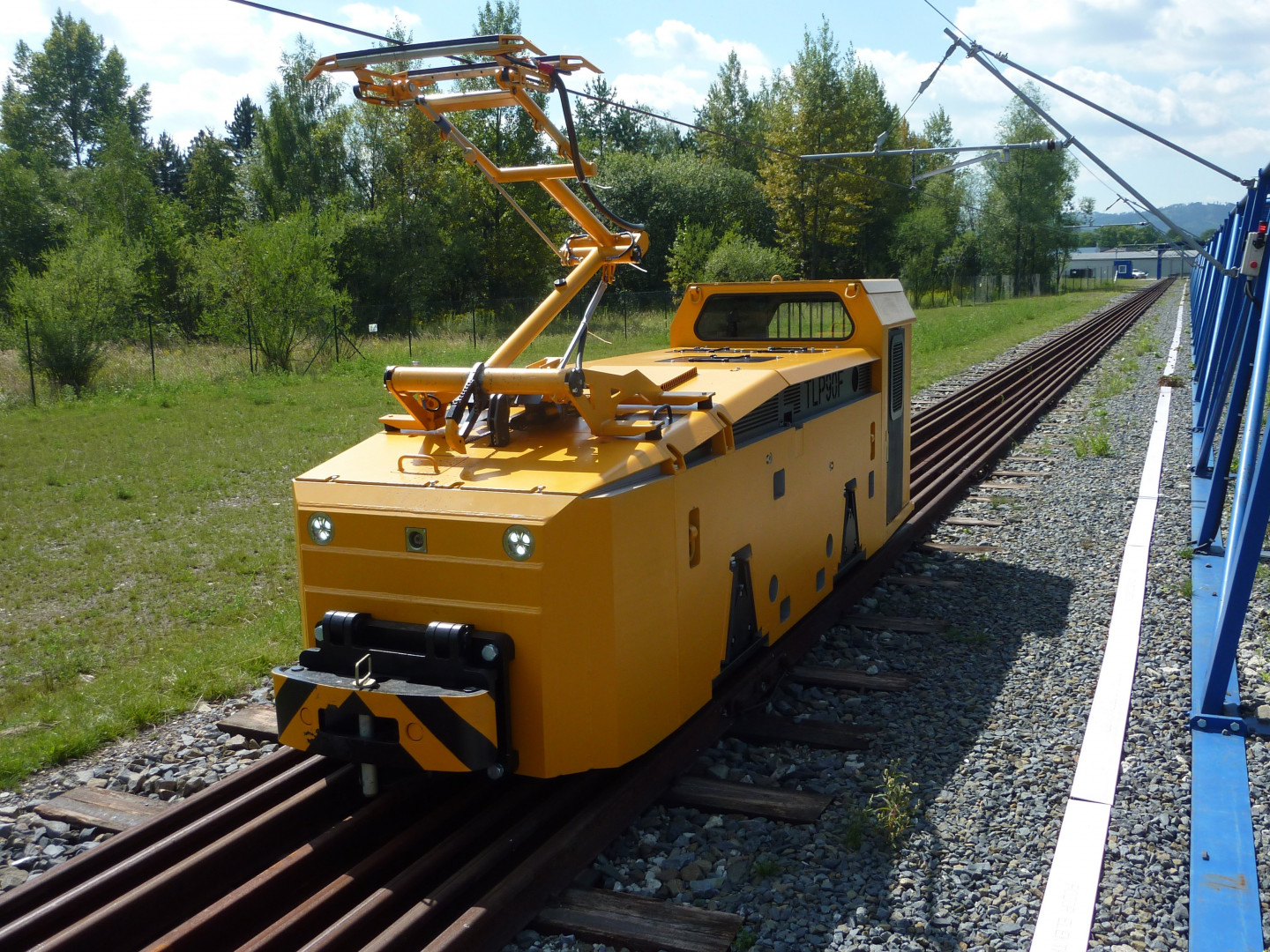

TLP90F

Ground Trolley Locomotive

The TLP90F Ground Trolley Locomotive is intended for the transport of material or persons in horizontal mining roadways without the risk of coal dust and gas explosions. The locomotive is designed for running on railway tracks with a maximum inclination of 50 ‰.

The locomotive can be disassembled into two units (driver's cab, machinery part of the locomotive - engine area) to facilitate its transport to the mining workplace. The locomotive is controlled from the driver's cab, which is equipped with control, monitoring and safety elements, as well as other devices, to ensure its safe operation. The cab design guarantees the operator has a good view of the track and reliable protection against accidents and adverse external influences.

TLP90F

Technical parameters

engine power:
2 x 55 kW
max. traction force:
40 kN
gauge:
750 mm
total weight:
14,5 t

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
