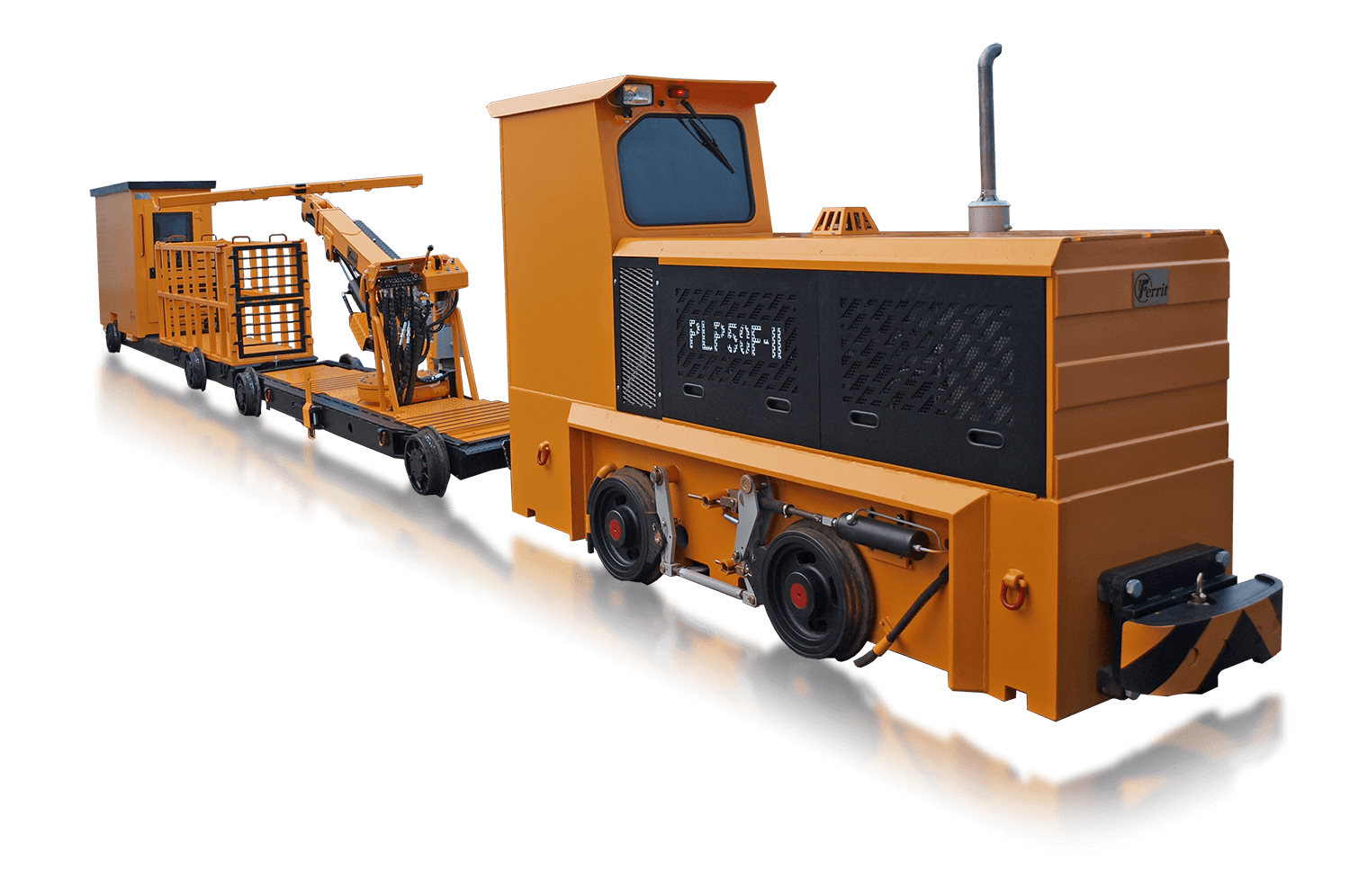

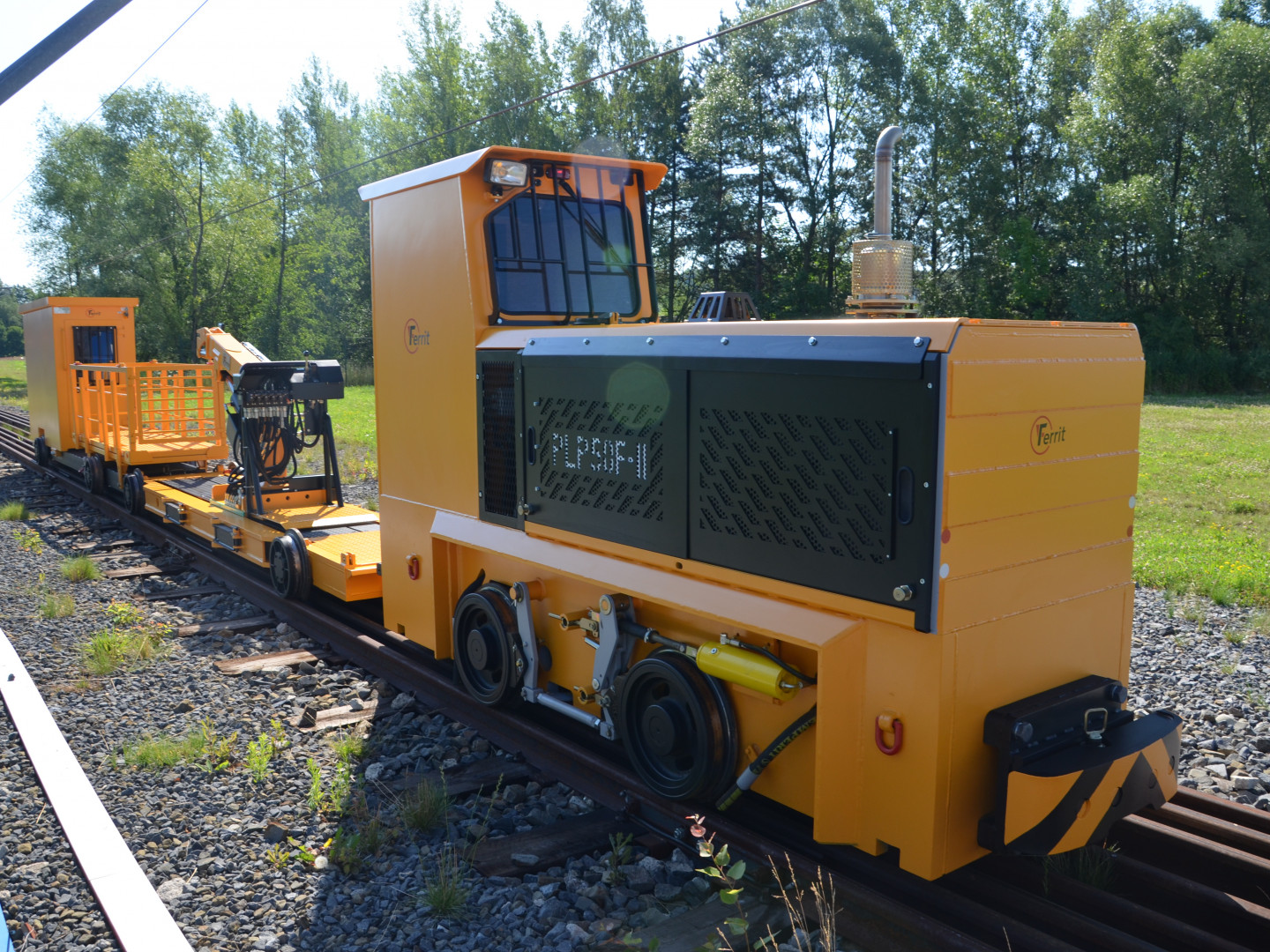

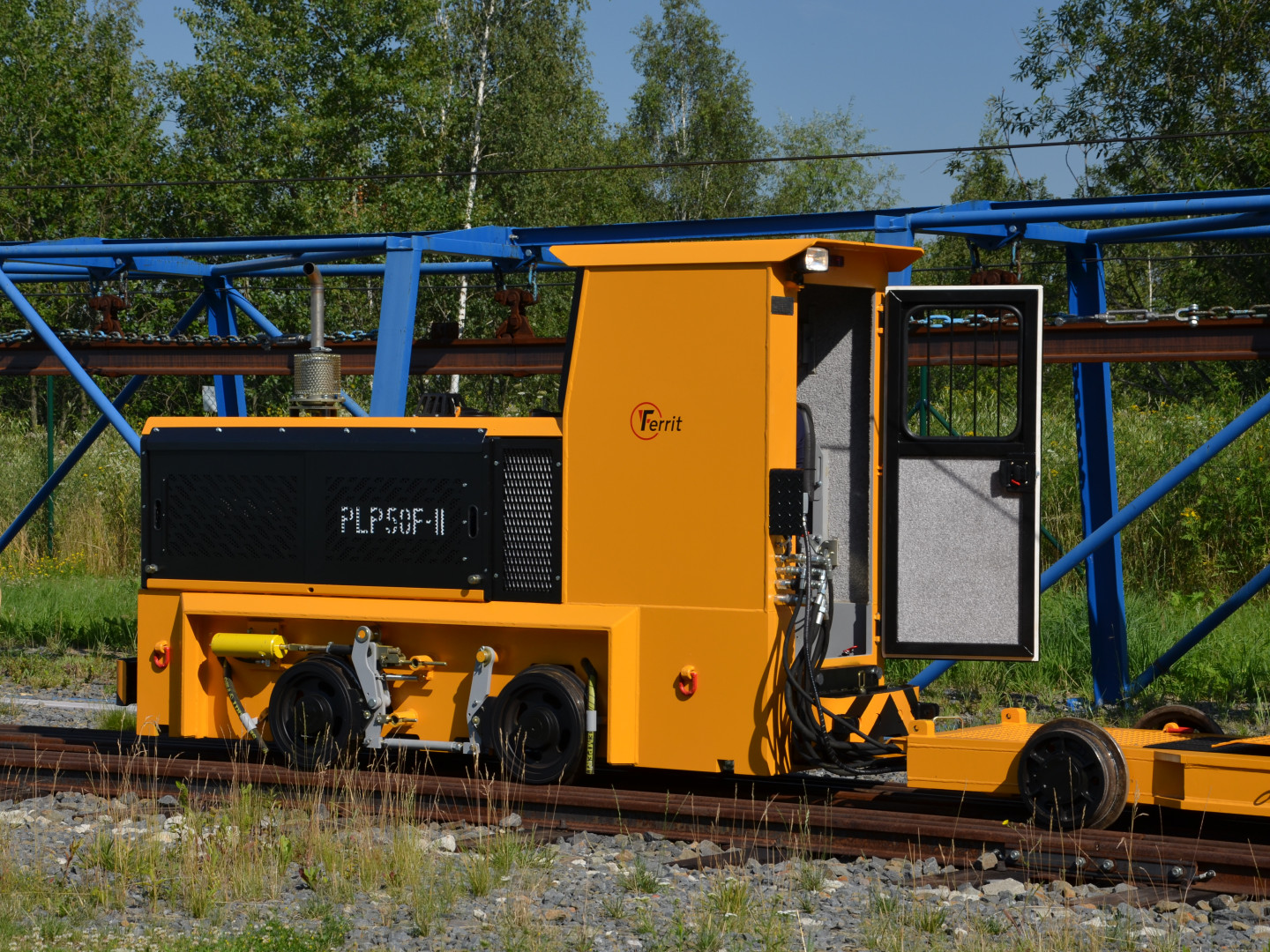

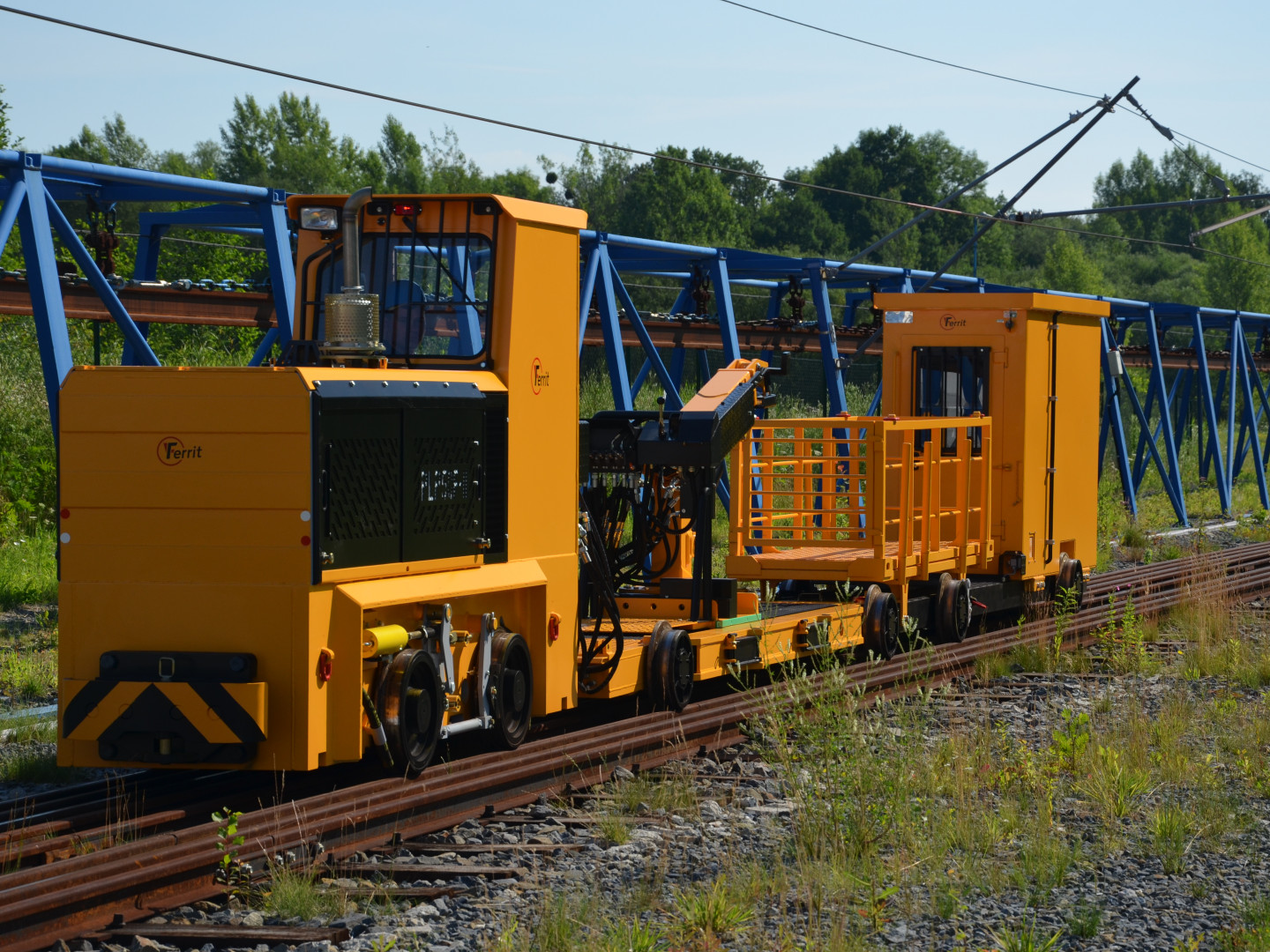

PLP50F-II

Ground Rail Locomotive

The PLP50F-II Ground Rail Locomotive is traction equipment designed for transport of material or persons in open pit mines on 900mm gauge tracks at track gradients of up to 35‰.

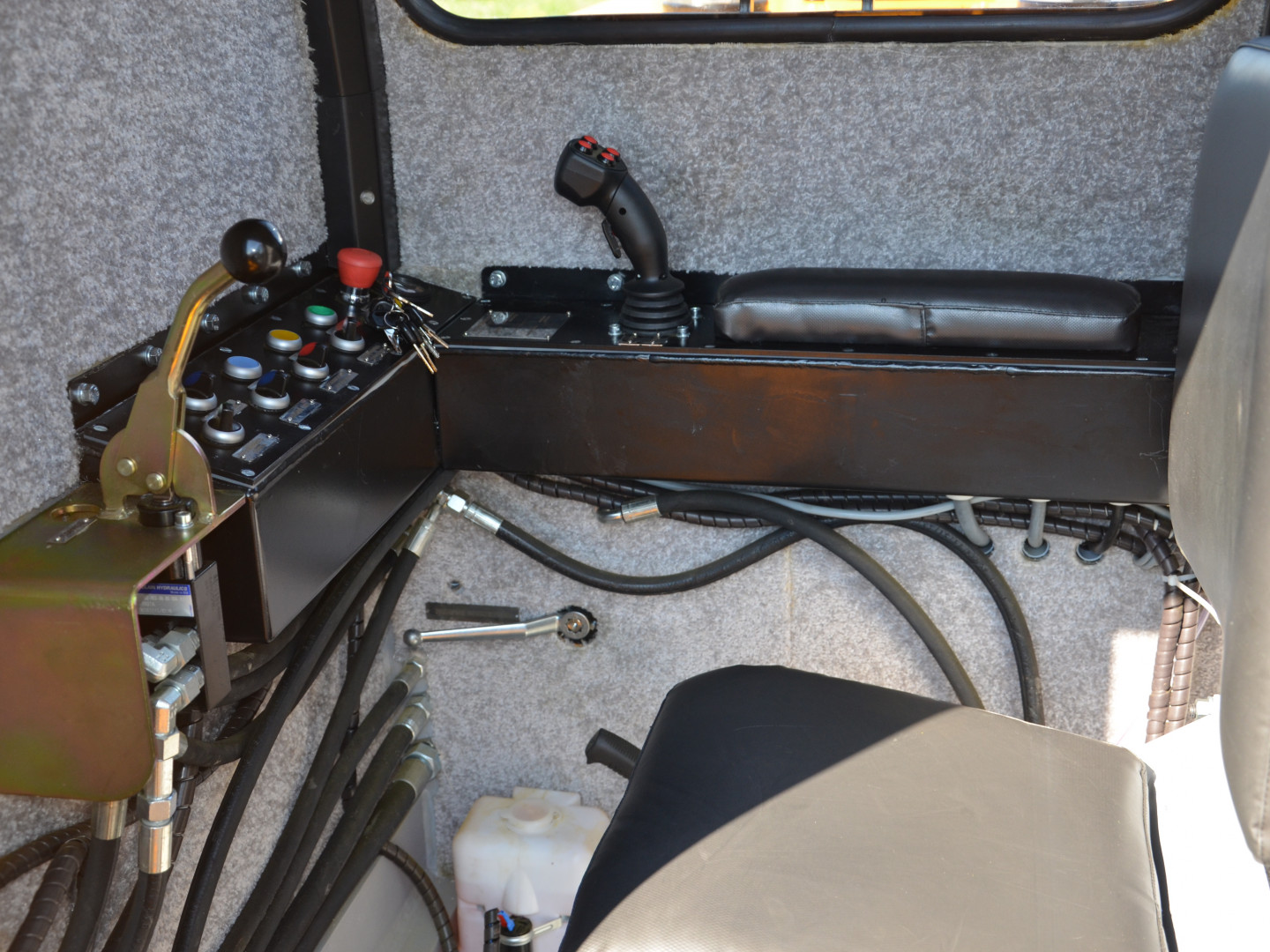

The locomotive is separable into two main units in order to facilitate its transport to the mining site. It is controlled from a cabin, which is equipped with control, monitoring and safety elements, as well as other devices, to ensure its safe operation. The cabin design guarantees the operator has a good view of the track and reliable protection against injury and adverse external conditions.

PLP50F-II

Technical parameters

engine power:
36 kW
max. traction force:
14 kN
gauge:
900 mm
total weight:
5 t

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
