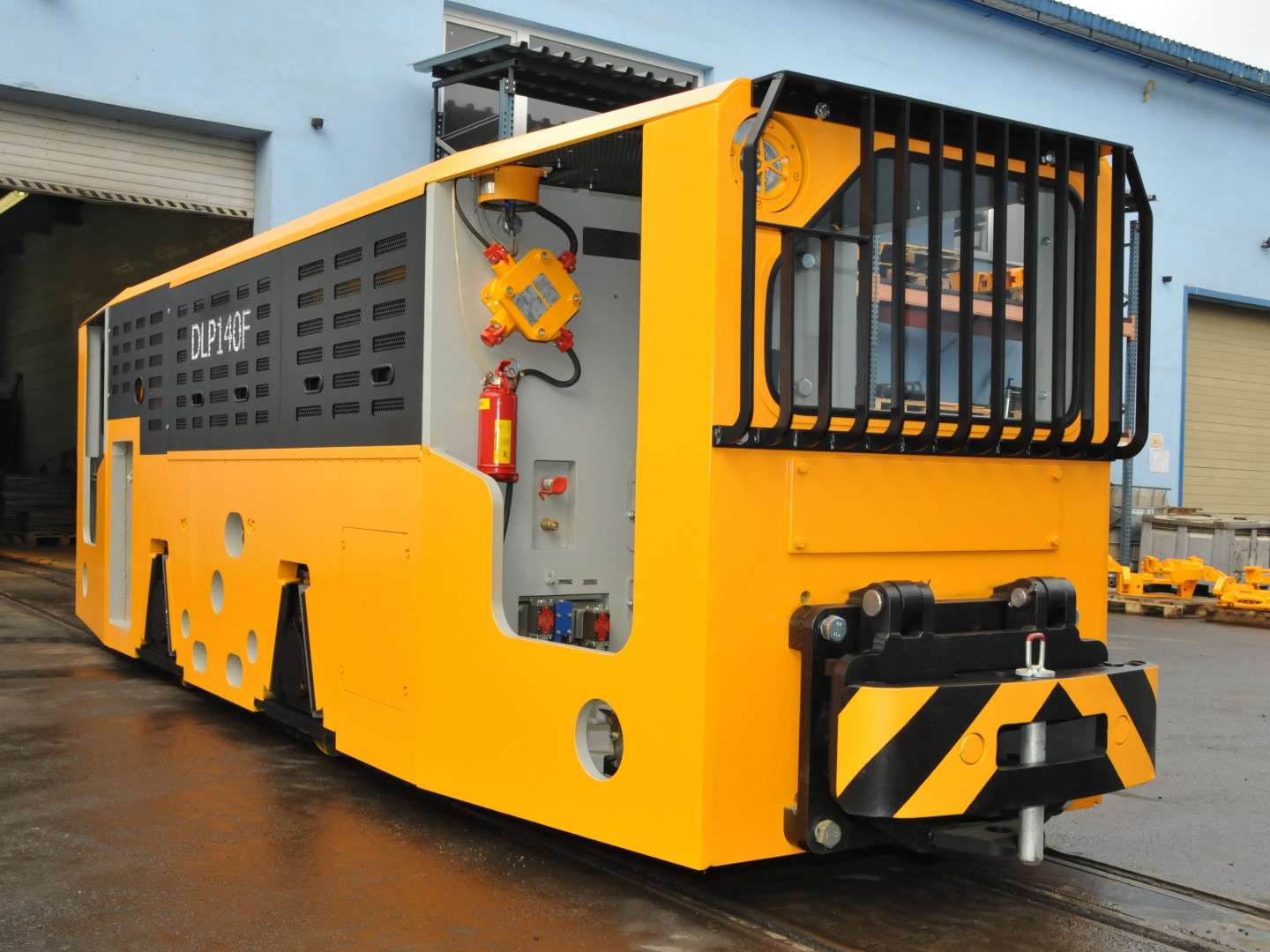

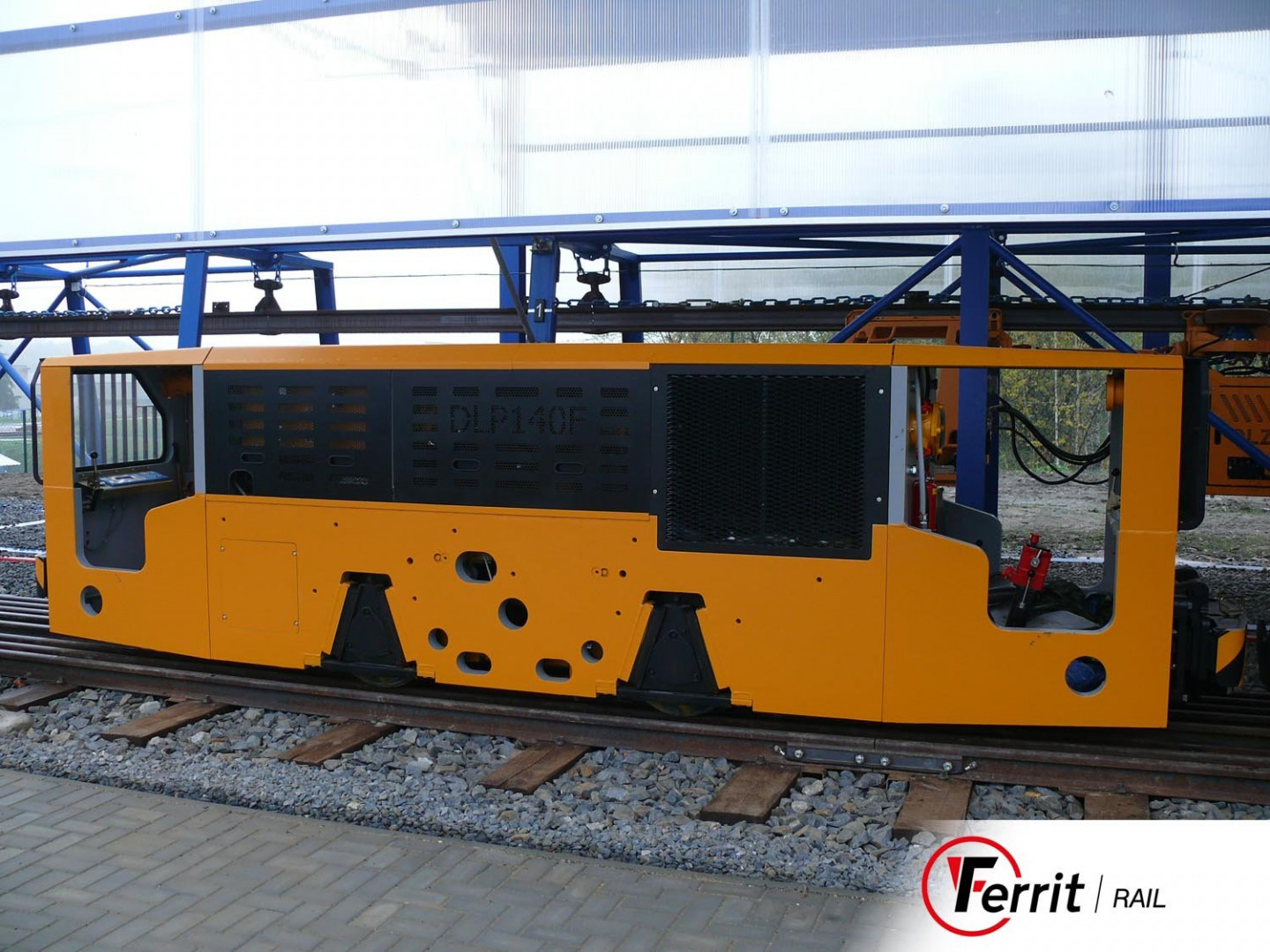

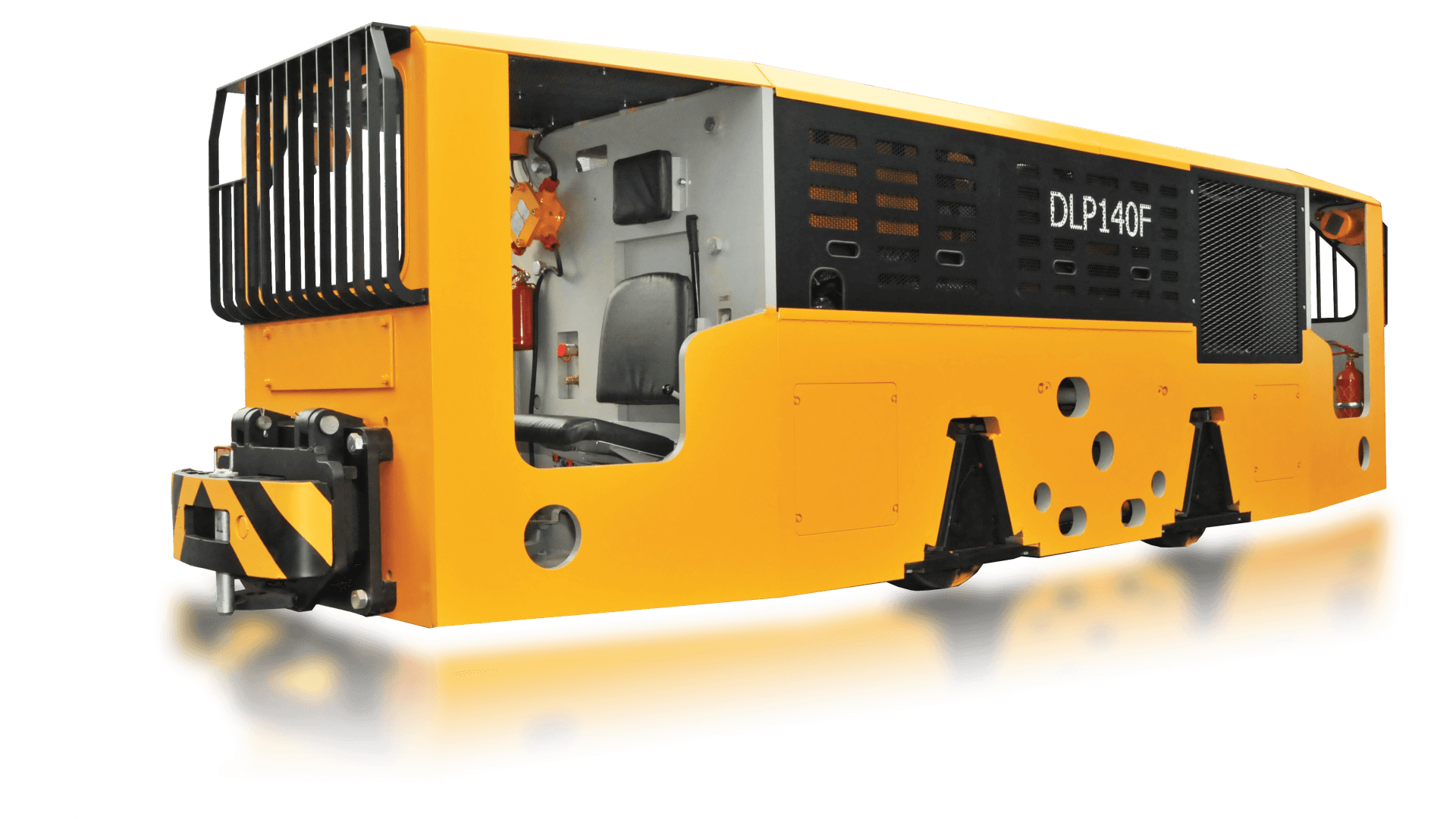

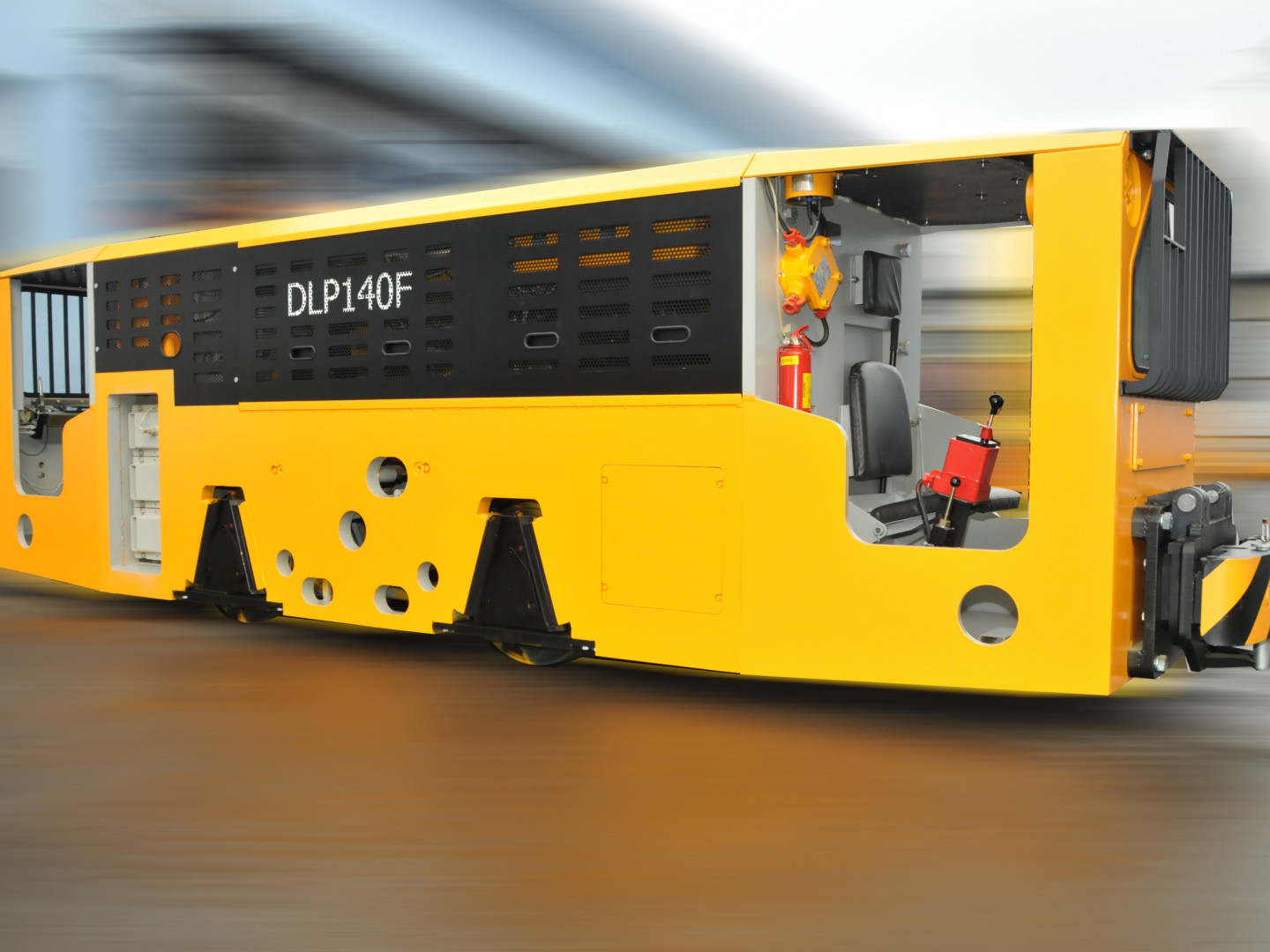

DLP140F

Ground Rail Locomotive

The DLP140F Ground Rail Locomotive is designed for transport of material or persons in horizontal mine or surface roadways on 550-900 mm gauge rail tracks with a max. track inclination of up to 35 ‰.

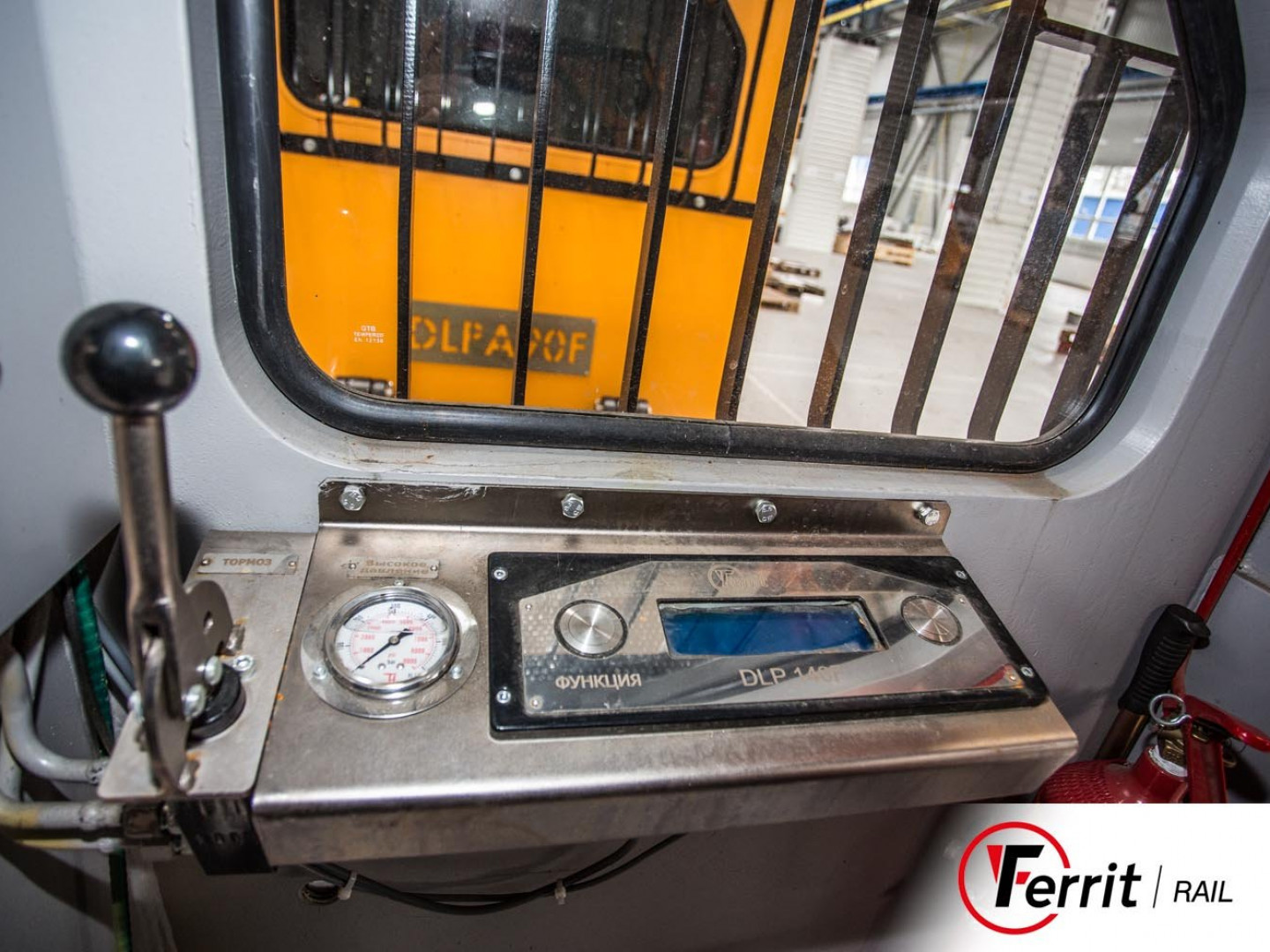

The locomotive can be separated into three main units in order to facilitate its transport to the mining site. It is controlled from 2 driver´s cabins, which are equipped with control, monitoring and safety elements, as well as other devices, to ensure its safe operation. The cabin design guarantees the operator has a good view of the track and reliable protection against injury and adverse external conditions.

DLP140F

Technical parameters

engine power:
104 kW
max. traction force:
40 kN
gauge:
550, 600, 620-630, 750, 900 mm
total weight:
15,5 t

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
