DNK10F

LHD Loader

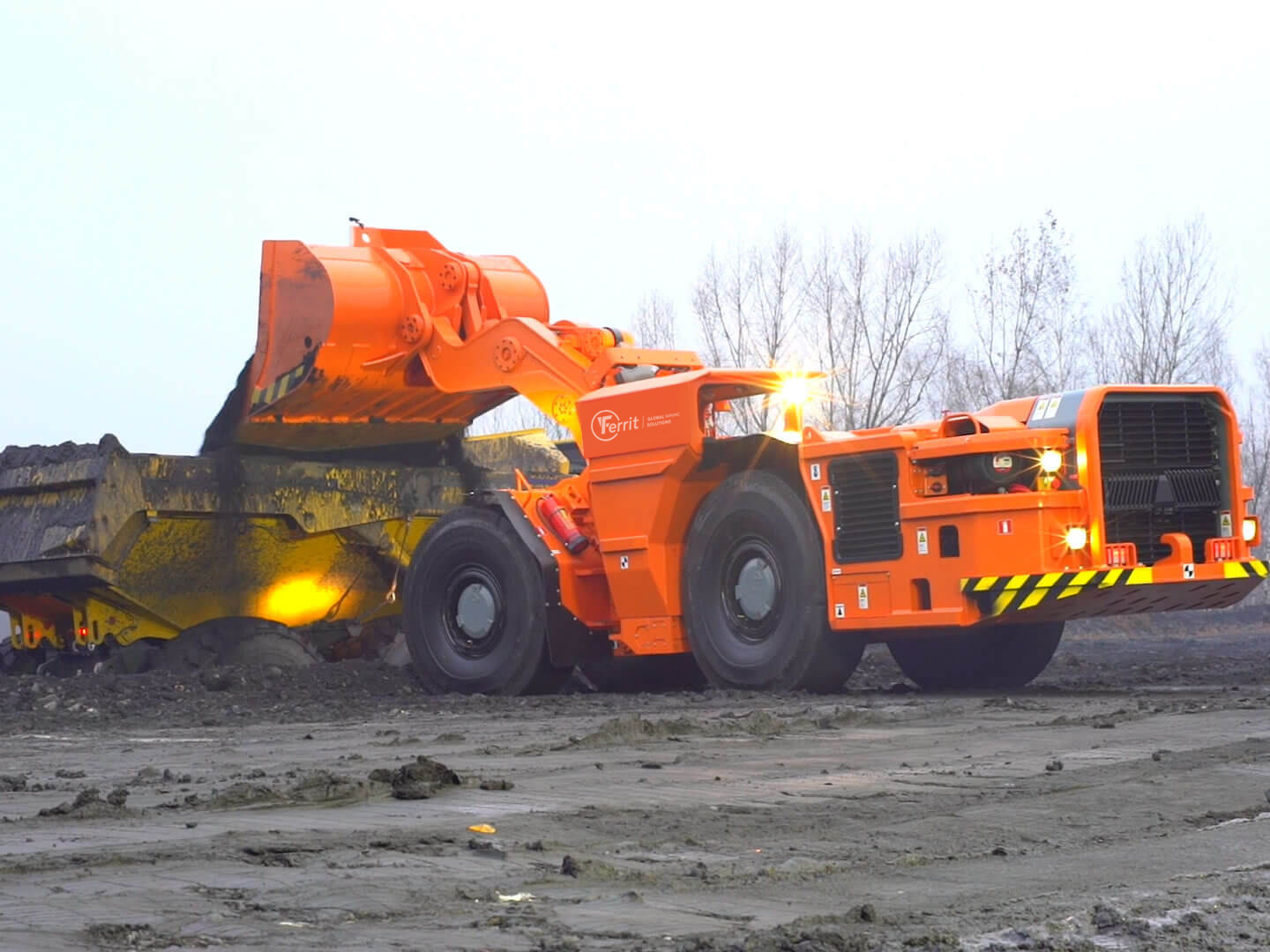

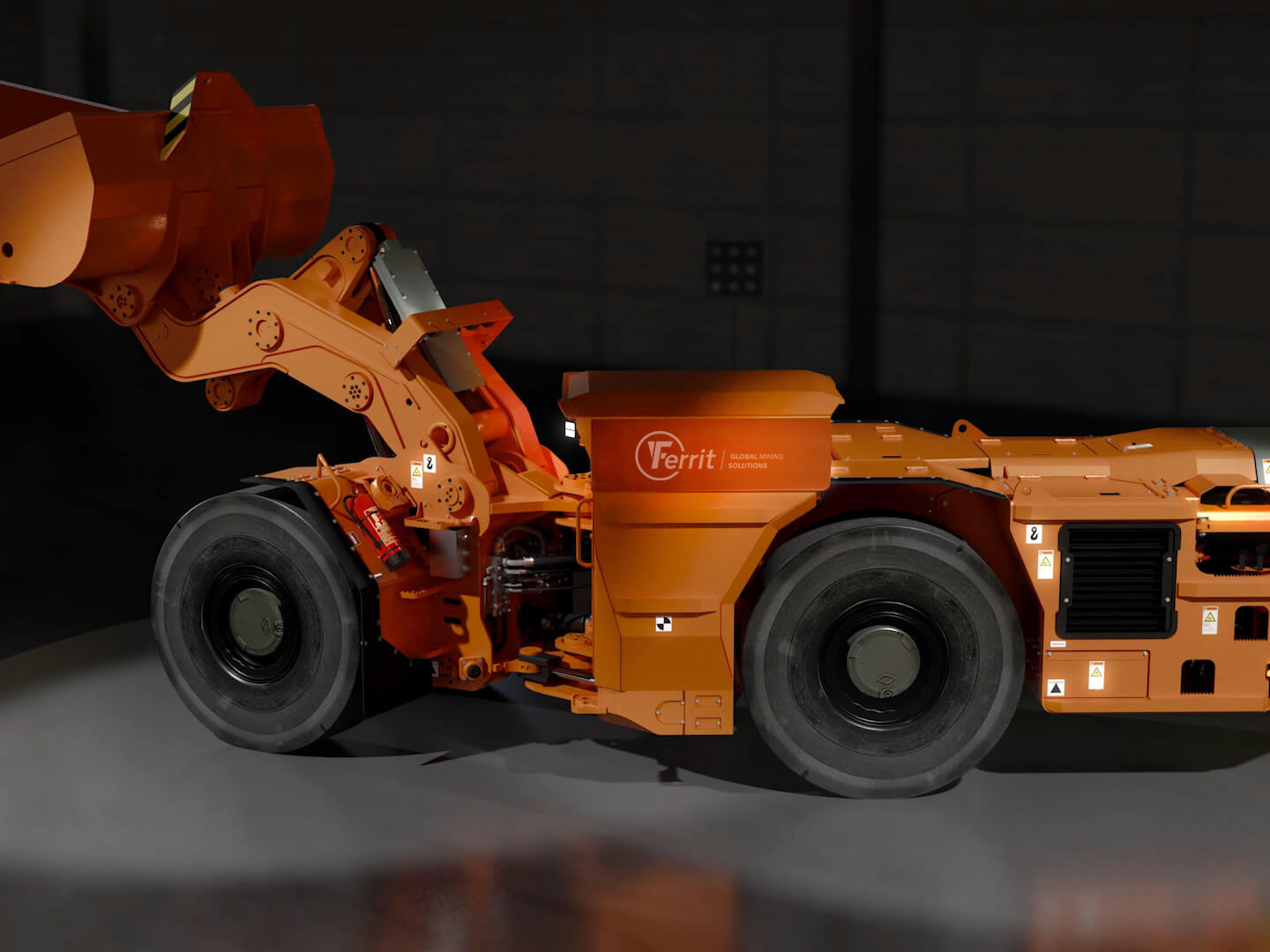

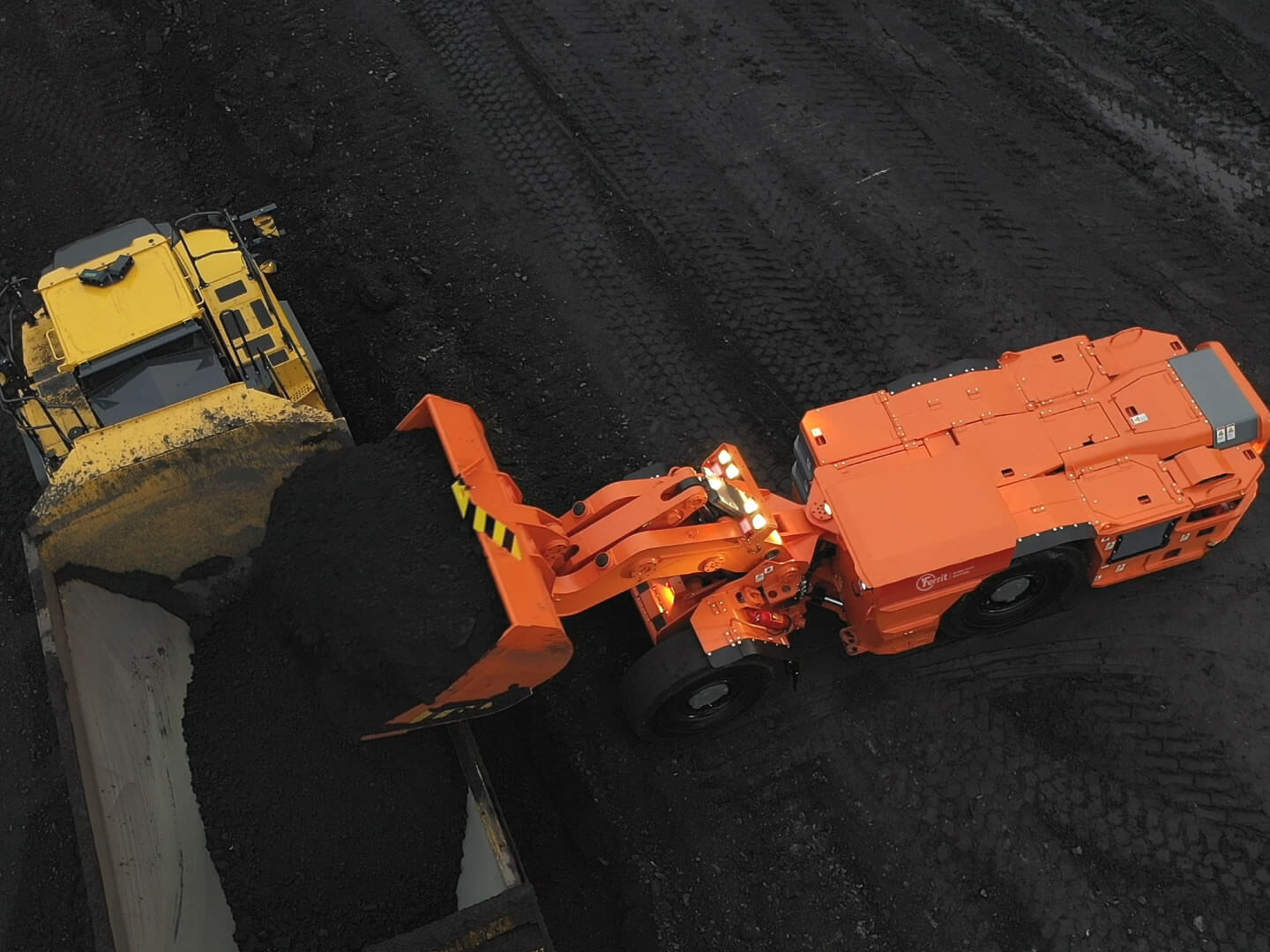

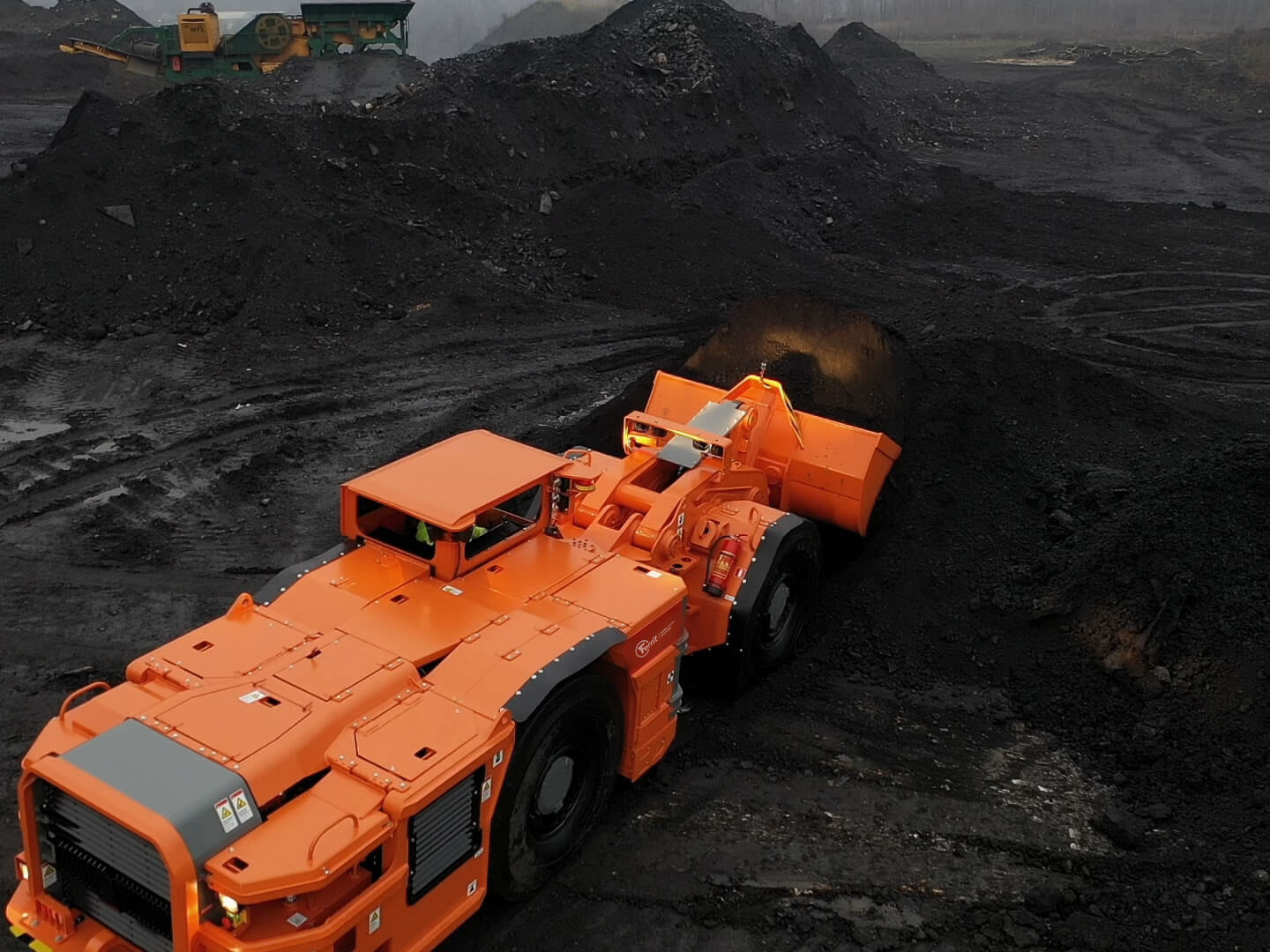

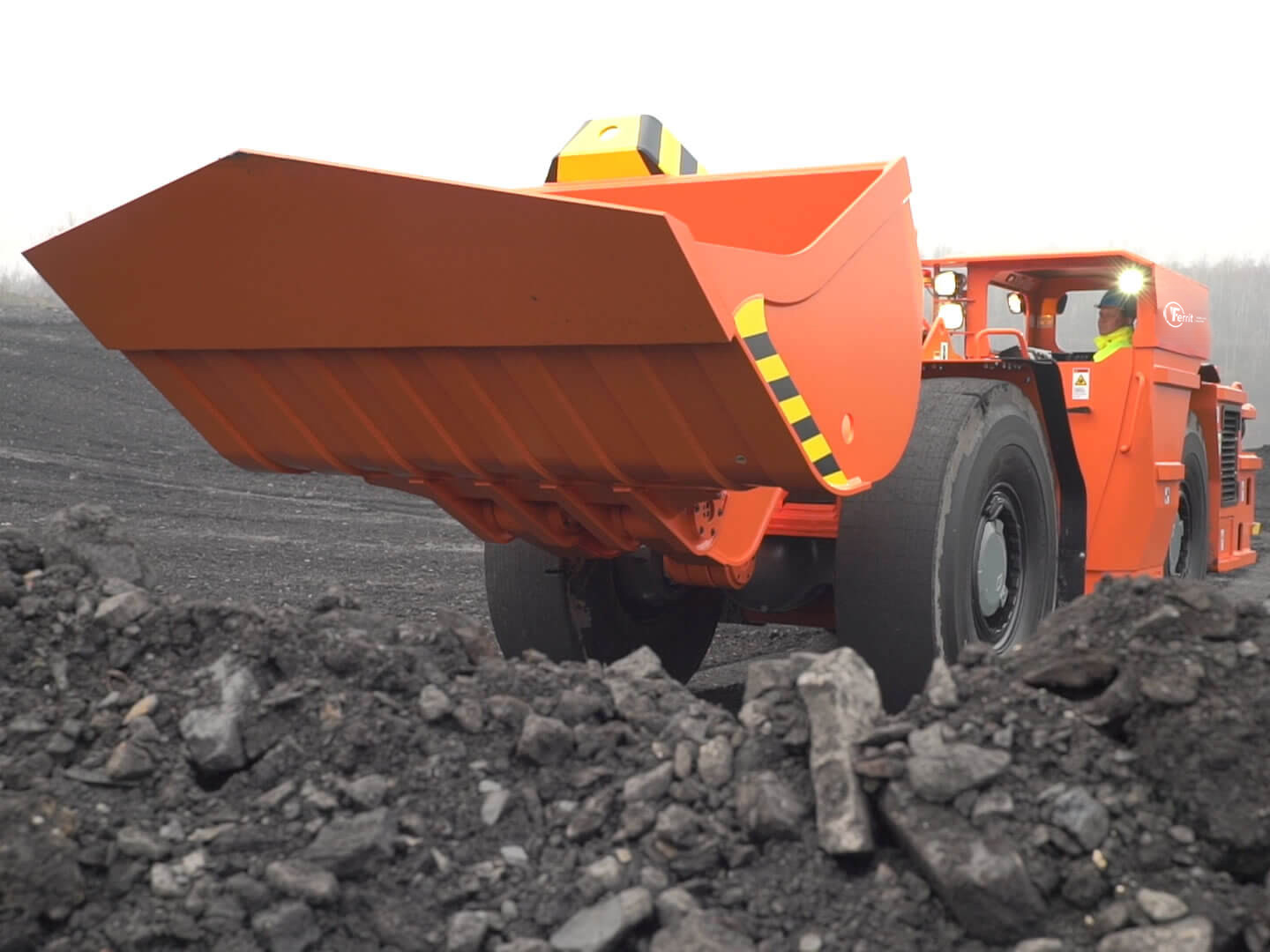

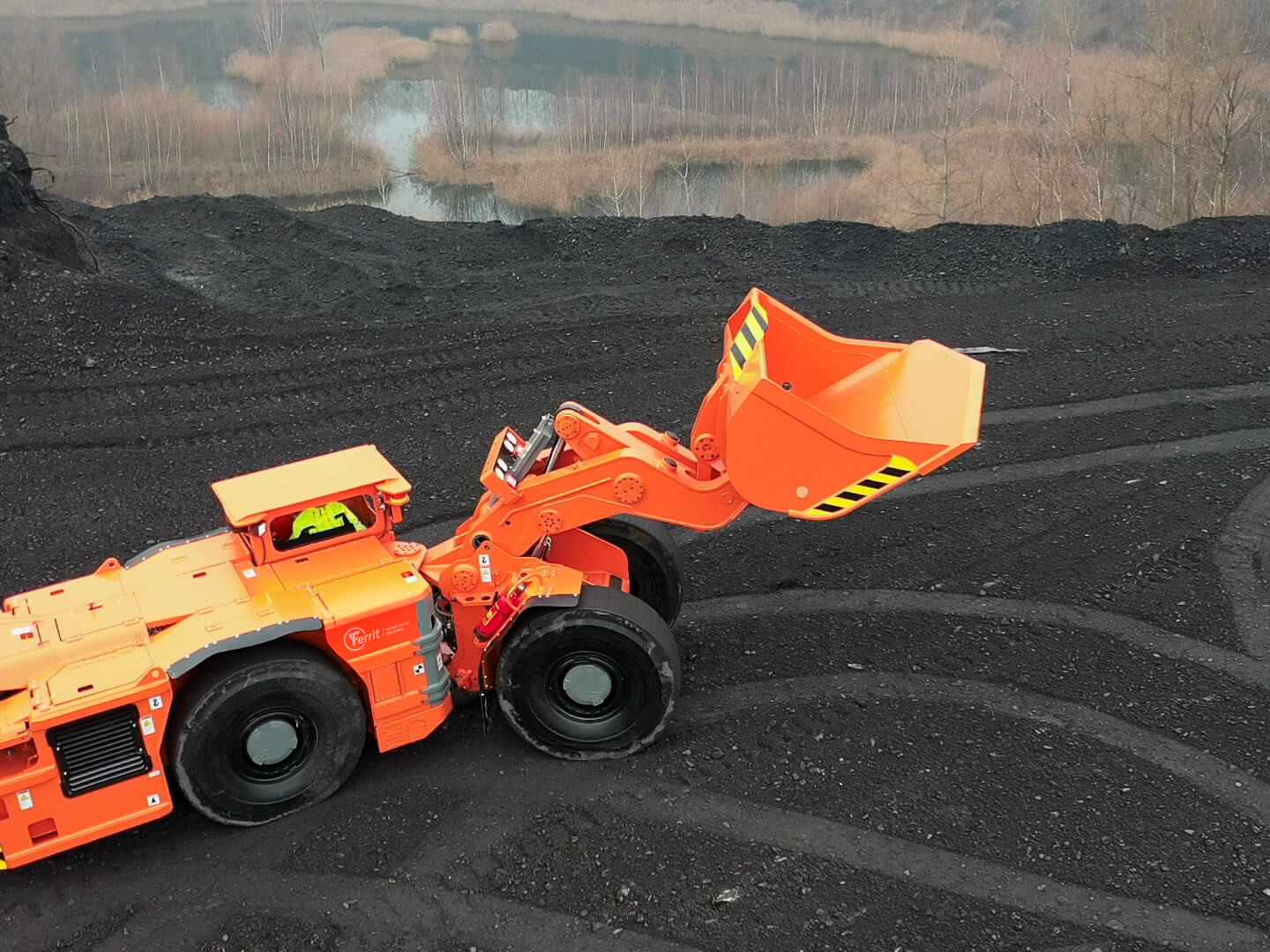

The LHD (Load, Haul, Dump) loader is designed for loading and moving bulk materials to nearby areas found in low-profile underground mines and large underground operations, such as in founding, mining and tunneling in the construction industry. Bucket size determines the transport volume, and therefore, capacity of the loader.

Movement of the loader is ensured by a pair of axles (front, rear) driven by cardan shafts via a gearbox and a hydrodynamic torque converter, which are driven by a diesel combustion engine. The rear axle swings vertically.

Features:

  • Bucket Vibration allows for easier and more complete emptying of bucket loads
  • Engine Brake and Lock Up System (locking hydrodynamic clutch) extends brake service life by adding to braking efficiency when traveling downhill
  • Downhill Driving Assistant increases safety and shortens transport time by automatically ensuring required speeds are maintained on declines
  • Autonomous Fire Extinguishing System ensures further safety by automatically detecting excessive temperatures or fires in designated areas of the loader and activating an on-board fire extinguisher
  • Elevated Battery helps extend machine service life by preventing water from entering the battery that could damage it or the loader's electrical system.

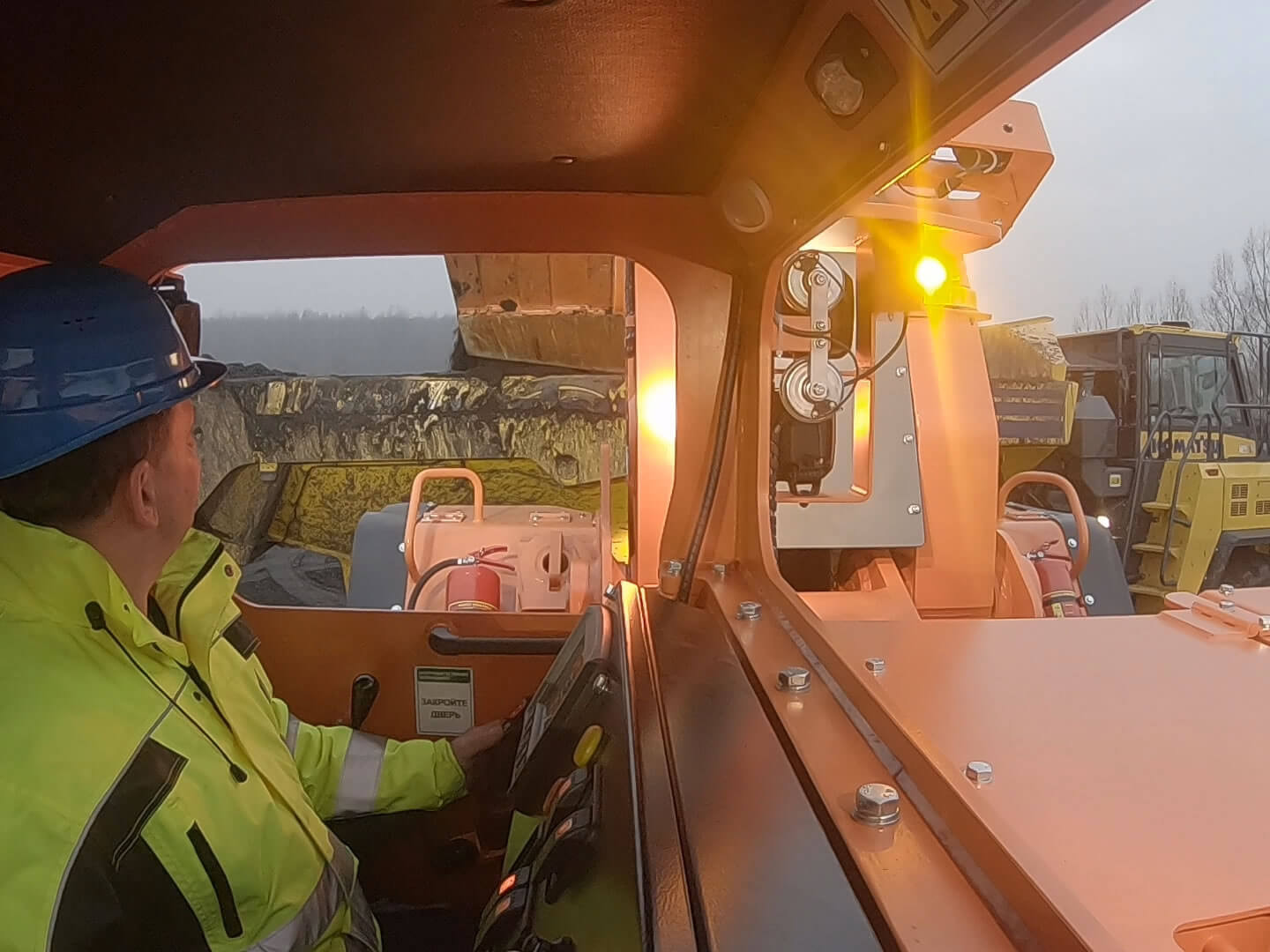

  • ROPS / FOPS Cab* has been designed and certified as a ROPS / FOPS protection structure for ensuring operator safety
  • Kickdown shortens work cycles by allowing faster Y-cycle execution during loading
  • Automatic Lubrication System increases loader service life by automatically lubricating key areas at selected intervals
  • Measuring Bar shortens service intervals by monitoring and displaying hydraulic pressure in different areas of the loader in one central location

Optional Equipment:

  • Enclosed cab design
  • Air conditioning and heating
  • Radio with USB
  • Onboard Hydraulic Tank Filling Pump (24v) powered directly by the loader
  • "MUR-T" Mobile Registration Device for registering machines/workers in the positioning system

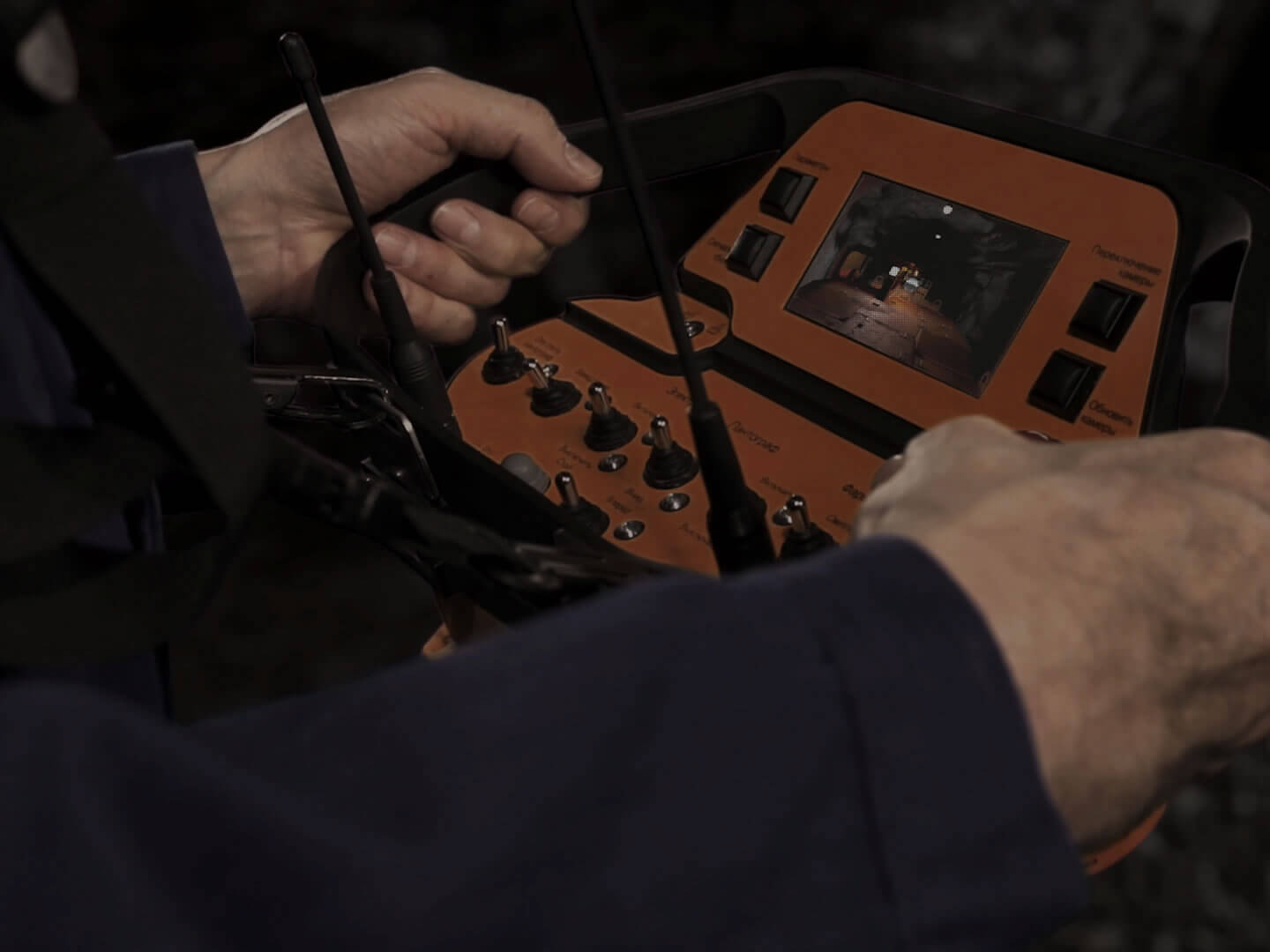

  • Remote control with image transmission
  • Radiator stop for pausing radiator fans on demand to prevent damage, e.g. in sections with excessive amounts of water, etc.
  • Camera system
  • Autonomous machine control system-ready

Technical parameters

bucket capacity:
10 000 ±2 % kg
dimension (L-W-H):
9,76 x 2,58 x 2,42 m
inner turning radius:
3 285 mm
outer turning radius:
6 480 mm
weight (operating):
30 100 ±5 % kg
engine power:
239 kW

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
