DLZ130F

Suspended Mining Locomotive

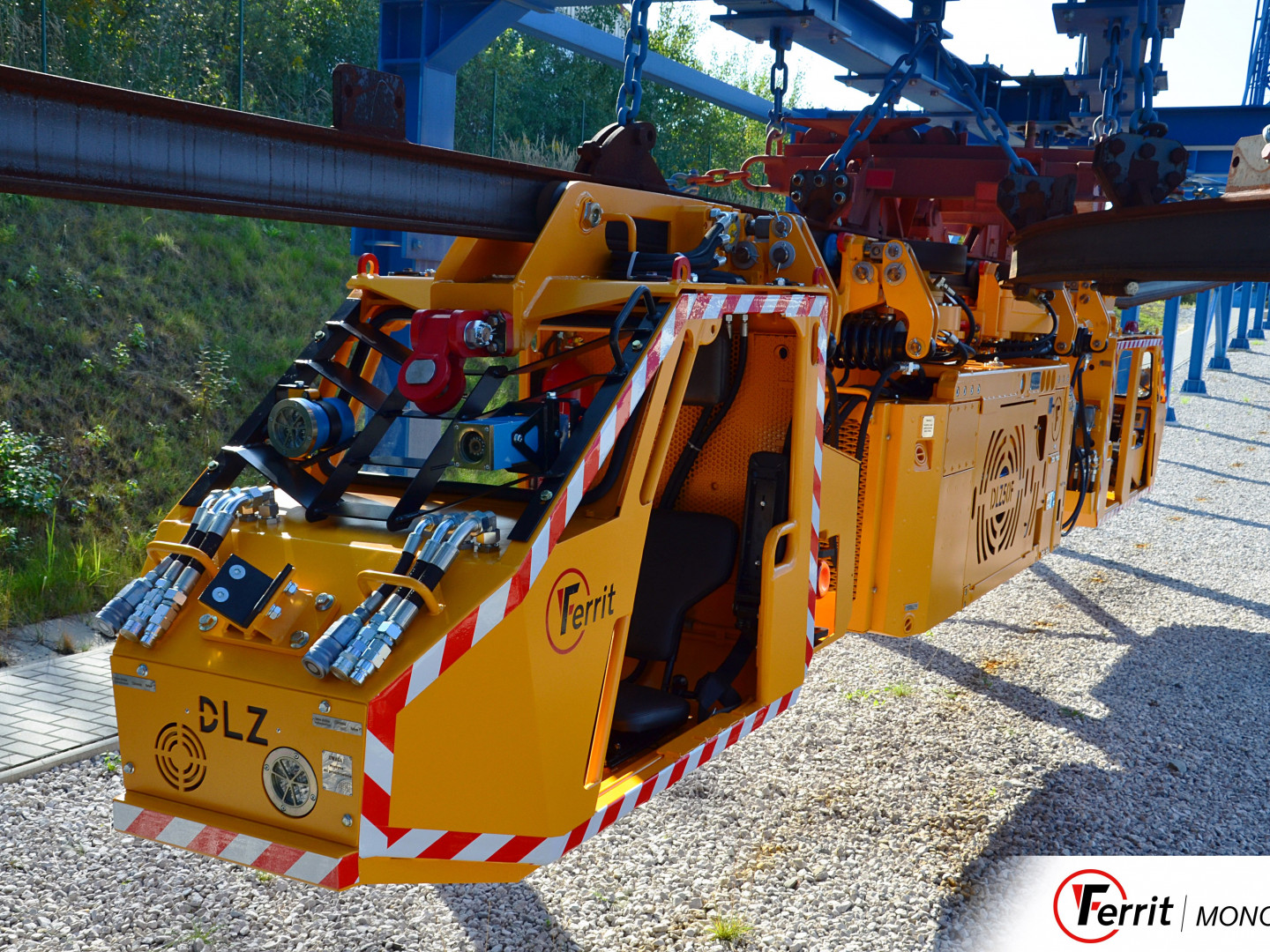

The DLZ130F is our most powerful autonomous monorail locomotive designed for transport of train sets on horizontal or inclined (up to ± 30°) suspended monorail tracks in underground mines and on the surface.

Construction:

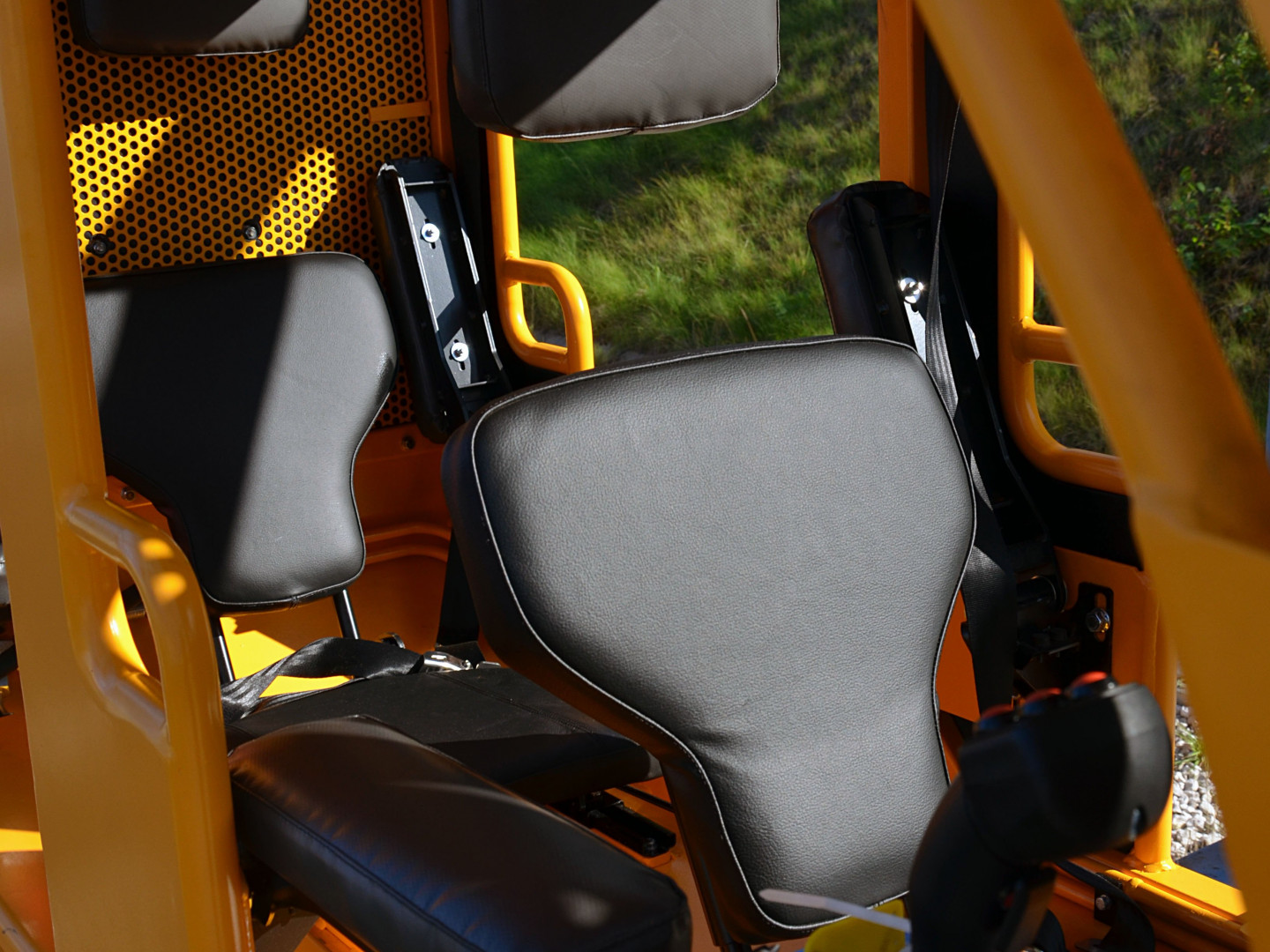

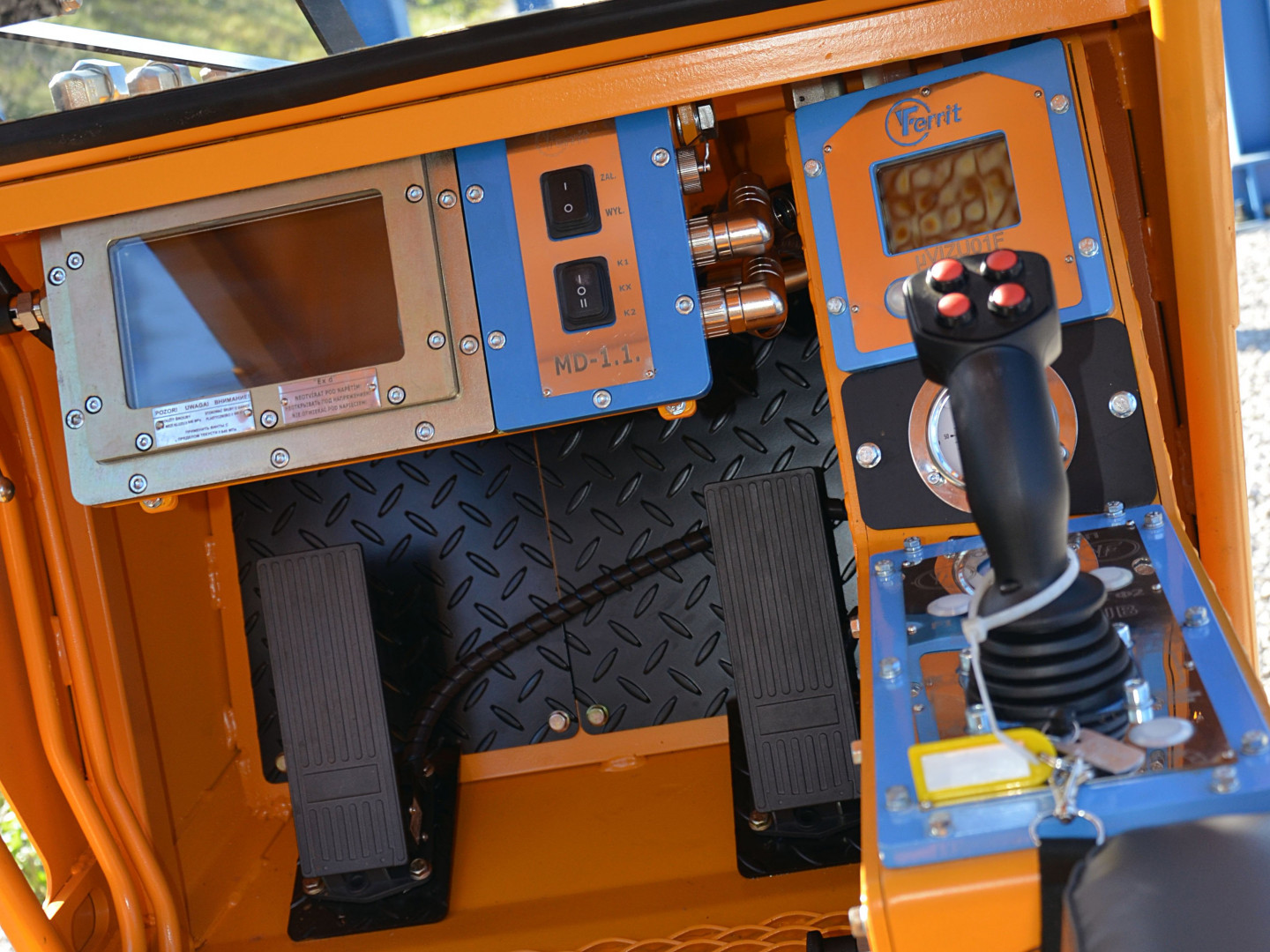

  • Two individual drivers´ cabins
  • Engine section
  • Driving units
  • Special rods interconnect all sections

Features:

  • Best price/performance ratio
  • Available with four to eight drive units
  • The fastest locomotive in the HS (high speed) version
  • Suitable for transporting large volumes of material or personnel

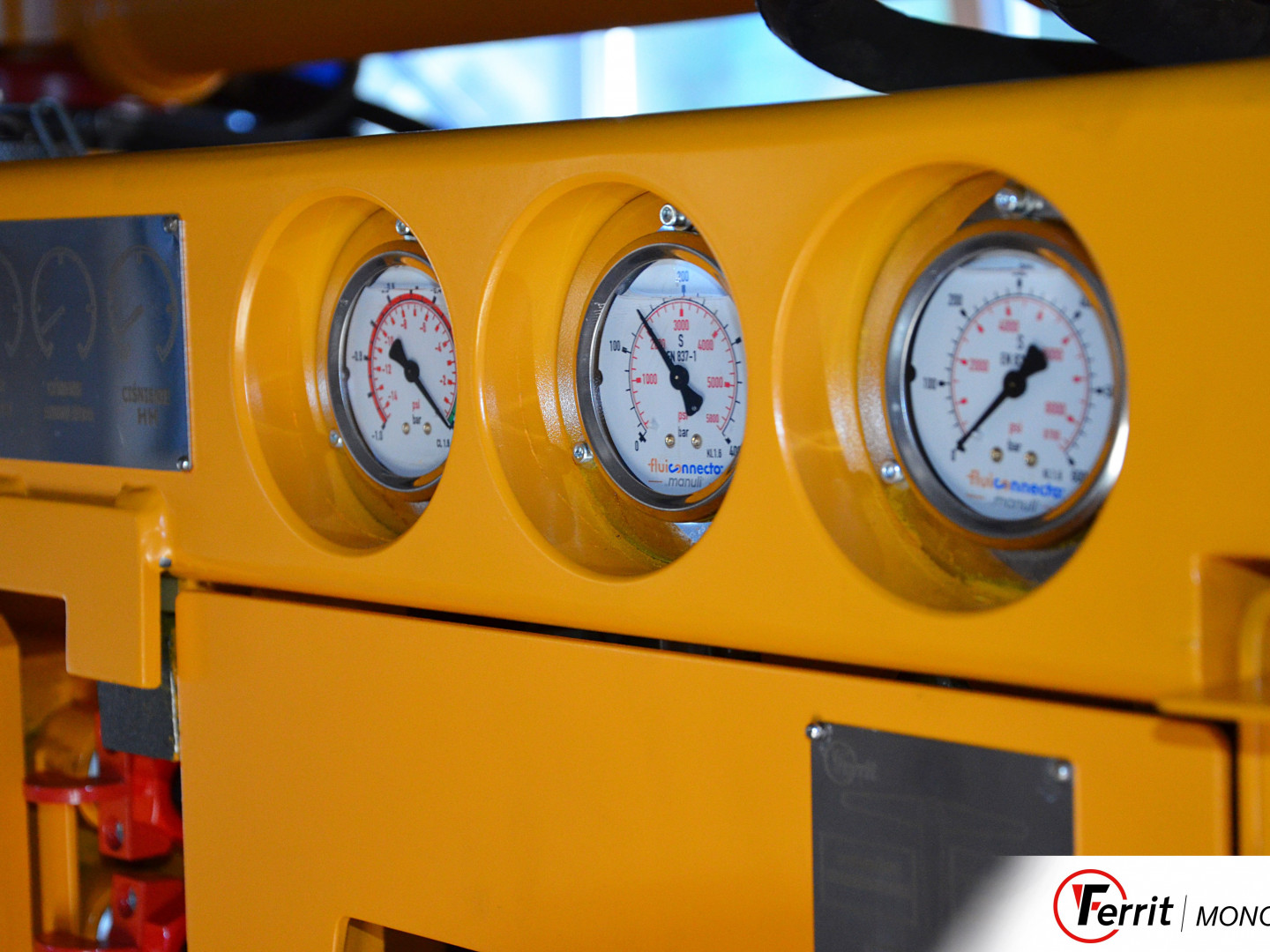

  • Onboard monitoring and diagnostics of locomotive parameters, i.e. temperatures, level and pressure of operating fluids, locomotive speed, etc.

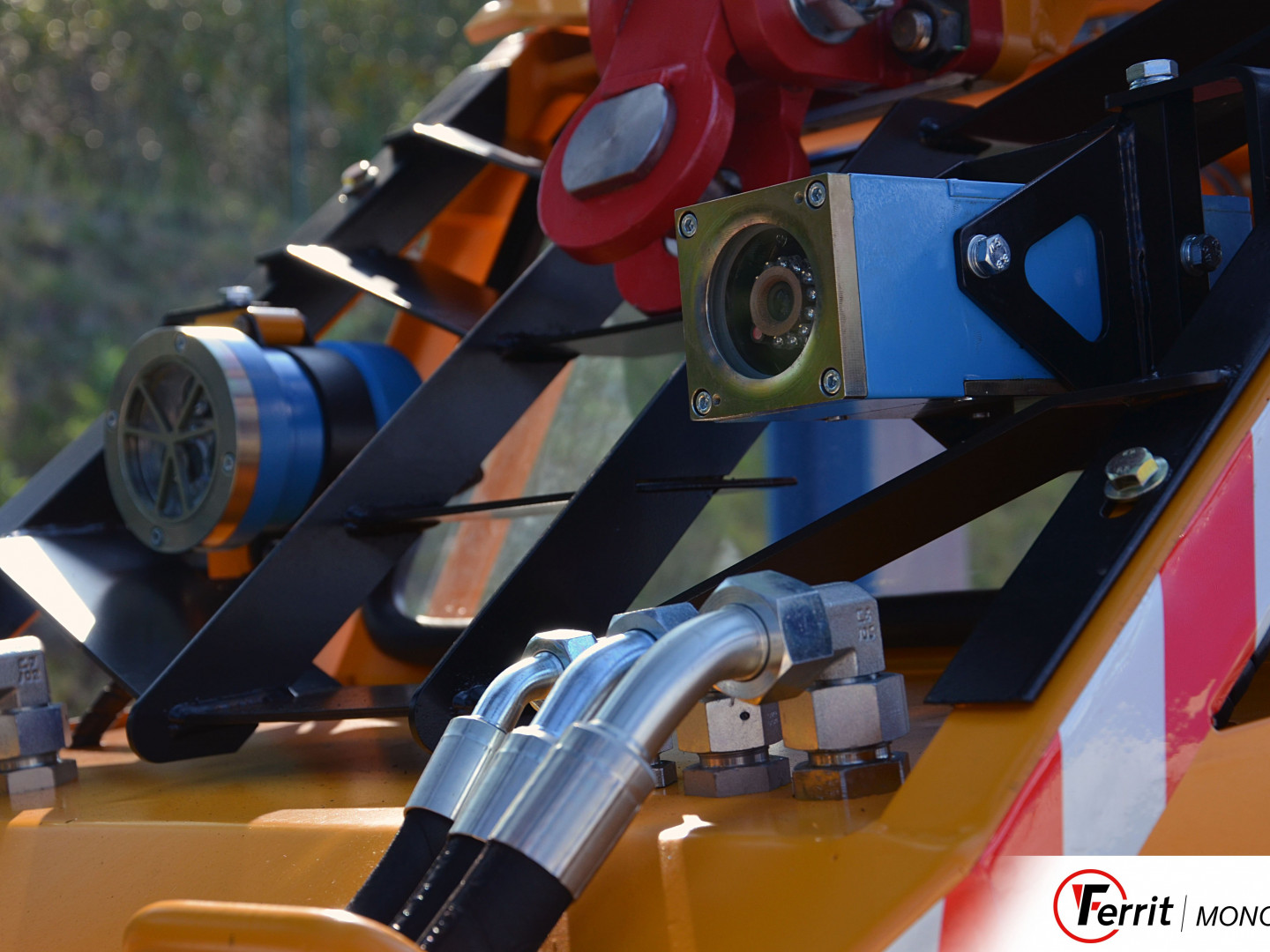

  • Optional camera system available for a comprehensive overview of all areas around the machine
DLZ130F

Technical parameters

engine power:
100 kW
number of drive units:
4 - 10
max. speed:
7,2 km/h
max. traction force:
250 kN

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
