DLZA90F

Suspended Battery Locomotive

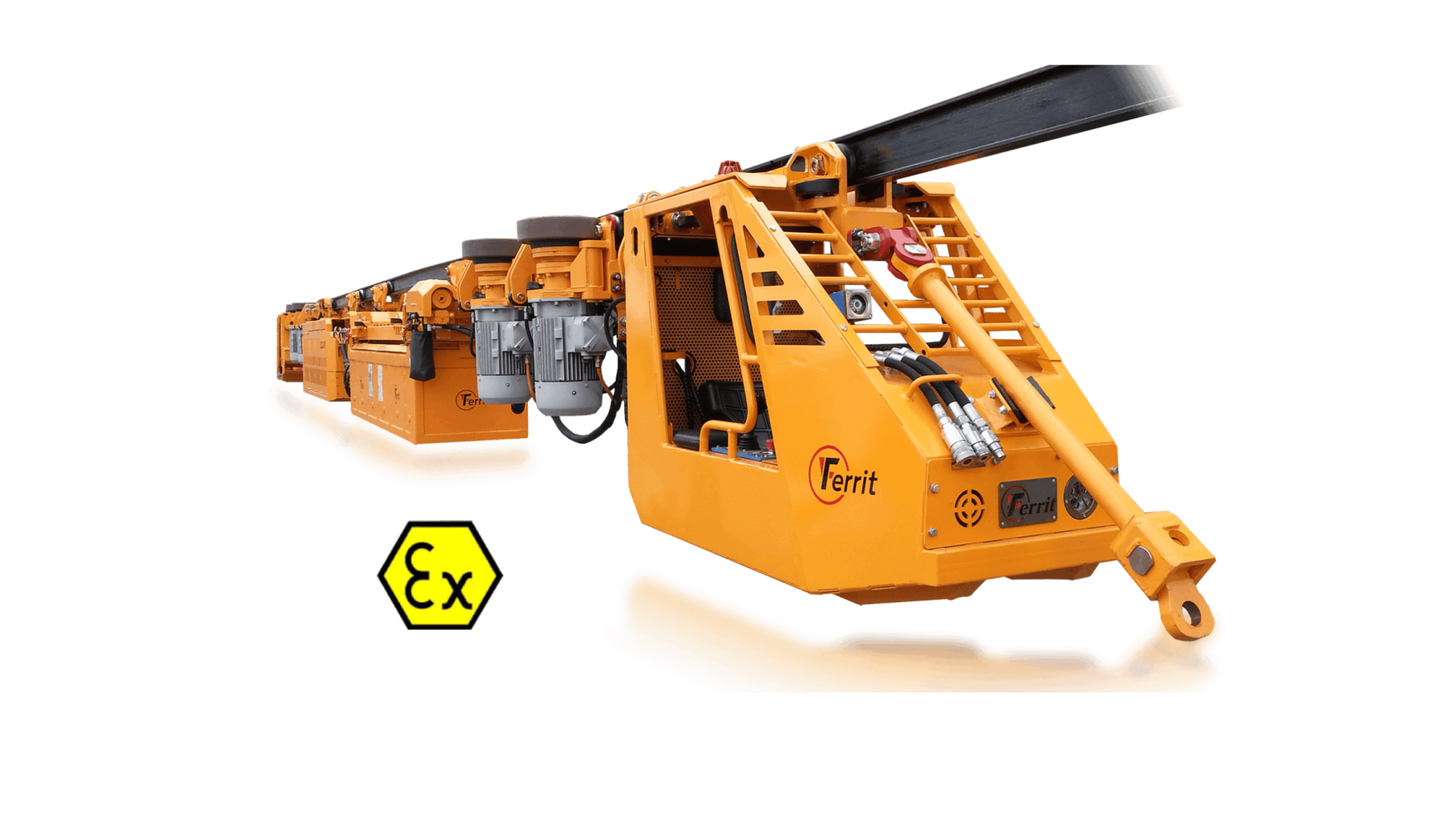

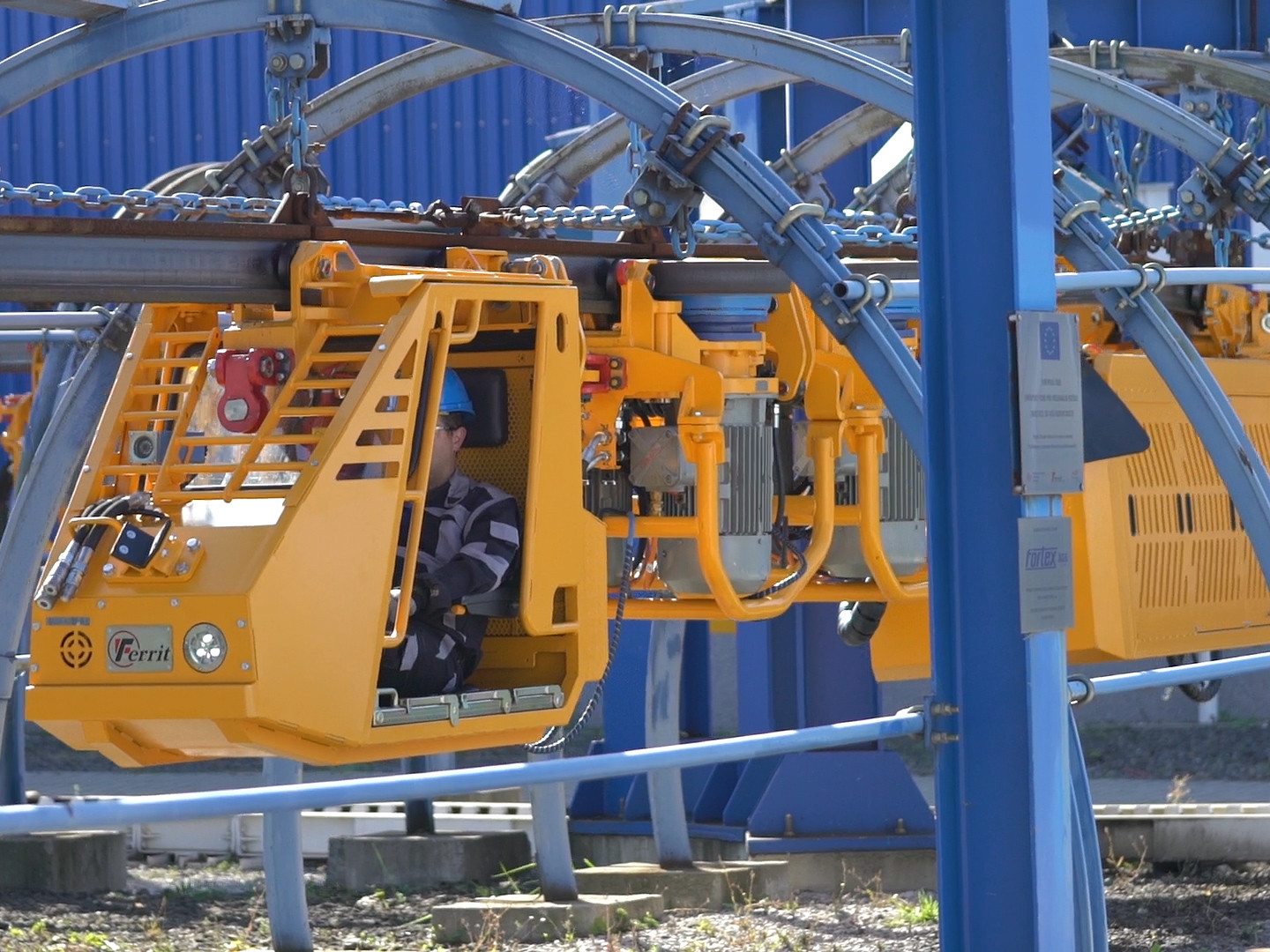

The battery-operated DLZA90F suspended monorail mining locomotive is autonomous traction equipment for the transport of train sets on suspended monorail tracks in underground mines and on the surface. They operate on horizontal planes and inclines of up to ± 30°.

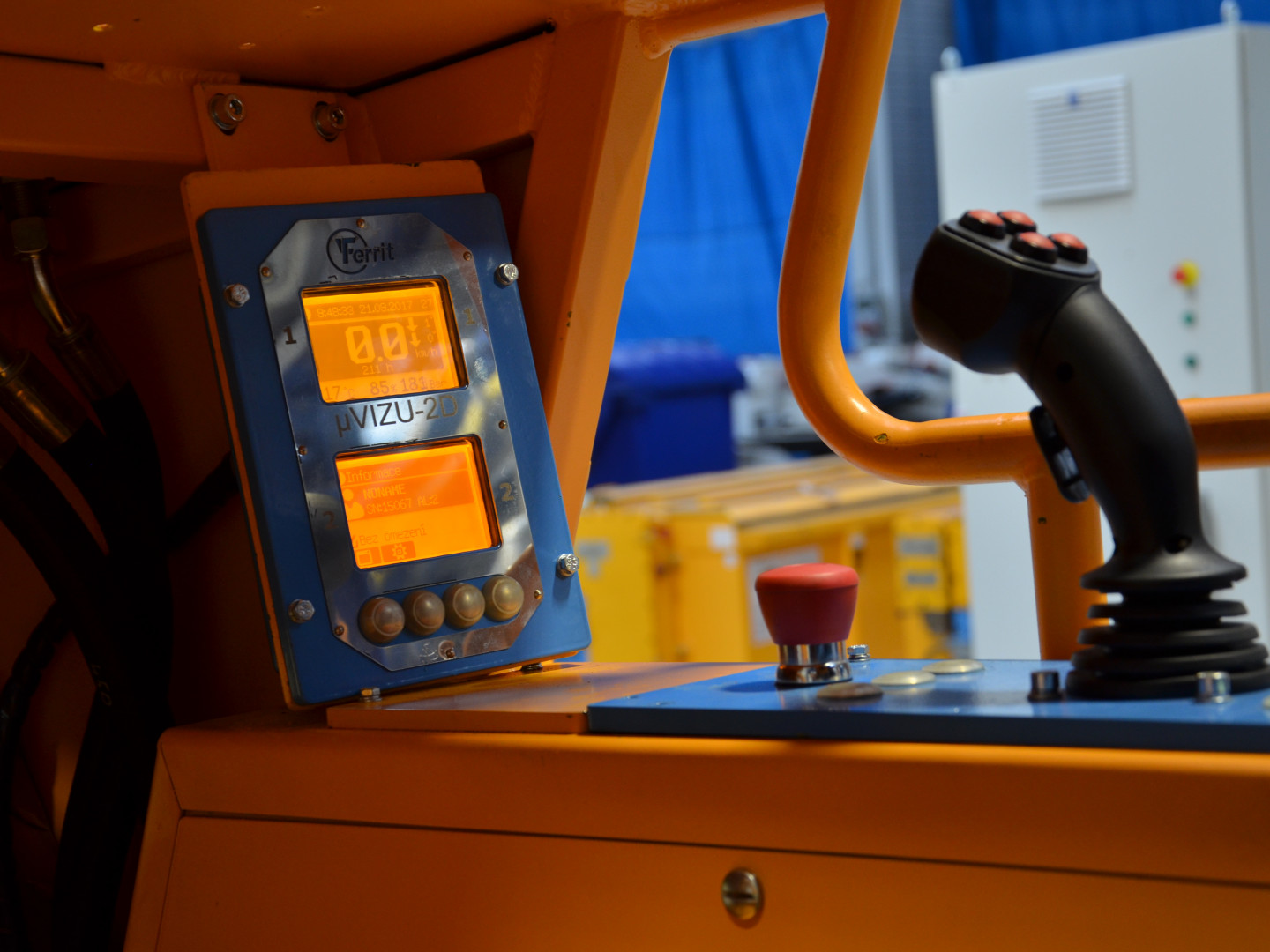

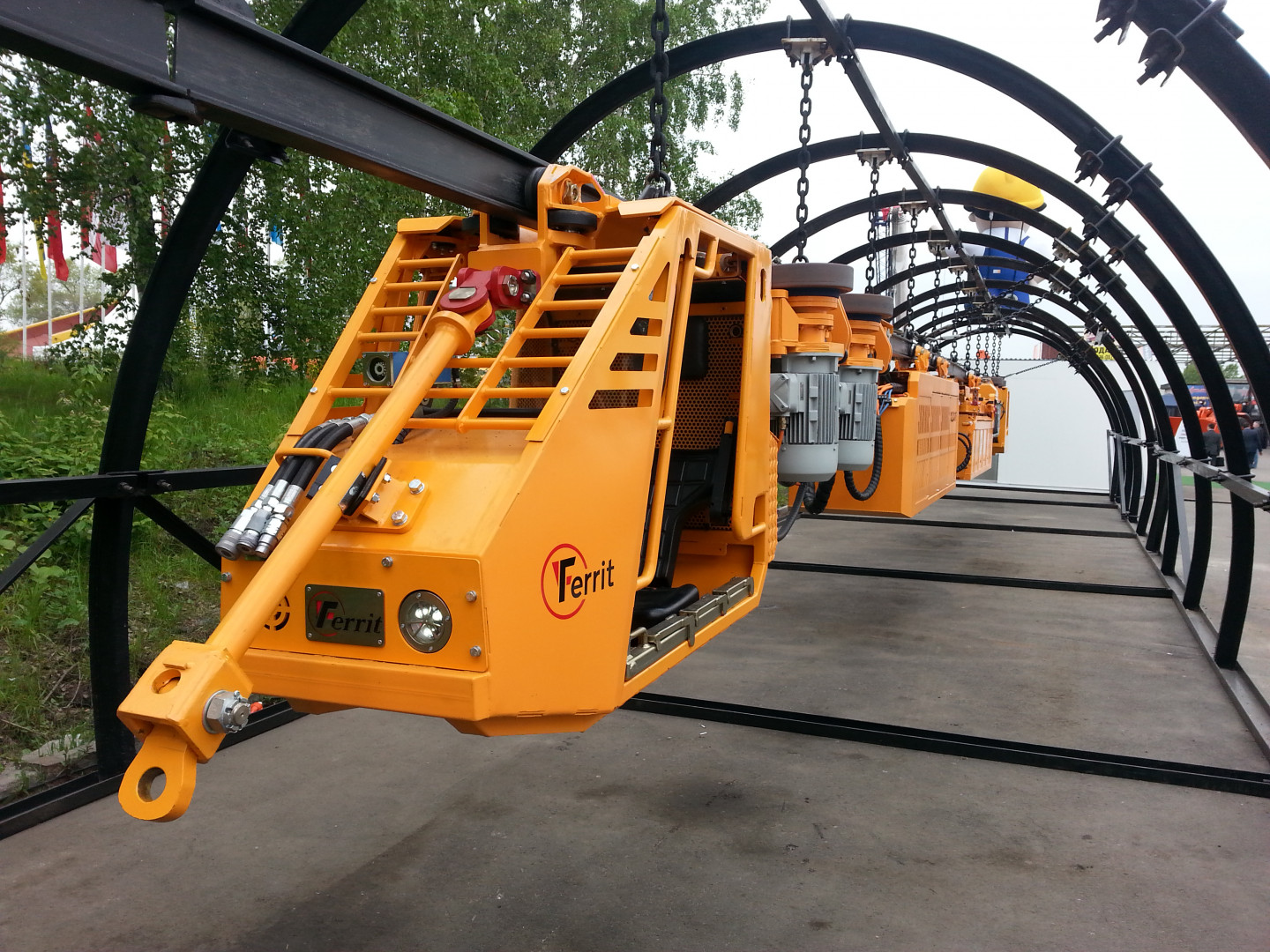

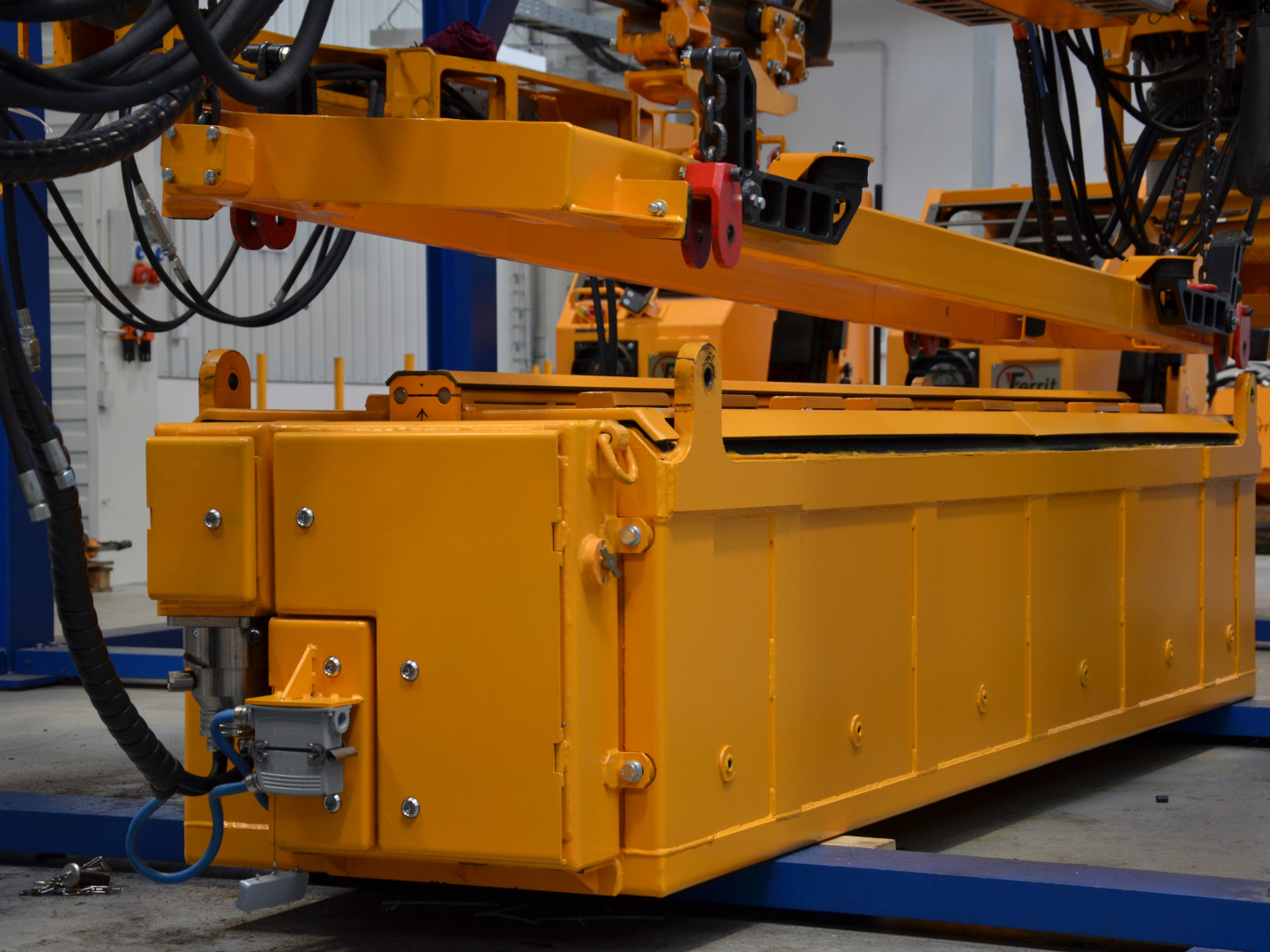

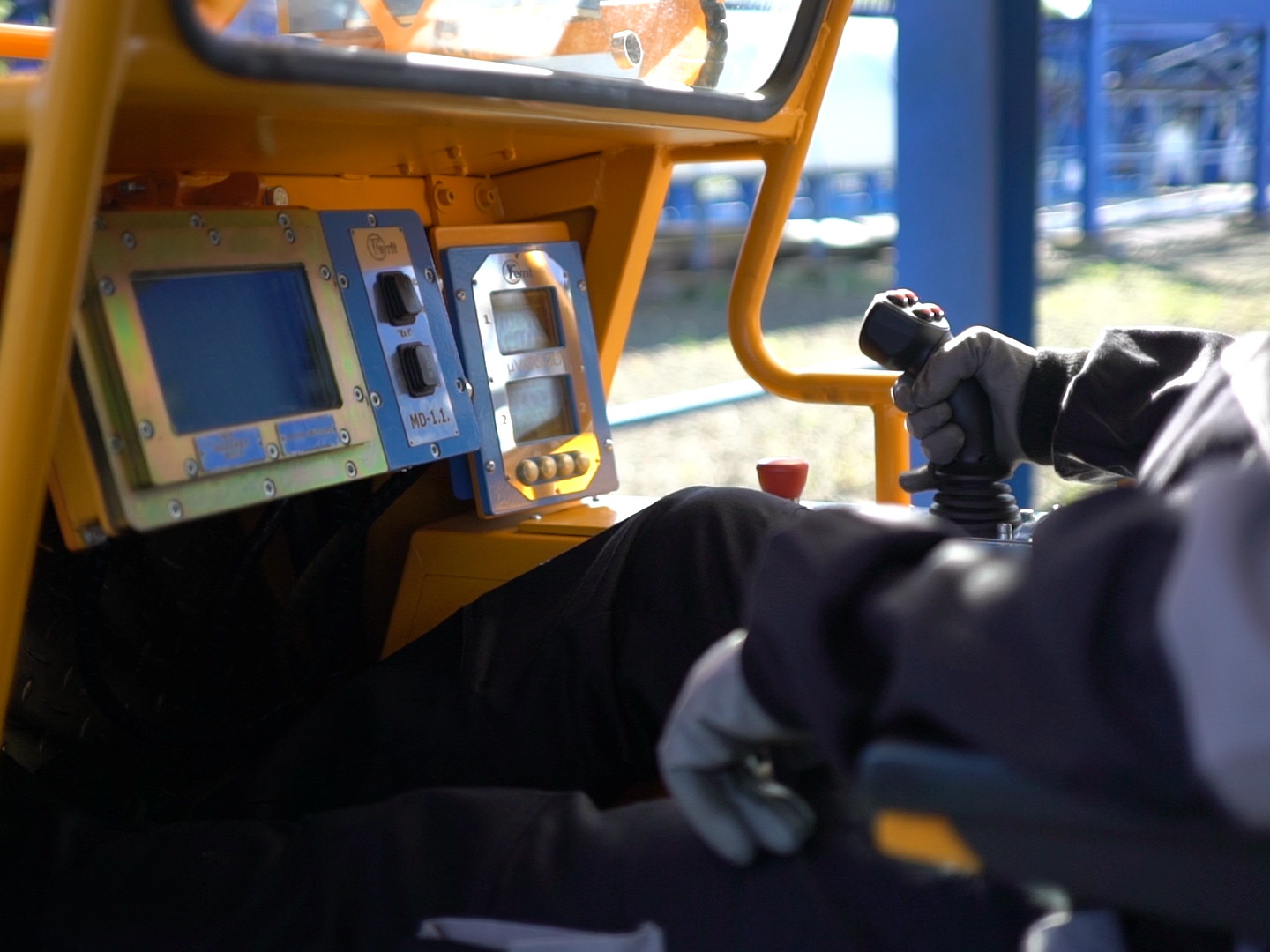

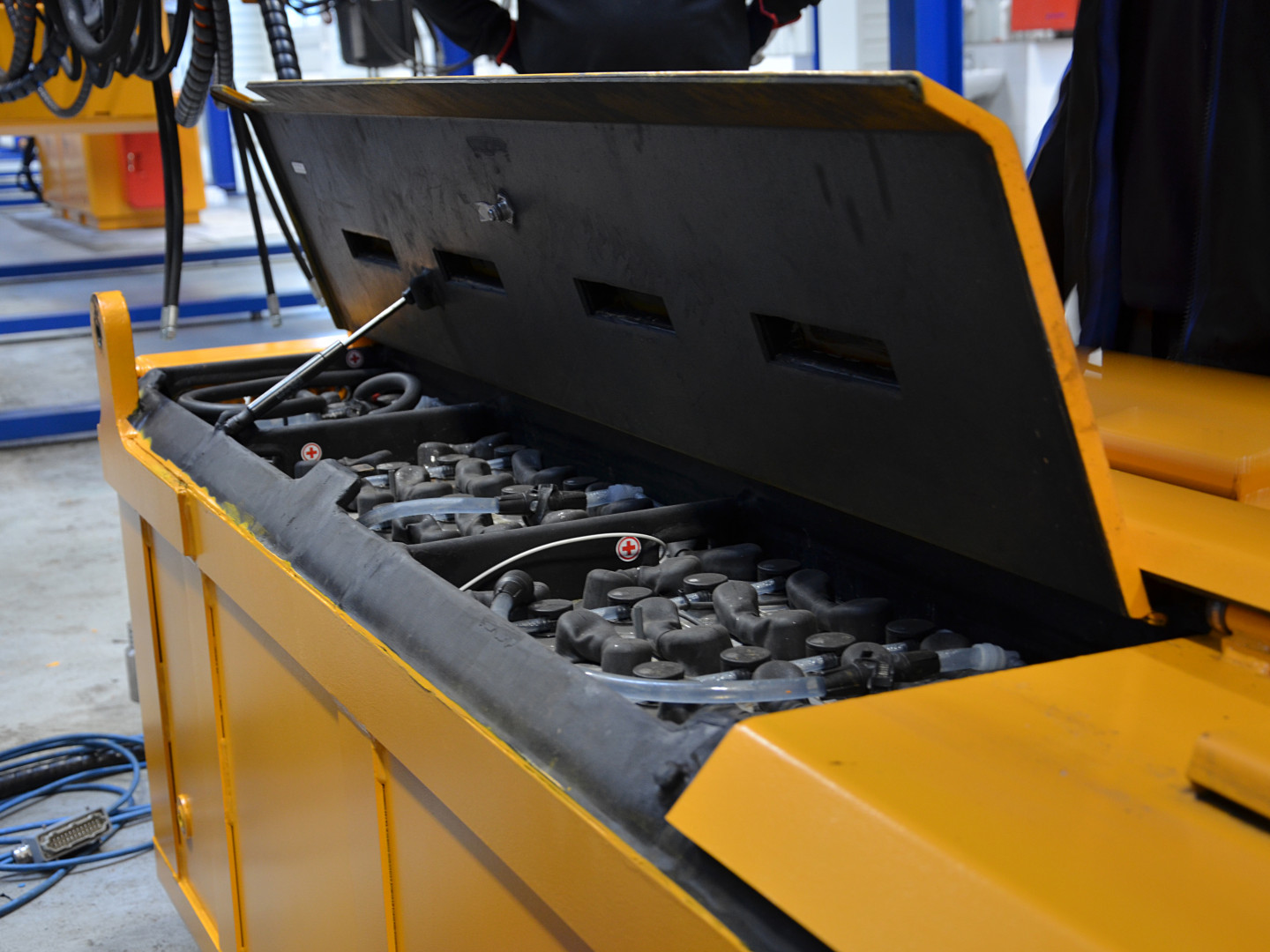

The locomotive consists of the following components: two individual drivers´ cabins, power source section suspended on TZH4/8F-ZA hydraulic transport equipment, auxiliary section and two to six driving units. All are interconnected by connecting rods. Additional types of various equipment can be connected between the drivers´ cabins and power source section, an eventually, the auxiliary section.

DLZA90F

Technical parameters

engine power:
8 x 7,5 kW
number of drive units:
4
max. speed:
7,2 km/h
max. traction force:
120 kN

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
