NZD600/900

Ground Rack Track

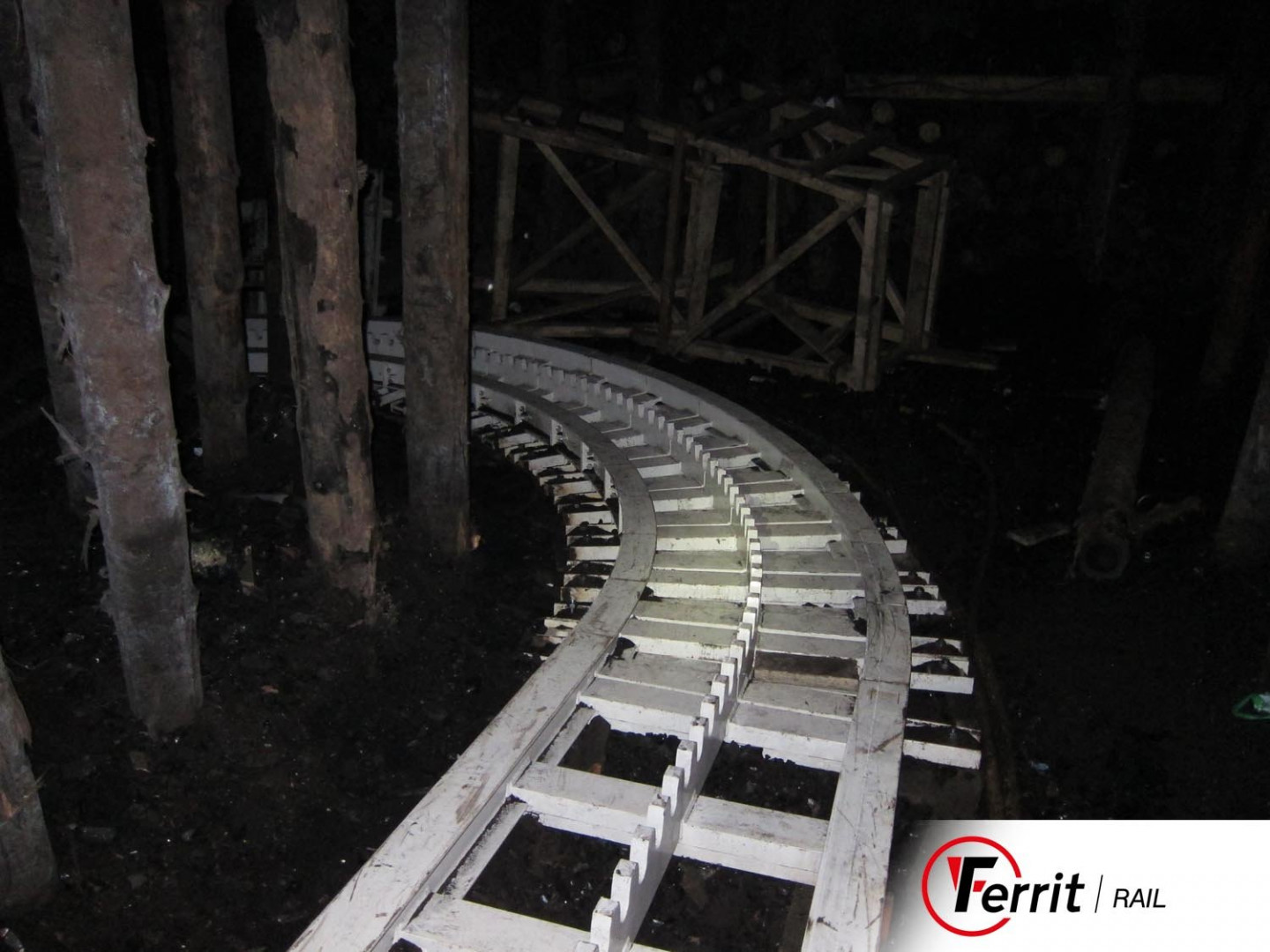

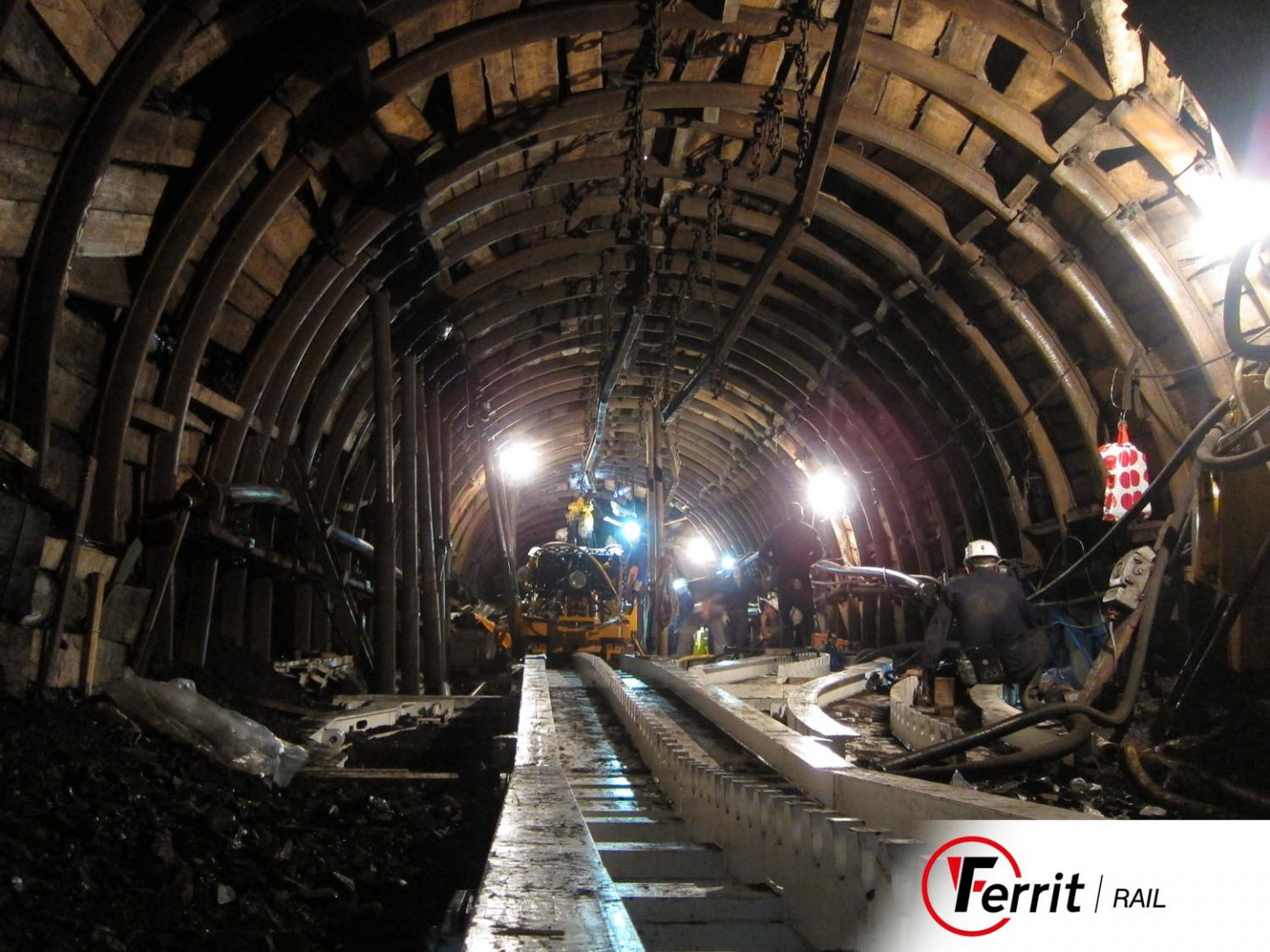

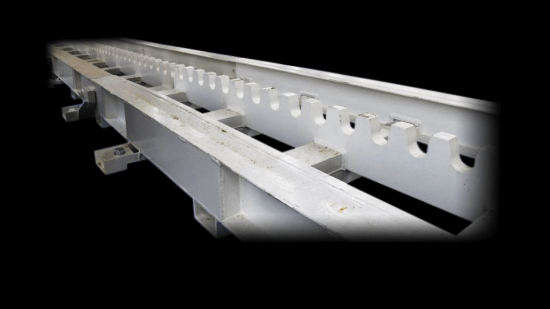

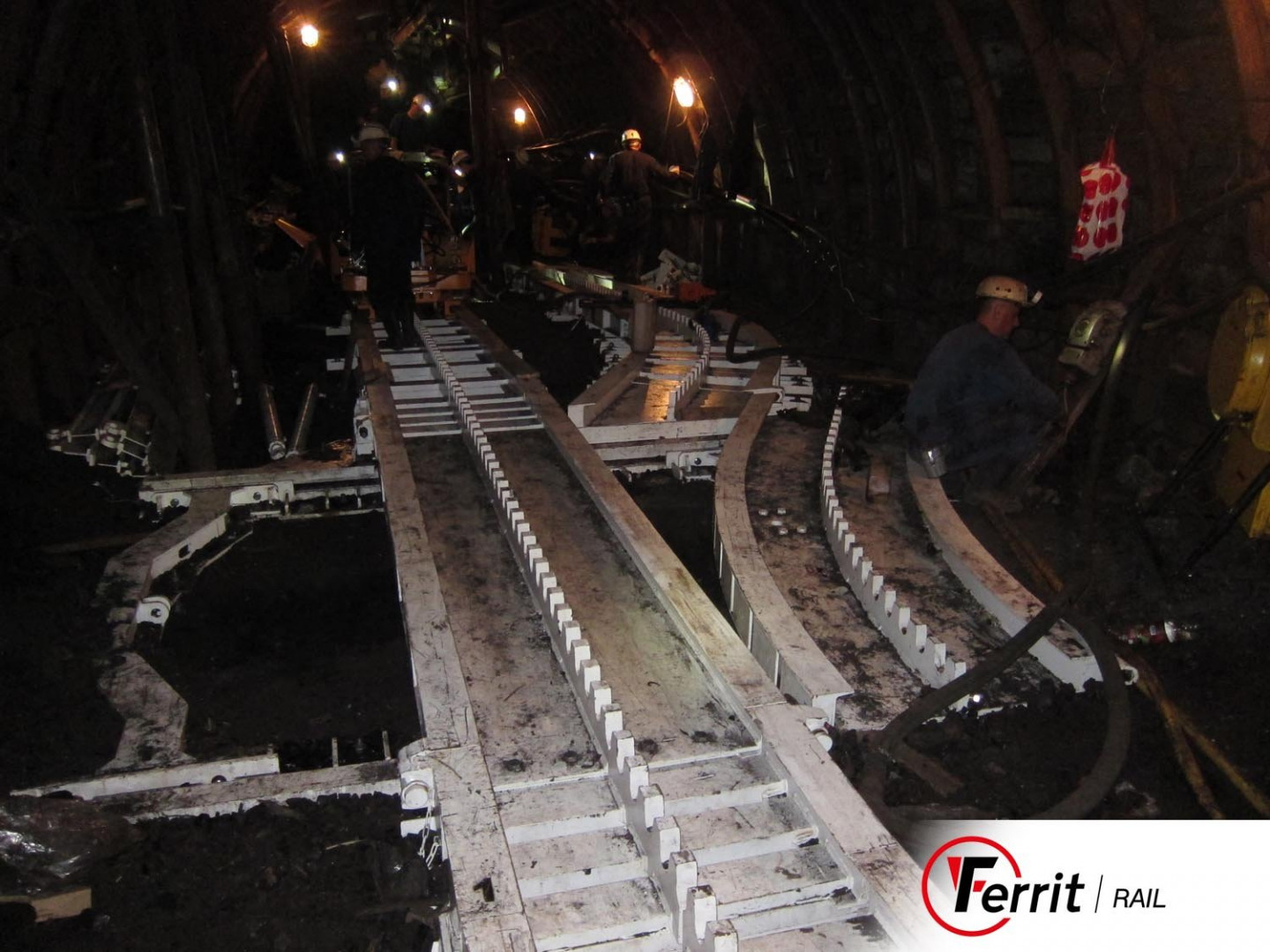

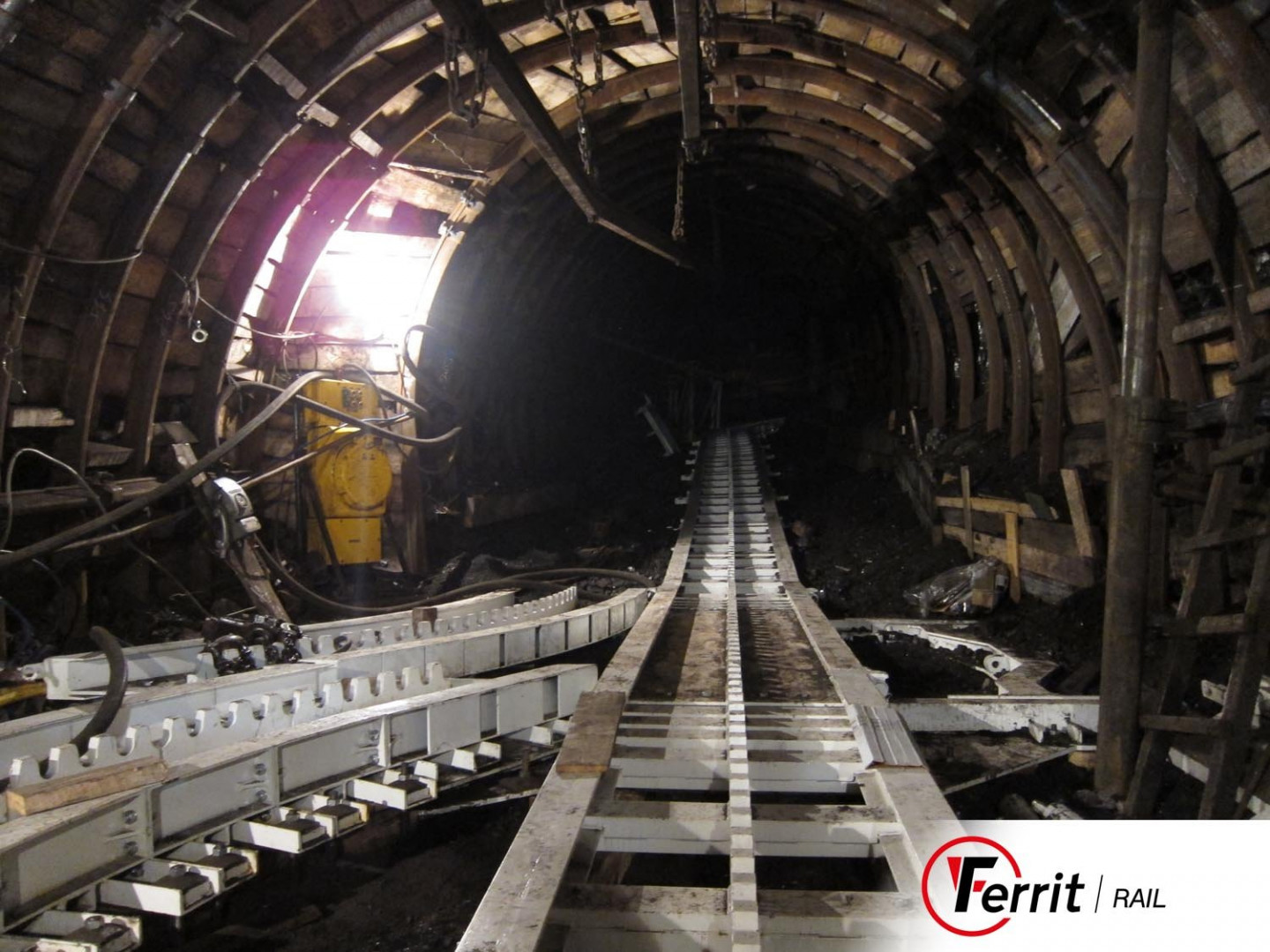

The NZD600/900 rack track is designed for the transport of heavy material, such as parts of shearers, drag conveyors, mechanized shield supports and other very heavy materials. The rail (U profile) secures the transport equipment against derailment and rollover. The vertical track gradient can reach up to 30°, transverse 10°.

NZD600/900

Technical parameters

max. track inclination:
± 30 °
track gauge:
600, 650, 900 mm
horizontal curve radius:
4 m
vertical curve radius:
22 m

*The stated technical data are only informative and can be modified according to the customer’s requirements. Contact our sales department for more information and a tailor-made solution.
