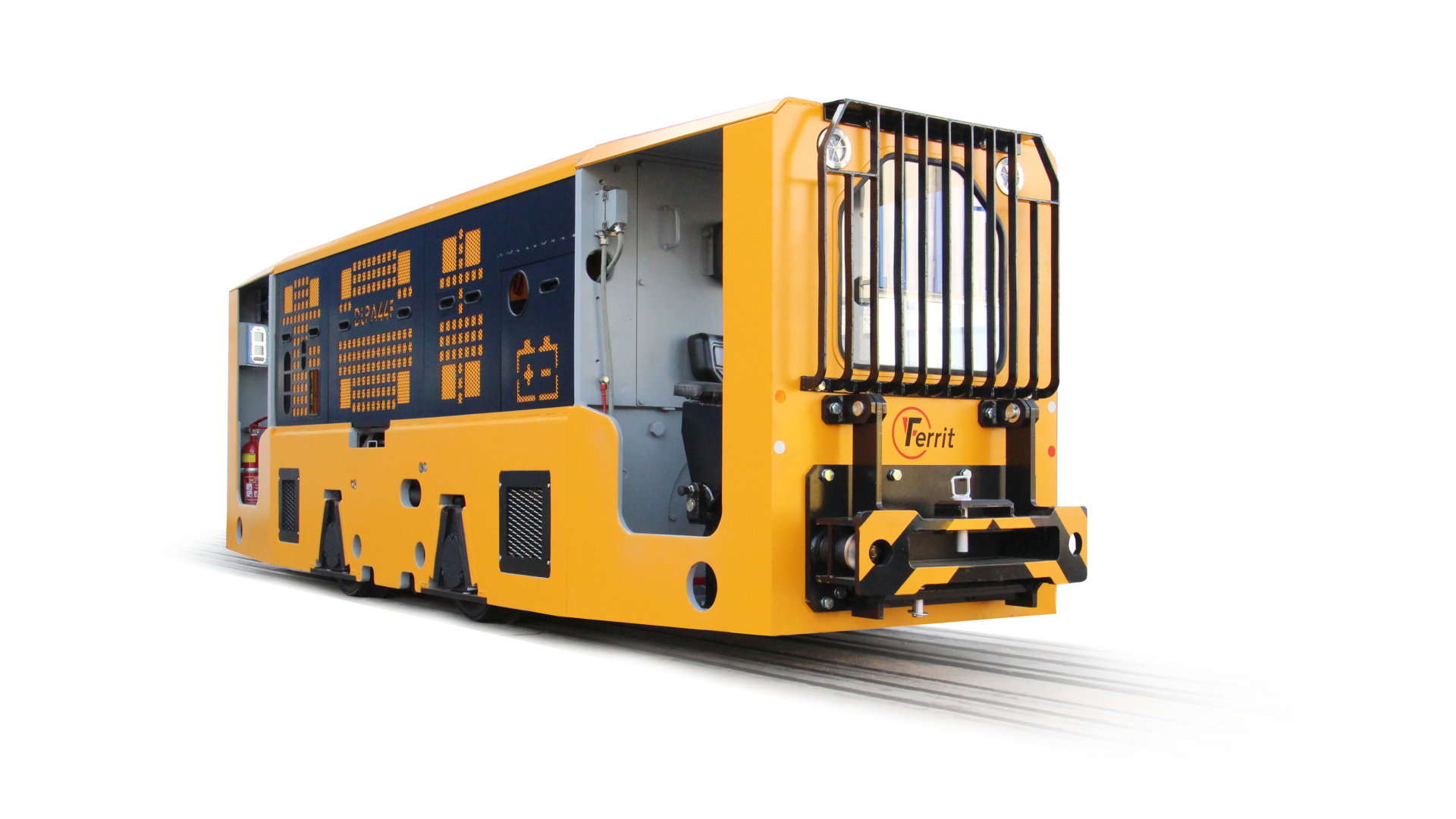

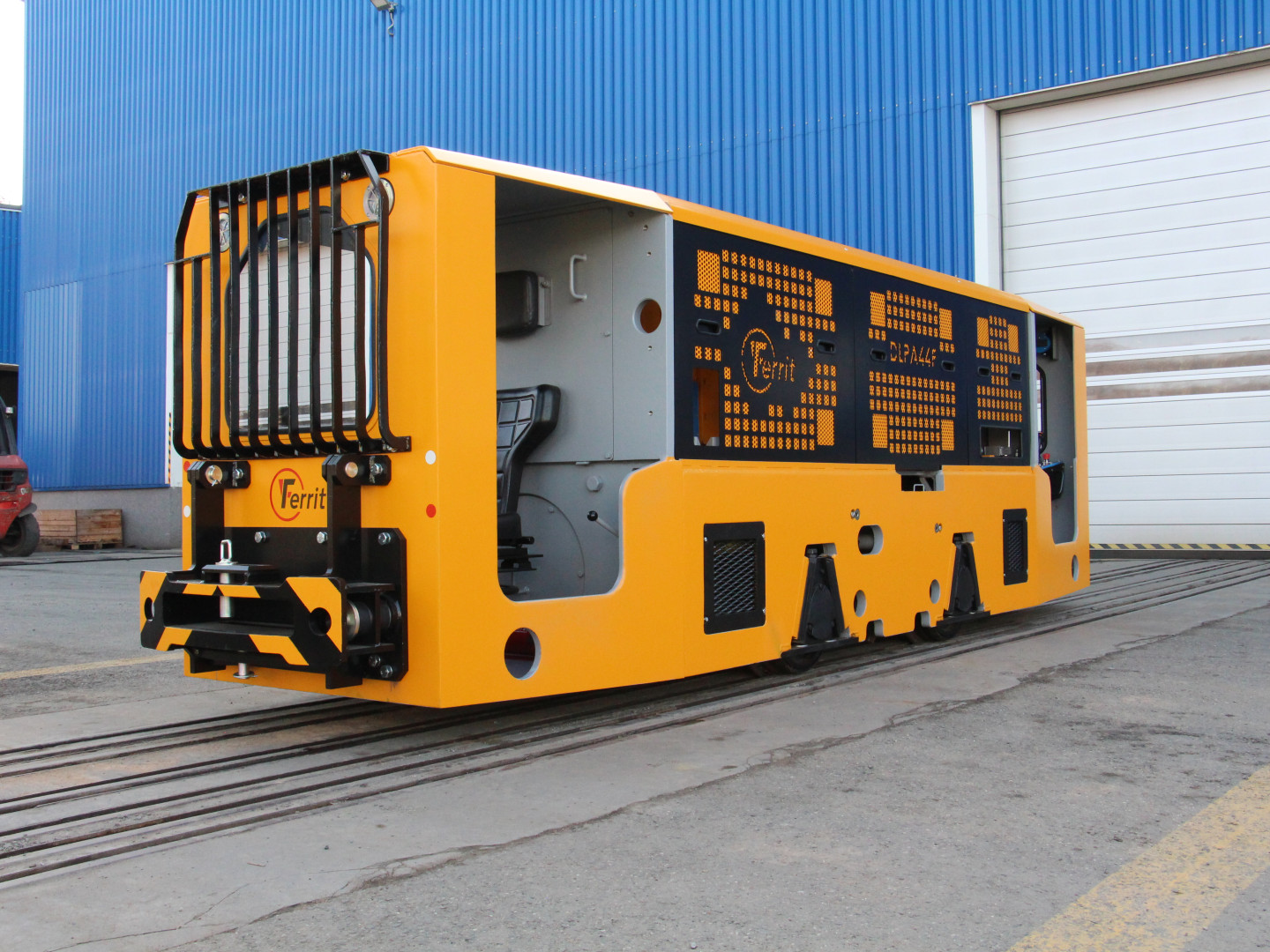

DLPA44F

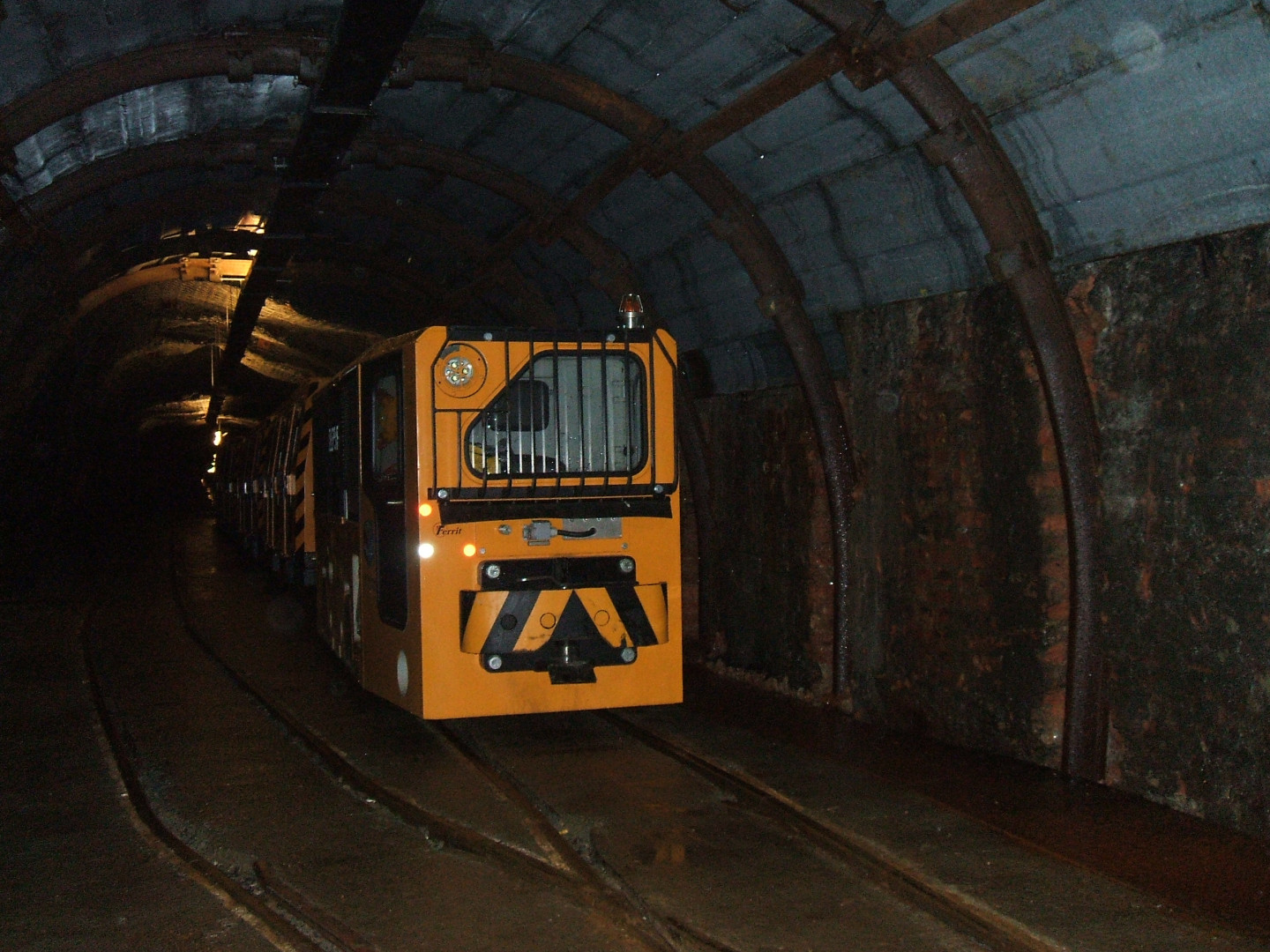

The surface ground battery locomotive DLPA44F is designed for material or personal transport on 550 – 900 mm gauge rail tracks at gradients of up to ± 35‰.

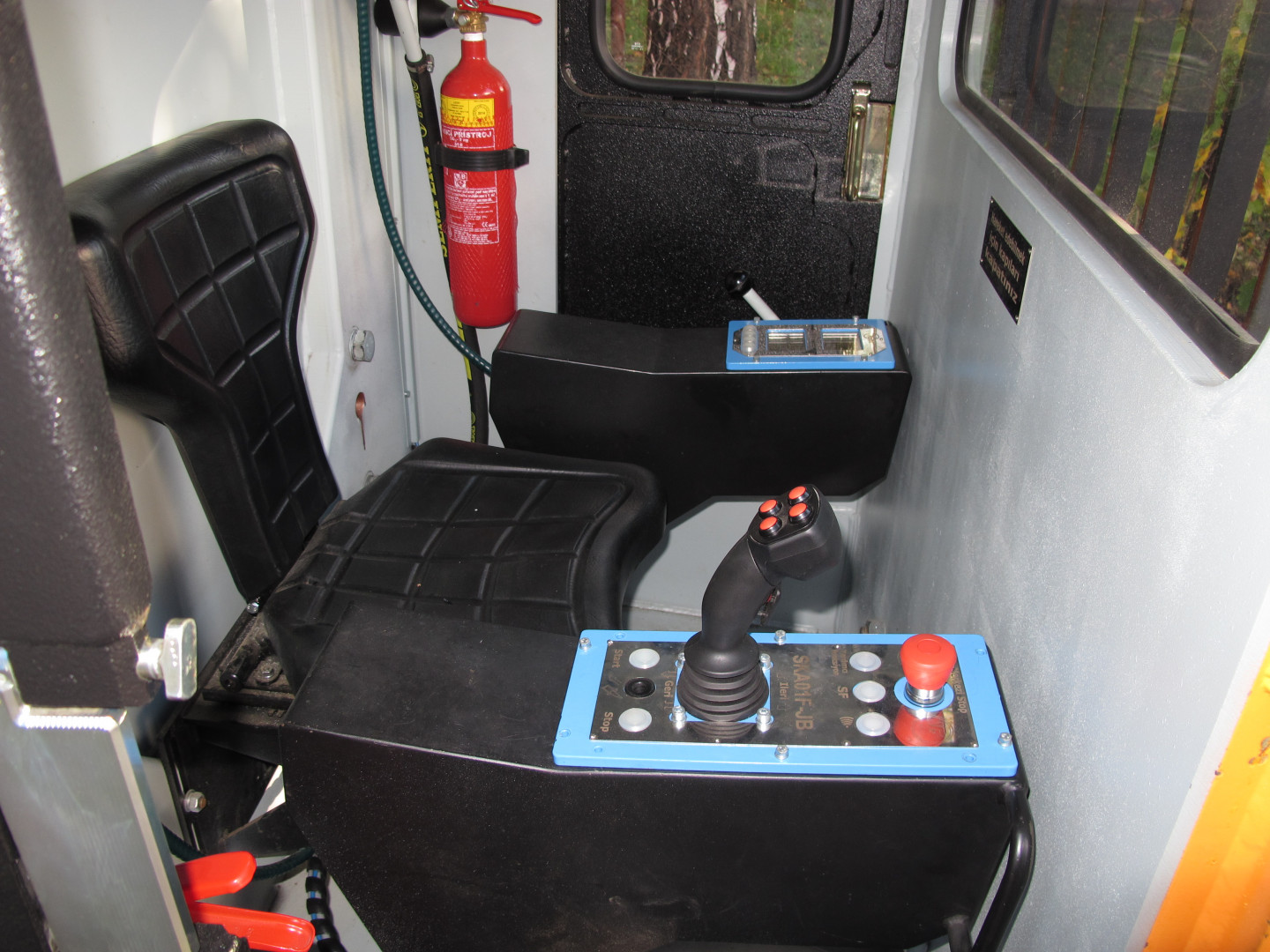

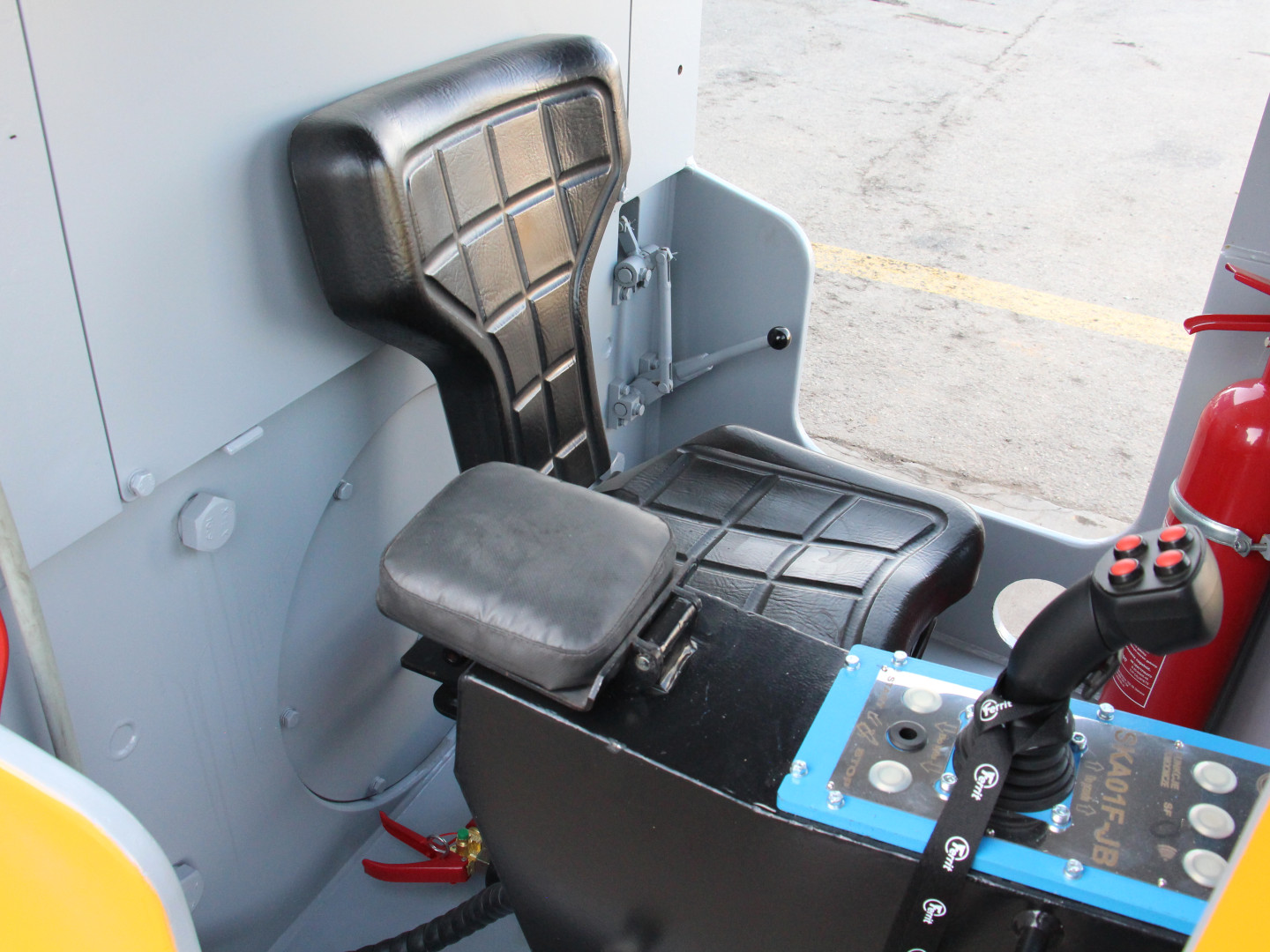

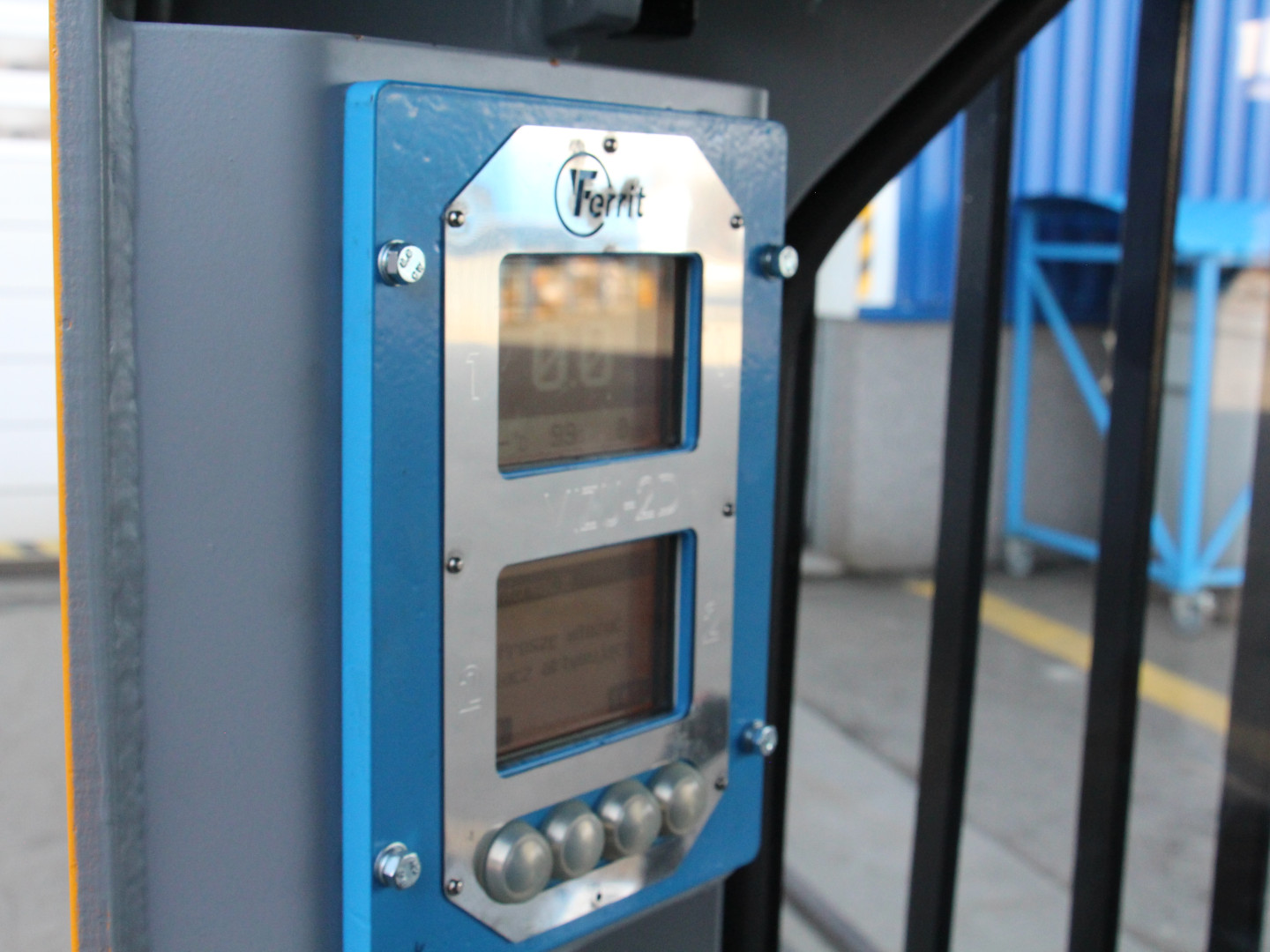

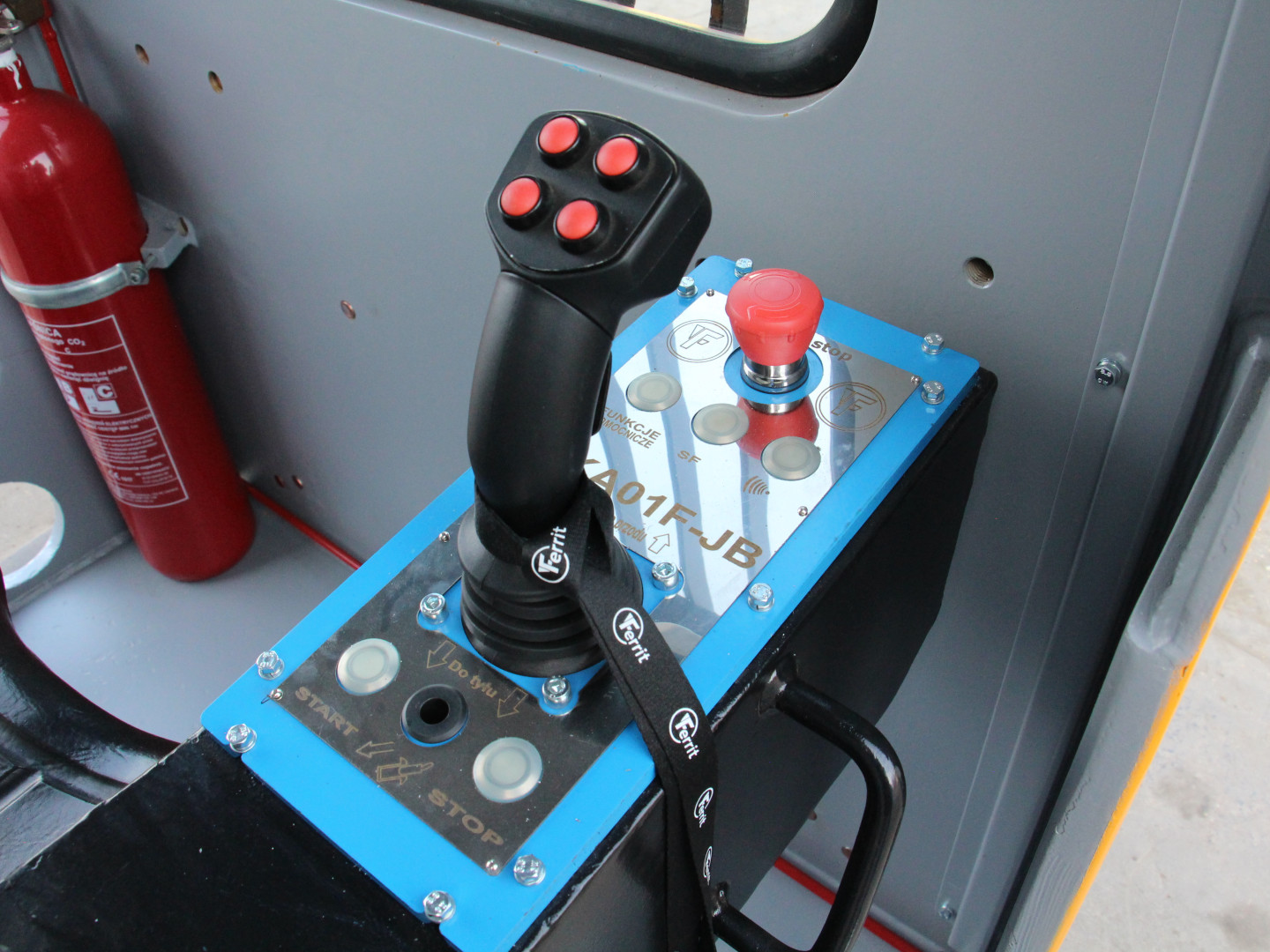

The locomotive is separable into three main assemblies in order to facilitate its transport to site. The locomotive is controlled from cabins, which are equipped with control, monitoring and safety elements and appliances used for safe control thereof. The cabin design provides a good operator’s view of the track and reliable protection against injury and adverse external conditions.

Specification
Power: 44 kW (2 x 22 kW)
Max. traction force: 22 kN
Speed: 0 - 20 km/h
Gauge: 550, 600, 620, 750, 900 mm
Total weight: 10,7 t
Max. track inclination: 35 ‰
Expected battery life on a single charge: 8 h
